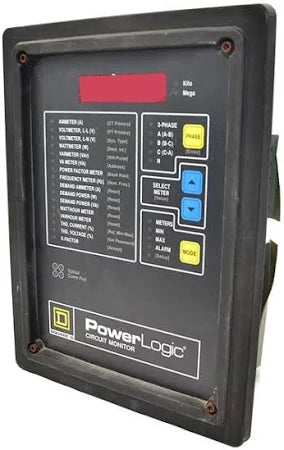

3020-CM-2250 | Schneider Electric Type CM-2250 Circuit Monitor
3020-CM-2250 | Schneider Electric Type CM-2250 Circuit Monitor

3020-CM-2250 | Schneider Electric Type CM-2250 Circuit Monitor

Part #: 3020-CM-2250 Manufactured by: Schneider Electric
Regular price
$3,219.00
Sale price
$3,219.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Schneider Electric 3020-CM-2250 is a high-precision circuit monitor designed for industrial applications. It offers ad...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 3020-CM-2250
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
3020-CM-2250 | Schneider Electric Type CM-2250 Circuit Monitor
    3020-CM-2250 | Schneider Electric Type CM-2250 Circuit Monitor
3020-CM-2250 | Schneider Electric Type CM-2250 Circuit Monitor

Product Description P/N: 3020-CM-2250

Description / Specifications

Description


The Schneider Electric 3020-CM-2250 Circuit Monitor is an advanced metering device designed for comprehensive energy management in industrial settings. It provides high-precision monitoring, metering, and control of electrical systems, featuring a user-friendly interface and robust data logging for optimal system performance.



Technical Specifications


Feature

Description

Part #

3020/CM2250

Category

HMI / MMI / OIT

Subcategory

Operator Interface

Display

Six-digit LED screen

Accuracy

0.2%

Data Logging

Onboard data and event logging

Alarms

Setpoint-controlled alarm/relay functions

Firmware

Downloadable firmware

Waveform Capture

64 and 128 point capture capabilities



Information About 3020-CM-2250

The Schneider Electric 3020-CM-2250 is a high-precision circuit monitor designed to deliver comprehensive data monitoring and control for a wide range of industrial applications. As a Type CM-2250 Circuit Monitor, it falls under the category of HMI (Human-Machine Interface), MMI (Man-Machine Interface), and OIT (Operator Interface), signifying its essential role in facilitating user interaction with complex electrical systems.

This circuit monitor is equipped with a six-digit LED screen, providing a clear and immediate display of critical data. The high visibility of the display ensures that operators can easily read and interpret information in various lighting conditions, enhancing operational efficiency and decision-making processes.

One of the standout features of the 3020-CM-2250 is its impressive accuracy. With a precision of 0.2%, this monitor ensures that the data captured and displayed is exceptionally reliable, making it an invaluable tool for applications where precise measurements are crucial. This level of accuracy supports effective energy management and optimization, contributing to overall system performance.

The 3020-CM-2250 also excels in data logging capabilities, offering onboard data and event logging. This feature enables the storage and retrieval of historical data, allowing for detailed analysis and review of system performance over time. By maintaining a comprehensive record of events and measurements, the circuit monitor helps in identifying trends, diagnosing issues, and planning maintenance activities more effectively.

Alarm functionality is another critical aspect of the 3020-CM-2250. The device supports setpoint-controlled alarm and relay functions, allowing operators to define specific conditions that trigger alerts. These alarms are vital for proactive management, enabling timely responses to potential issues and preventing system failures.

The circuit monitor is designed with firmware that can be easily downloaded and updated. This feature ensures that the device remains up-to-date with the latest enhancements and capabilities, providing long-term value and adaptability to evolving requirements.

Waveform capture capabilities further enhance the 3020-CM-2250’s functionality. The device supports 64 and 128 point capture, allowing for detailed analysis of electrical waveforms. This capability is essential for diagnosing power quality issues, capturing transient events, and ensuring the smooth operation of electrical systems.

In summary, the Schneider Electric 3020-CM-2250 Type CM-2250 Circuit Monitor is a versatile and high-performance device designed for precise monitoring and control in industrial environments. Its six-digit LED screen, 0.2% accuracy, onboard data logging, setpoint-controlled alarms, downloadable firmware, and advanced waveform capture capabilities make it an essential tool for optimizing system performance and ensuring reliable operation. Whether used for energy management, system diagnostics, or operational control, the 3020-CM-2250 provides the detailed insights and reliable data needed to maintain and improve complex electrical systems.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
