3020-CM-250 | Schneider Electric Circuit Monitor with LED Display

The Schneider Electric 3020-CM-250 Circuit Monitor with LED Display is designed for real-time monitoring of electrical parameters. It offers precise energy management and system reliability, featuring an easy-to-read LED display for immediate data access, aiding in efficient energy usage and system diagnostics.

The Schneider Electric 3020-CM-250 Circuit Monitor with LED Display is a sophisticated and versatile metering device designed for comprehensive power monitoring and management. As part of the PowerLogic product line manufactured by Square D, this circuit monitor excels in providing detailed and accurate measurements essential for energy management and system optimization.

The 3020-CM-250 functions as a standalone metering device, capable of interfacing with a variety of meters including ammeters, voltmeters, wattmeters, Varmeters, kVA meters, and frequency meters. This compatibility ensures it can be integrated into a wide range of electrical systems for thorough monitoring and control.

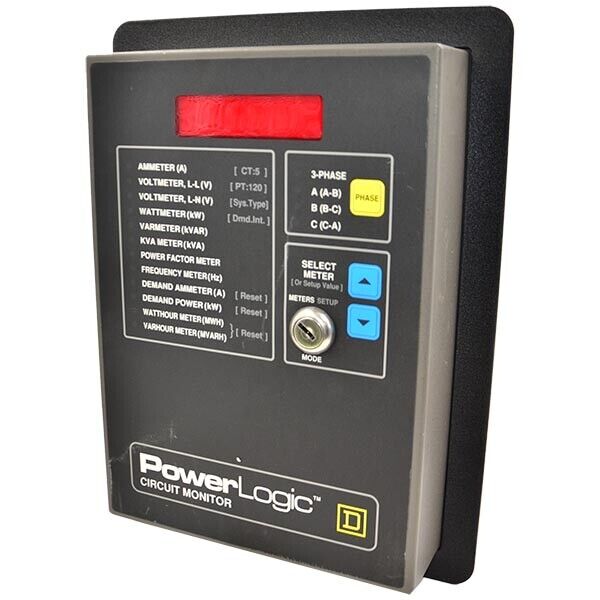

Equipped with a 6-digit LED display, the circuit monitor allows for the local display of 24 values, making it easy for users to access real-time data directly from the device. This local setup capability is further enhanced by a user-friendly faceplate configuration, which simplifies on-site adjustments and configurations.

The 3020-CM-250 is designed with three-element instrumentation, providing precise and accurate readings through true RMS metering up to the 31st harmonic. This high level of metering accuracy ensures reliable performance in various electrical environments, contributing to effective energy management and operational efficiency.

This circuit monitor is capable of replacing traditional transducers and other analog-to-digital conversion equipment, streamlining system upgrades and maintenance. It accepts standard PT and CT inputs (120V and 5A), making it adaptable to existing setups and ensuring seamless integration.

The device features non-volatile memory, ensuring that stored data is retained even during power interruptions. This memory capability supports historical data logging, allowing users to track and analyze power usage trends over time. Additionally, the 3020-CM-250 has waveform capture capabilities, providing detailed insights into electrical disturbances and events.

An onboard clock and calendar facilitate accurate timekeeping and event logging, while the inclusion of energy management alarms helps users quickly identify and respond to abnormal conditions. These alarms are crucial for maintaining system stability and preventing potential issues.

For communication, the 3020-CM-250 utilizes industry-standard RS-485/RS-422 protocols, ensuring reliable and efficient data transmission within broader networked systems. This robust communication capability supports remote monitoring and integration with other power management tools and systems.

In summary, the Schneider Electric 3020-CM-250 Circuit Monitor with LED Display is a high-performance, versatile metering device ideal for comprehensive power monitoring and management. Its compatibility with various meters, advanced data logging and waveform capture features, precise metering accuracy, and robust communication capabilities make it an essential tool for optimizing energy usage and ensuring reliable electrical system performance.
