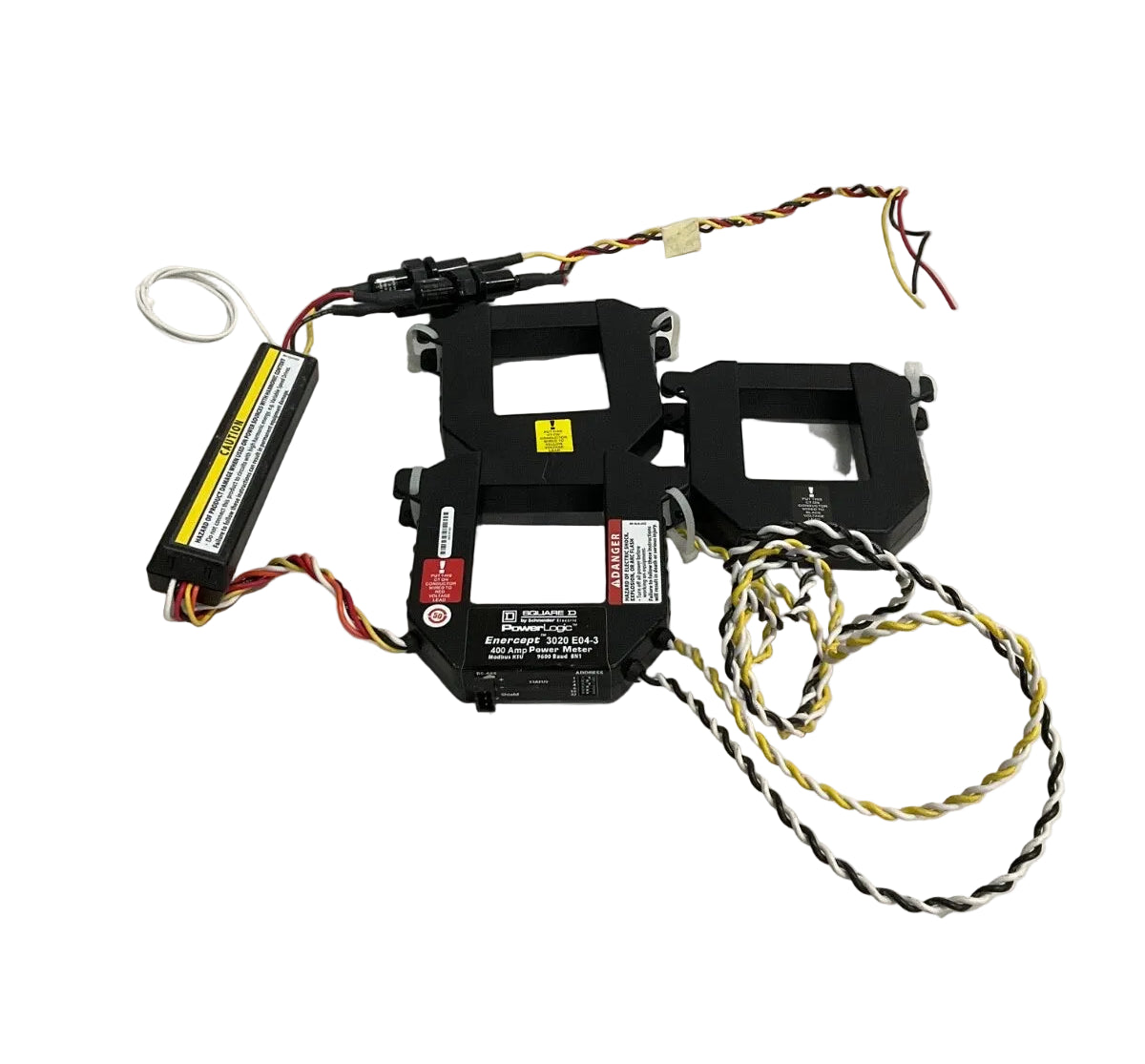

3020-E04-3 | Schneider Electric Enercept Power Meter
- Regular price
- $2,155.00
- Sale price
- $2,155.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 3020-E04-3
Description
The 3020-E04-3, a variant of the PowerLogic 3020 Enercept power meter, offers voltage measurement ranging from 208V to 480V, with a network frequency of 50-60 Hz. Power monitoring is facilitated through basic instrumentation. Its current transformer type is split core balanced, with a split core analogue input. Voltage measurement accuracy is within +/- 1. Communication is facilitated via Modbus RTU protocol through a direct mounting mode. The operational temperature range is 32 to 140 degrees Fahrenheit with a relative humidity of 95%. Certification includes UL and CUL. Weighing 2.2 lb, its dimensions measure 2.44”x1.18”x2.87” internally. The meter is particularly suitable for submetering electric loads in space-constrained environments. The device employs interconnected split-core CTs featuring built-in communication and metering electronics. Communication utilizes Modbus RTU, compatible with PowerLogic System Manager and associated network software devices. Data presentation options include graphical and tabular formats for historical trending, logging, and reporting. An optional Enercept Display Interface supports up to 32 meters, expandable to 63 with a repeater.
Technical Specifications
Part # |
3020E043 |
Category |
Controls & Indicators |
Subcategory |
Control Accessory |
Input Voltage |
208 to 480 VAC RMS |
Accuracy |
+/- 1 Percent |
Input Current |
400 Ampere |
Parameter Measured |
Power Consumption, Real Power, Reactive Power, Apparent Power, Demand, Phase Voltage, Phase Current, Voltage, Current, Power Factor |
Size |
2.45 Inch x 2.89 Inch |
Approval |
UL, CUL |
Additional Information |
Application Energy Management and Performance Contracting, Submetering for Commercial Tenants, Activity Based Costing in Commercial and Industrial Facilities, Real Time Power Monitoring, Motor Control Center Monitoring, Motor Maintenance Trending, Motor M |
Catalog Number |
3020E043 |
Brand Name |
PowerLogic[R], Enercept[R] |
Model |
3020 |
Type |
Enhanced Meter |
Meter Interconnect Type |
2-Wire |
Communication Port Type |
RS485/Modbus RTU Communication Protocol |
Frequency Rating |
50/60 Hz |
Operating Temperature |
0 to 60 Deg C |
Category |
Power Meters |
Information About 3020-E04-3
The 3020-E04-3, an enhanced variant of the Enercept power meter within the PowerLogic 3020 series, operates within a voltage range of 208V to 480V and a network frequency of 50-60 Hz. Power monitoring functionality is facilitated through basic instrumentation.
Utilizing a split core balance, the 3020-E04-3 employs a current transformer type with a split core analogue input. Voltage measurement capabilities span from 208V to 480V, boasting a measurement accuracy of +/- 1. Communication protocols and network types encompass Modbus RTU, with a direct mounting mode for operational ease.
The recommended operating environment for the 3020-E04-3 falls within a temperature range of 32 to 140 degrees Fahrenheit, with a relative humidity tolerance of 95%. Noteworthy certifications include UL and CUL, ensuring compliance with safety standards. Weighing 2.2 lb, the dimensions of the 3020-E04-3 are internally measured at 2.44”x1.18”x2.87”, rendering it a suitable option for constrained spaces.

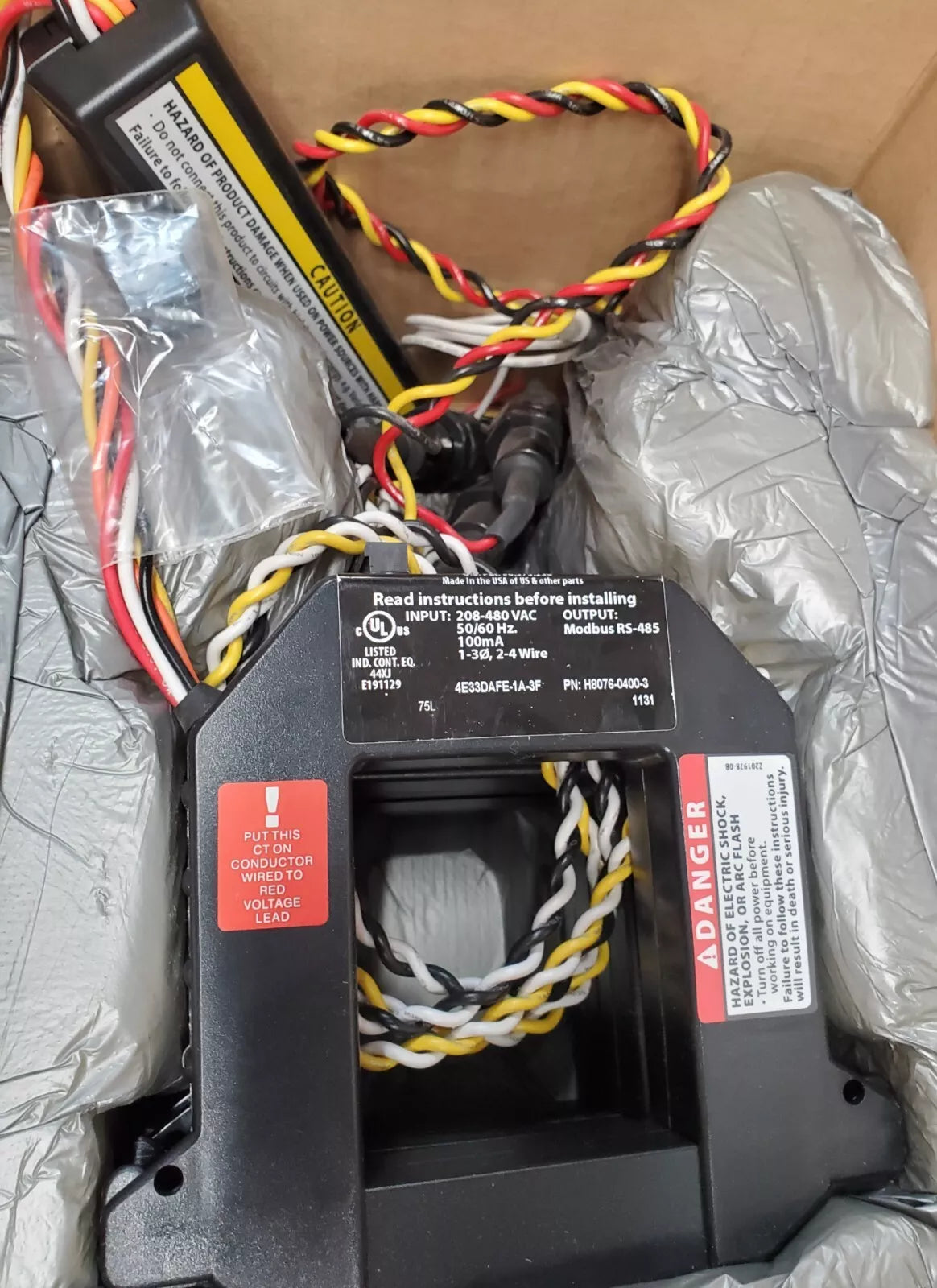

The meter's compact design, characteristic of PowerLogic Enercept meters, incorporates interconnected split-core CTs housing integrated communication and metering electronics. Communication protocol adherence to Modbus RTU, with its 2-wire design, ensures compatibility with PowerLogic System Manager and affiliated network software devices.
Data visualization options encompass both graphical and tabular formats, facilitating historical trending, logging, and report generation. Additionally, an optional Enercept Display Interface is available, providing a stand-alone interface capable of accommodating up to 32 meters, expandable to 63 with a repeater.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
