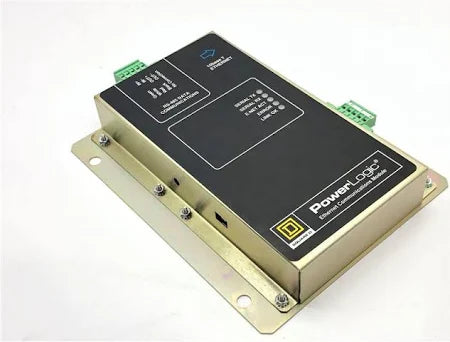

3020-ECM-RM | Schneider Electric Ethernet Communications Module

Description

The 3020-ECM-RM is an Ethernet communications module within the Square D Power Logic product line manufactured by Schneider Electric. Operating on a 10Base T Ethernet interface, it accommodates input voltages ranging from 90 to 264 volts with a power consumption of 35 VA at 50/60 Hz. Designed specifically for data reception, transmission, and conversion via ModBus TCP/IP protocol, it interfaces directly with PCs for data analysis and monitoring using System Manager Software.

Technical Specifications

Information About 3020-ECM-RM

The 3020-ECM-RM is a high-performance communication extender designed for use within industrial computer systems, particularly in applications requiring reliable data transmission over extended distances. As a critical component in the Powerlogic Class 3020 series, this communication extender is engineered to ensure seamless communication between various system components, enhancing the overall efficiency and reliability of industrial operations.

Operating within a wide voltage range of 90-264V, the 3020-ECM-RM is compatible with global power standards, making it suitable for deployment in diverse industrial environments across different regions. This wide voltage tolerance ensures that the device can operate effectively even in areas where power supply conditions may fluctuate, providing consistent performance without the risk of voltage-related disruptions.

The device is designed to function at both 50Hz and 60Hz frequencies, further enhancing its versatility and making it adaptable to the power supply conditions found in different parts of the world. Whether in a facility running on 50Hz or 60Hz, the 3020-ECM-RM ensures reliable and uninterrupted communication, contributing to the overall stability of the system.

The 3020-ECM-RM is built for panel mounting, a design choice that facilitates easy installation and integration into existing control panels or enclosures. This mounting method not only saves space but also provides a secure and stable installation, protecting the device from environmental factors such as vibration and accidental disconnection. The panel mount design also simplifies maintenance and access, allowing for quick inspections or replacements without significant downtime.

As part of the Powerlogic Class 3020 series, the 3020-ECM-RM is designed to meet the rigorous demands of industrial communication systems. Its primary function as a communication extender is to bridge distances between system components, ensuring that data can be transmitted accurately and efficiently across long distances without degradation. This capability is essential in large-scale industrial facilities where equipment and control systems are spread across wide areas, requiring robust and reliable communication links.

The 3020-ECM-RM is also designed with durability and longevity in mind. Built to withstand the harsh conditions often encountered in industrial settings, this communication extender is constructed from high-quality materials that ensure its resilience against environmental stressors such as temperature fluctuations, humidity, and dust. This durability ensures that the device continues to perform reliably over its operational lifespan, reducing the need for frequent maintenance or replacements.

In terms of application, the 3020-ECM-RM is ideal for industries such as manufacturing, energy, and process control, where maintaining reliable communication between systems is critical to operational success. Its ability to extend communication over long distances without compromising data integrity makes it an invaluable component in complex industrial networks.

The 3020-ECM-RM’s integration within the Powerlogic Class 3020 series underscores its role in a larger ecosystem of products designed to optimize industrial automation and control. This communication extender is engineered to work seamlessly with other devices in the series, ensuring that the entire system operates cohesively and efficiently.

In summary, the 3020-ECM-RM communication extender is a robust and versatile solution designed to enhance the reliability and efficiency of industrial communication systems. With its wide voltage and frequency compatibility, durable construction, and easy panel mounting, it is an essential component for any industrial setup requiring extended communication capabilities. Whether deployed in new installations or as part of an upgrade to existing systems, the 3020-ECM-RM is built to deliver consistent, high-quality performance in the most demanding industrial environments.
