Product Description P/N: 3020-PM-600
Description

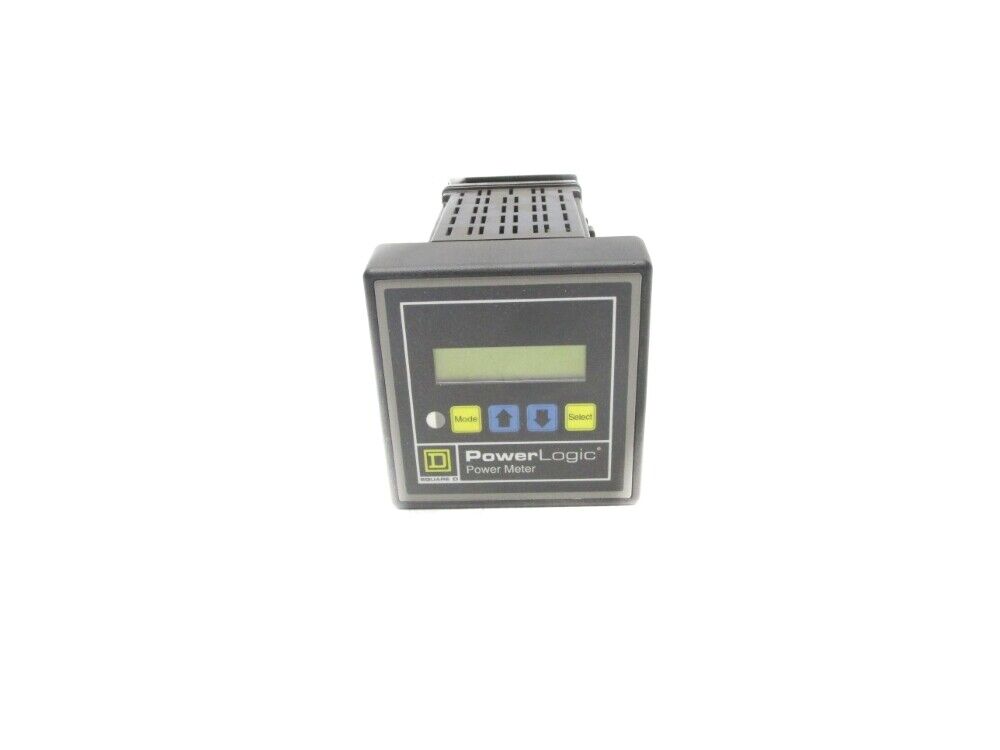

The 3020-PM-600 is a PowerLogic Power Meter by Square D (Schneider Electric.) The 3020-PM-600 is designed for easy retrofit in industrial settings. The 3020-PM-600 applications include panelboards, Low Voltage Drawout (LVDO) feeders, and switchboards. The 3020-PM-600 can also be used to meter the main.
Technical Specifications
Brand | Schneider Electric |
Part Number | 3020-PM-600 |
Category | Controls & Indicators |
Subcategory | Control |
Product Type | PowerLogic Power Meter |
Information About 3020-PM-600
The 3020-PM-600 fits standard 4 1/4" (108 mm) ammeter and voltmeter cutouts. The connection is made to the 3020-PM-600 by a cable that supplies both power and communications. The 3020-PM-600 can be mounted up to 50 feet from the display.
Some of the standard features of the 3020-PM-600 include:
True RMS Metering to the 31st Harmonic
Power Quality Readings of THD (Voltage and Current)
Unit will fit standard 1% Ammeter/Voltmeter mounting holes
Password protected setup through remote display
A wide operating temperature range of 0 to +60 degrees Celsius
On-board clock and calendar
The 3020-PM-600 is capable of real-time readings of current, voltage, real power, reactive power, apparent power, power factor, and frequency. The 3020-PM-600 is also able to take energy readings of accumulated energy (real, reactive and apparent.)
The 3020-PM-600 comes with full instrumentation, a RS-485 communications port, and wiring diagnostics standard. The 3020-PM-600 is UL listed, CE marked, CSA certified, and ANSI C12.16 accuracy.
The 3020-PM-600 has a voltage range of 208/120V. CT Primary (3-phase) is 5, CT secondary 5. Parity is even. PT Primary 3-Phase is 120, PT secondary 120. Frequency (nominal) is 60hz. The default system type is 4-wire. It is worth noting KYZ mode is disabled on this module.
