3020-PMD-32 | Schneider Electric PowerLogic Power Meter Display
- Regular price
- $494.00
- Sale price
- $494.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3020-PMD-32
Description
3020-PMD32, Square D, Powerlogic Metering, Circuit Monitors, power meter, LCD terminal display, 96 mA, 600Vac max, suitable for Class 3020 Powerlogic circuit breakers
Technical Specifications
| Brand | Schneider Electric |
| Part Number | 3020-PMD-32 |
| Category | PLCs/Machine Control |
| Subcategory | VDC Logic I/O Module |
| LINE LIQUID CRYSTAL DISPLAY | 2 |
| PHASE CURRENT INPUT | 3 |
| Suitable For | Class 3020 |
Information About 3020-PMD-32

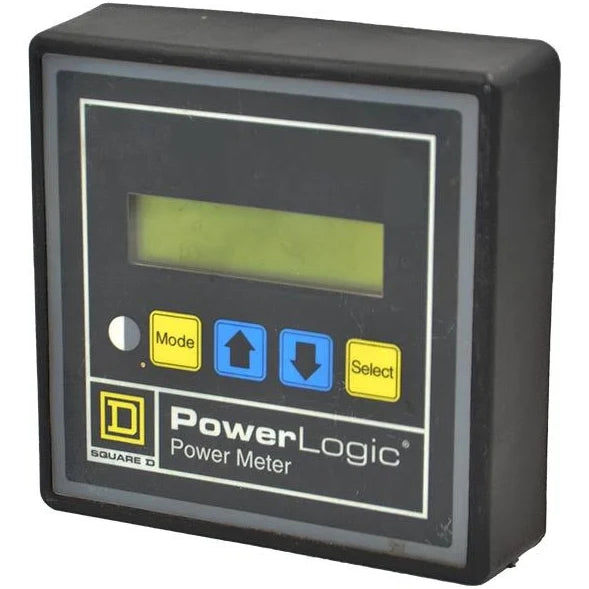

The 3020-PMD-32 is a PowerLogic Power Meter Display from SquareD (Schneider Electric.) The 3020-PMD-32 is designed to work in conjunction with PowerLogic power meters, as an optional display. The PowerLogic Power Monitoring and control system is capable of replacing a variety of basic analog meters. The addition of the 3020-PMD-32 to a PowerLogic Monitoring system allows for local reading of data. The 3020-PMD-32 can also be used as a power meter programmer. Addition of the 3020-PMD-32 to an existing power meter allows for
Setting up the power meter
Resets, to perform resets of peak demands, accumulated energy, and min/max.
Diagnostics for troubleshooting
Summary (displays commonly viewed metered values)
Displays power values
Displays energy values
Displays demand values
Displays power quality values
Displays and acknowledges onboard alarms
Allows for setup of onboard alarms
Displays minimum and maximum values
The 3020-PMD-32 is designed with five buttons on its front panel: mode, two arrow buttons, select, and contrast. The mode button allows for scrolling between modes. Arrow keys allow the user to increase or decrease the displayed parameter and to toggle between 'yes' and 'no' when required. The Select button allows the user to enter a selected mode and to scroll through fields within a mode. The Select button also acts as an "enter" key. The Contrast button allows the user to adjust the contrast of the display screen.
The 3020-PMD-32 has a 2-line LCD display. It is connected to a PowerLogic power meter with a one foot (0.3 meter) cable, which provides both communications and power. The 3020-PMD-32 has LV and MV applications to an accuracy of 0.25% deviation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
