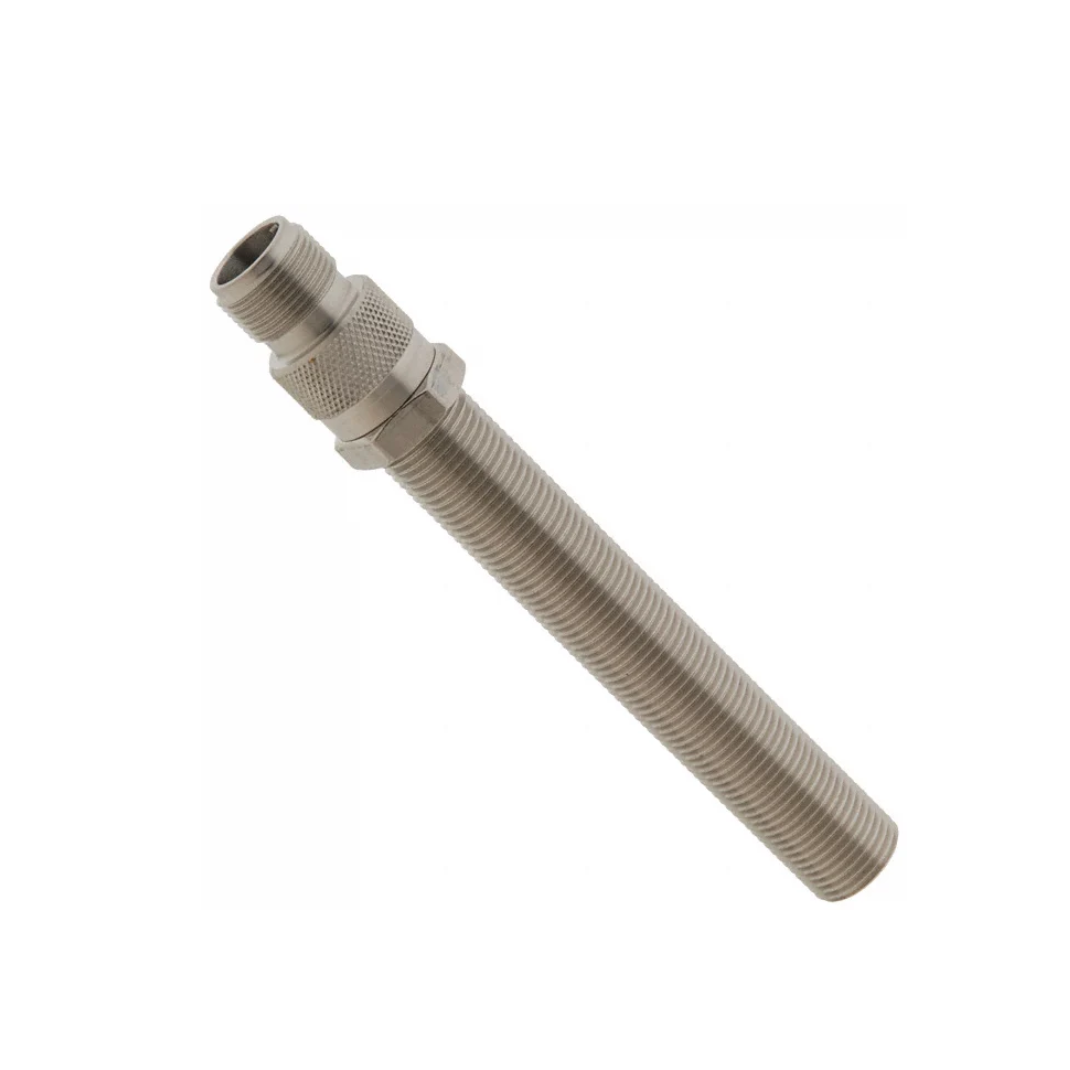

3030AN40 | Honeywell VRS Speed Sensor 190V Output
- Regular price
- $634.00
- Sale price
- $634.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3030AN40
Description
The Honeywell 3030AN40 is a high-output Variable Reluctance Sensor (VRS) from the 3030 Series, engineered for reliable detection of speed and position in demanding industrial environments. It provides a 190V peak-to-peak output, 910–1200Ω coil resistance, and a 4-inch threaded housing for easy installation and secure mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors and Transducers |
| Part Number | 3030AN40 |
| Subcategory | VRS Speed Sensor |
| Series | 3030 Series |
| Sensor Type | Variable Reluctance (Magnetic Pickup) |
| Output Type | Analog AC Voltage (Peak-to-Peak) |
| Output Voltage | 190 VAC (Peak-to-Peak at Rated Speed) |
| Coil Resistance | 910 to 1200 Ω |
| Inductance | Typical for high-output sensors (factory calibrated) |
| Response Time | 0.25 ms |
| Operating Temperature Range | -55°C to +120°C (-67°F to +248°F) |
| Body Style | Threaded Cylindrical Housing |
| Thread Length | 4 inches (101.6 mm) |
| Termination Style | Connector Termination |
| Mounting Type | Screw-In Threaded Mount |
| Material | Stainless Steel Housing |
| Speed Range | Suitable for Low-to-High RPM Detection |
| Shock/Vibration Resistance | High Mechanical Durability for Industrial Applications |
| RoHS Compliance | Yes |
| Protection Class | Industrial-Grade Sealing (Environmental Protection) |
| Connection Type | Standard Connector Interface |
| Typical Applications | Engine RPM Sensing, Rotational Speed Monitoring, Gear Tooth Detection |
| Weight | 1.00 lb (0.45 kg) |
Information About 3030AN40
The 3030AN40 belongs to Honeywell’s 3030 Series of VRS (Variable Reluctance Sensors), designed for accurate speed and position sensing in harsh industrial environments. Utilizing magnetic pickup technology, the sensor detects the motion of ferromagnetic targets such as gear teeth or rotating shafts. Its 190V peak-to-peak output and wide coil resistance range (910–1200Ω) provide excellent signal strength and noise immunity, even in high-temperature or high-vibration conditions. The 4-inch threaded body enables secure mounting in deep or thick housings, while the connector termination ensures reliable signal transmission and simplified maintenance. The sensor’s rugged construction, fast response, and wide operating temperature range make it well-suited for automotive, aerospace, and heavy machinery applications requiring precise rotational feedback.
Key Features:
- High Output Voltage: Provides up to 190V peak-to-peak for strong signal transmission and noise resistance.
- Fast Response Time: 0.25 ms response ensures accurate detection of rapid speed changes.
- Wide Coil Resistance Range: 910–1200Ω design offers consistent performance across variable operating speeds.
- Extended Temperature Range: Operates reliably from -55°C to +120°C in extreme environments.
- Threaded 4-Inch Housing: Simplifies installation in industrial and mechanical assemblies.
- Rugged Stainless Steel Body: Provides corrosion resistance and long operational life in harsh conditions.
- Connector Termination: Ensures secure electrical connection and facilitates easy field replacement.
- Magnetic Pickup Technology: Enables contactless sensing for reliable rotational speed measurement.
- RoHS Compliant: Environmentally safe and compliant with international material standards.
- Industrial-Grade Durability: Designed to withstand vibration, shock, and temperature cycling.
The 3030AN40 delivers the reliability and precision required for rotational speed detection and control in heavy-duty industrial and automotive systems.
