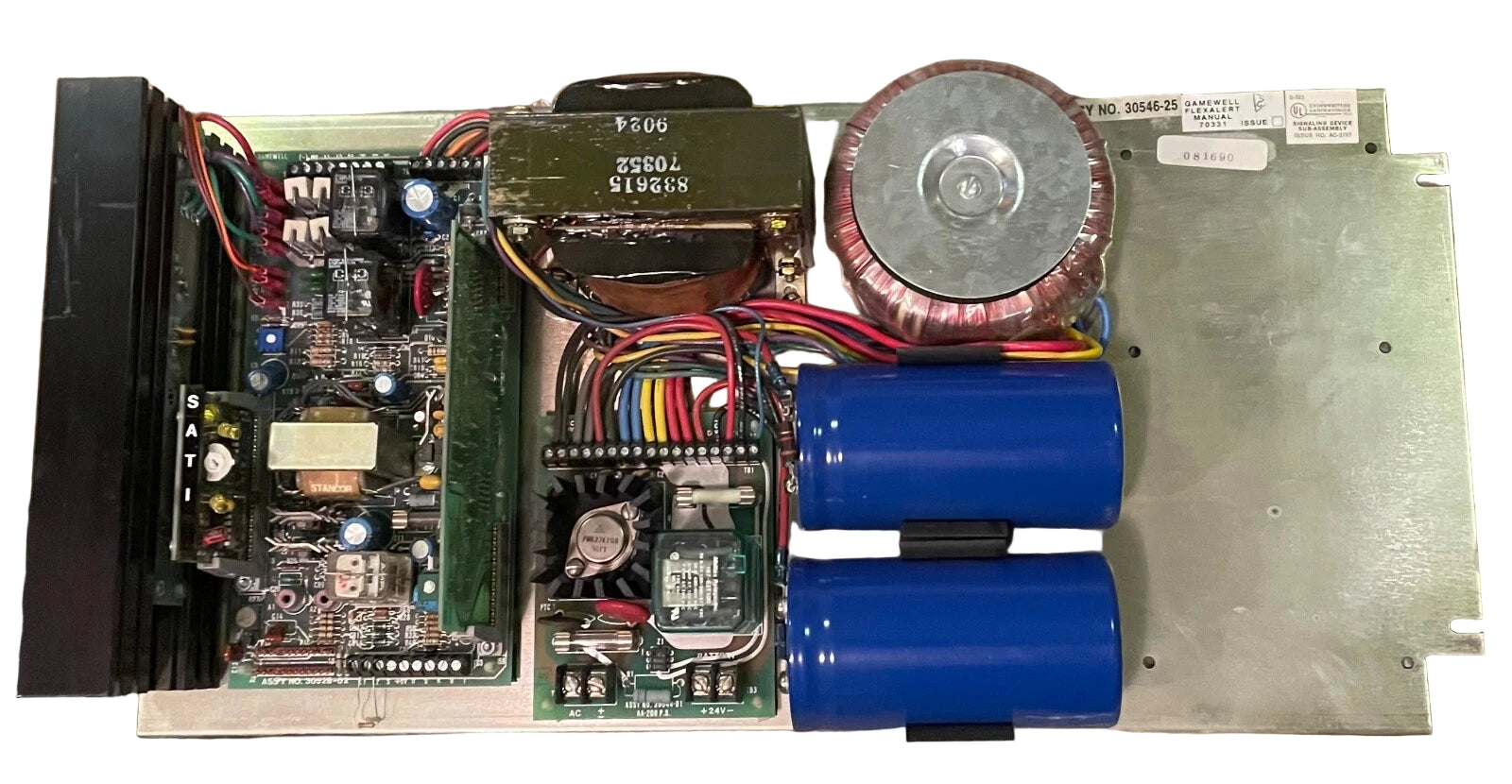

30546-25 | Gamewell-FCI FlexAlert Fire Alarm Control Board
- Regular price
- $2,397.00
- Sale price
- $2,397.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 30546-25
Description
The Gamewell-FCI 30546-25 FlexAlert Fire Alarm Control Board is a control circuit assembly designed for use within the FlexAlert fire alarm system platform. It provides supervision, signaling, and control of connected detection and notification circuits to ensure proper system operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Equipment |
| Part Number | 30546-25 |
| Subcategory | Fire Alarm Control Board |
| System Type | FlexAlert fire alarm system main board |
| Circuit Type | Supervised initiating and notification appliance circuits |
| Operating Voltage | 24 VDC nominal |
| Input Power Source | External regulated power supply |
| Communication Interface | Panel-mounted bus and field wiring terminals |
| Indicators | Onboard LEDs for alarm, trouble, and power status |
| Supervision | Detects open, short, and ground faults |
| Processor Type | Microprocessor-based control logic |
| Mounting Type | Panel-mounted PCB assembly |
| Material | Fiberglass PCB with protective coating |
| Compliance | UL Listed; NFPA 72 compliant (legacy systems) |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Dimensions | Approx. 10" L × 6" W × 1.5" D |
| Weight | 1.1 lb (0.50 kg) |
Information About 30546-25
The 30546-25 is a main control board developed by Gamewell-FCI for legacy FlexAlert conventional fire alarm systems. It manages multiple initiating and notification appliance circuits, providing precise monitoring of alarms, troubles, and supervisory conditions. The board’s integrated microprocessor ensures accurate signal processing, while onboard terminals allow direct wiring to field devices and power supplies. Designed for use in both commercial and industrial applications, the 30546-25 offers durable, reliable performance in fire detection and signaling control. Though discontinued by the manufacturer, it remains a vital replacement component for maintaining or repairing existing FlexAlert systems.
Key Features:
- Central Control Function: Operates as the main logic and communication board for FlexAlert systems.
- Multi-Circuit Management: Supports multiple supervised initiating and notification circuits.
- Microprocessor-Based Design: Ensures reliable system monitoring and control logic.
- Trouble and Alarm Supervision: Detects open, short, and ground faults for enhanced safety.
- Direct Field Wiring: Terminal connections allow straightforward integration of devices and power.
- Notifier-Compatible Layout: Designed to operate within legacy FlexAlert control panel enclosures.
- LED Indicators: Provides visual feedback for alarm, trouble, and normal conditions.
- Legacy System Support: Essential for maintaining discontinued Gamewell-FCI FlexAlert systems.
The 30546-25 delivers the reliability and precision required for system control and supervision in legacy FlexAlert fire alarm applications.
