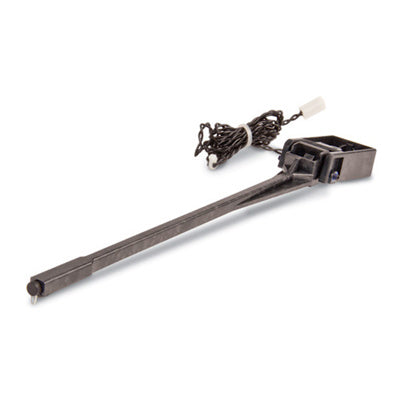

30756304-501 | Honeywell Circular Chart Recorder Standard Pen Arm Assembly Black Tip
- Regular price
- $810.00
- Sale price
- $810.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 30756304-501
Description
The Honeywell 30756304-501 Circular Chart Recorder Pen Arm is a standard black-tip pen assembly designed for use with DR4500 Truline circular chart recorders. It provides precise ink tracing for accurate temperature, pressure, or process variable recording in industrial monitoring systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Instrumentation |
| Part Number | 30756304-501 |
| Subcategory | Chart Recorder Accessory |
| Type | Standard Pen Arm Assembly |
| Compatible Model | DR4500 Truline Circular Chart Recorder |
| Function | Heat Trace / Chart Recording |
| Ink Tip Color | Black |
| Pen Type | Replaceable Pen Arm |
| Application | Process Data Recording |
| Mounting Type | Direct Fit onto Recorder Arm Mechanism |
| Material | Lightweight Metal and Composite |
| Operation | Mechanical Tracing |
| Line Precision | Fine-Line Accuracy for Chart Marking |
| Maintenance | Replaceable Ink Tip |
| Temperature Range | Recorder-Dependent |
| Usage Environment | Industrial / Laboratory Monitoring Systems |
| Country of Origin | United States |
| Weight | 0.20 lbs |
Information About 30756304-501
The 30756304-501 is part of Honeywell’s Truline accessory line, developed for precise chart documentation in circular recording instruments. Specifically designed for DR4500 Truline recorders, this pen arm assembly ensures consistent ink flow and clean chart markings during operation. Its durable construction allows for reliable long-term use in both industrial and laboratory monitoring applications. The black-tip configuration provides clear, easy-to-read traces for temperature, pressure, or flow recording, maintaining high accuracy and trace quality over extended recording periods.
Key Features:
- Compatible with DR4500 Truline: Designed exclusively for Honeywell Truline circular chart recorders for optimal fit and performance.
- High-Precision Tracing: Provides fine, accurate ink lines for dependable process data documentation.
- Durable Construction: Built from sturdy metal and composite materials for extended service life.
- Easy Replacement: Pen arm assembly installs quickly onto recorder mechanism without special tools.
- Consistent Ink Delivery: Black ink tip ensures uniform trace quality and readability throughout operation.
- Low Maintenance Design: Simple to replace and maintain for ongoing data recording reliability.
- Stable Operation: Maintains steady chart contact for accurate mechanical marking.
- Industrial-Grade Performance: Suitable for demanding process monitoring and environmental recording applications.
The 30756304-501 delivers the reliability and precision required for consistent chart recording and accurate process tracking in Honeywell DR4500 Truline systems.
