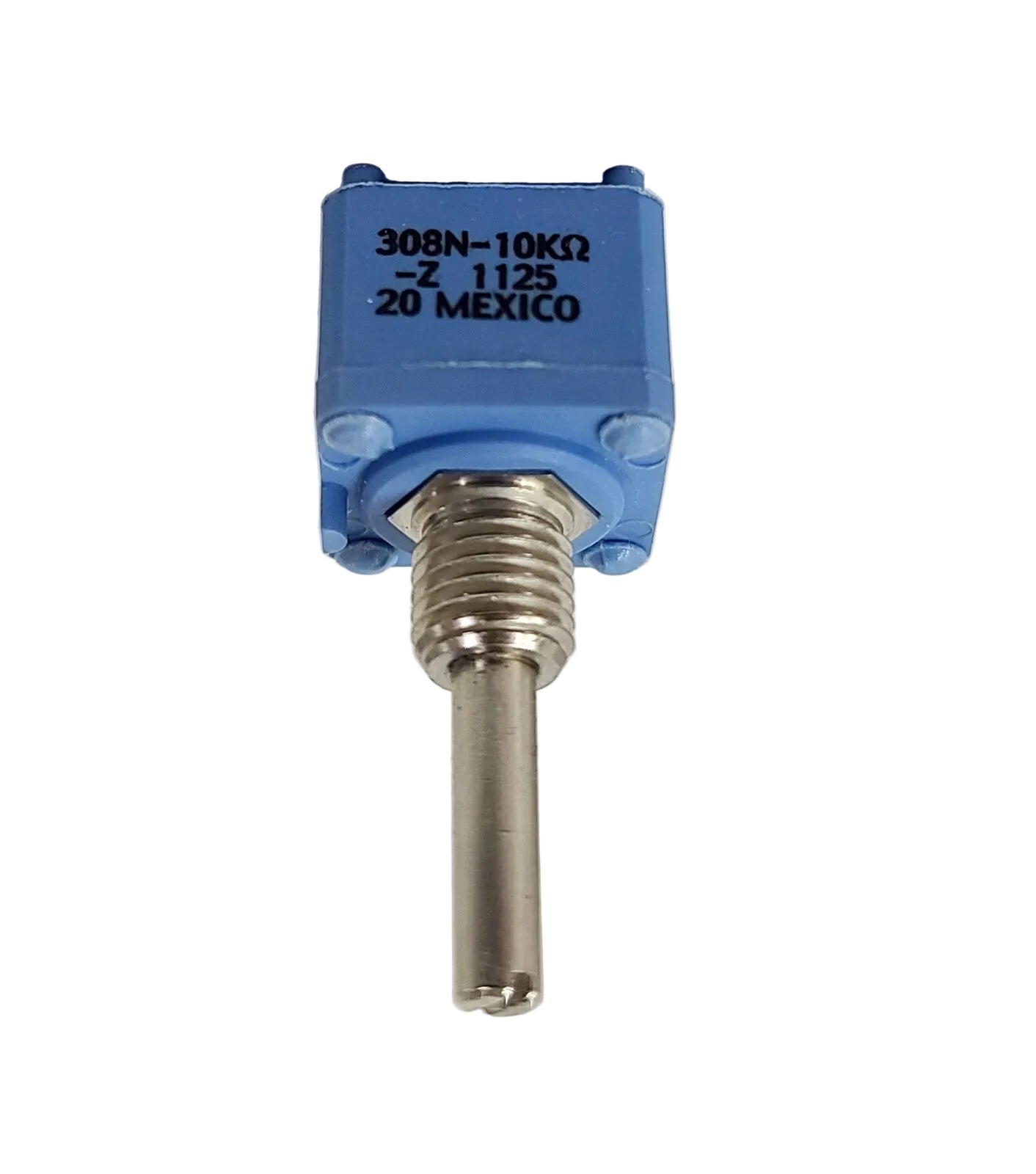

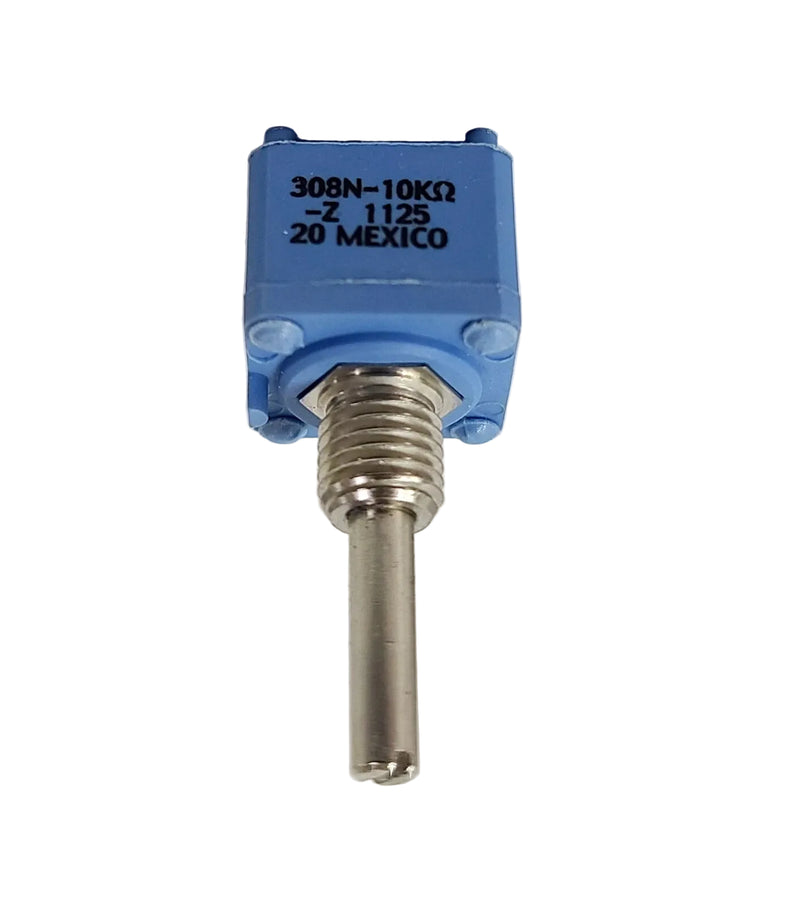

308N10KZ | Honeywell 10KΩ 1/2W Single-Turn Panel Mount Potentiometer
- Regular price
- $187.15
- Sale price
- $187.15
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 308N10KZ
Description
The Honeywell 308N10KZ is a single-turn rotary potentiometer designed for precise manual adjustment of resistance in control and instrumentation circuits. It features a 10 kΩ conductive plastic element with a 0.5 W power rating and panel-mount configuration. This component is intended for applications requiring stable resistance control and long mechanical life.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Pilot Devices |
| Part Number | 308N10KZ |
| Subcategory | Potentiometer |
| Series | 308 |
| Resistance | 10 kOhms |
| Tolerance | ±10% |
| Power Rating | 0.5 W (1/2 W) |
| Element Type | Conductive Plastic |
| Number of Turns | 1 Turn |
| Mechanical Rotation | 295° |
| Mounting Type | Panel Mount |
| Bushing Thread | 1/4-32 |
| Termination Style | Solder Hook (J-Hook) |
| Shaft Type | Slotted |
| Shaft Diameter | 0.250 in (6.35 mm) |
| Operating Temperature | -40°C to +120°C |
| Maximum Voltage Rating | 350 V |
| Weight | 3.00 lbs |
Information About 308N10KZ
The 308N10KZ is part of Honeywell’s 308 Series rotary potentiometers, developed for industrial and electronic control systems. It incorporates a conductive plastic resistive element to provide smooth adjustment and consistent electrical performance over its service life. The device offers approximately 295° of mechanical rotation and is equipped with a slotted shaft for manual control via knob or tool. Designed for panel mounting with a threaded bushing, it connects through solder hook or J-hook terminals for secure wiring in control assemblies.
Key Features:
-
10 kΩ Resistance Value: Provides standard resistance for signal adjustment and control circuits.
-
Conductive Plastic Element: Ensures smooth operation and stable resistance characteristics.
-
Single-Turn Design: Offers precise adjustment within one mechanical rotation.
-
0.5 W Power Rating: Suitable for low-power control and signal applications.
-
295° Mechanical Rotation: Allows fine manual adjustment across the full range.
-
Panel Mount Configuration: Threaded bushing (1/4-32) for secure installation.
-
Slotted Shaft Actuator: Compatible with standard knobs or adjustment tools.
-
Wide Temperature Range: Operates from -40°C to +120°C.
The 308N10KZ delivers the reliability and precision required for resistance adjustment in industrial and electronic control systems.
