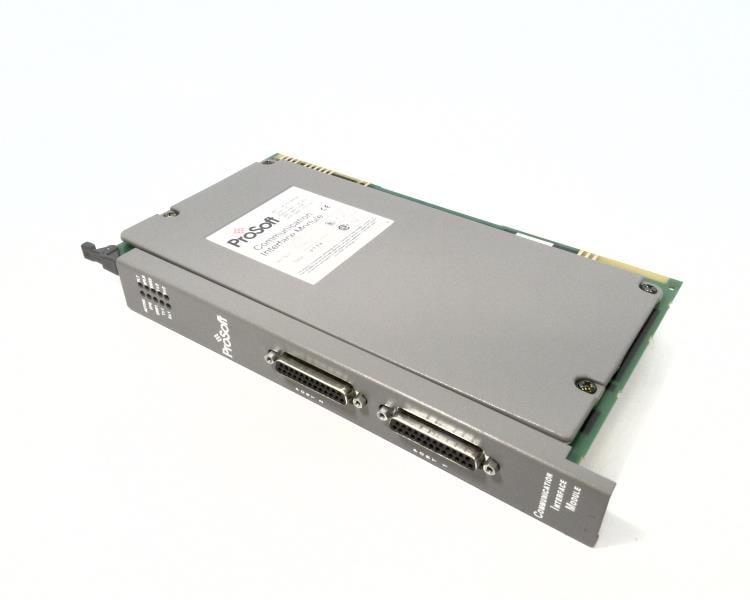

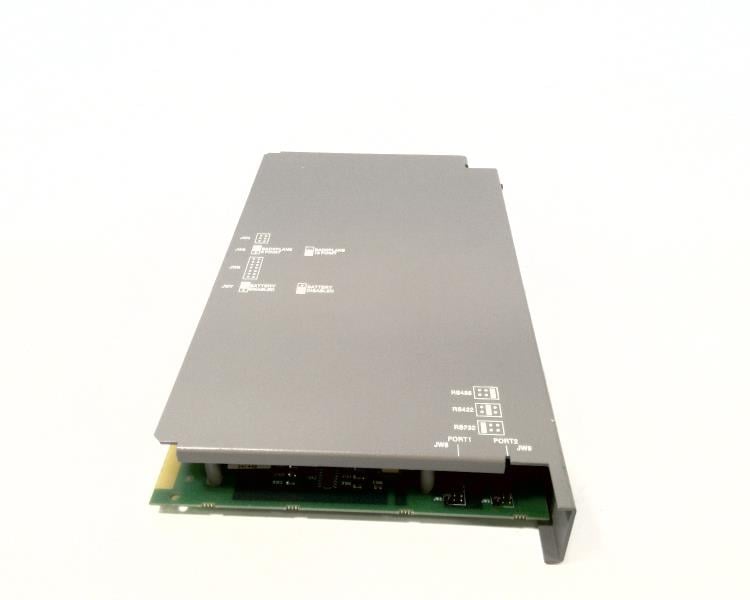

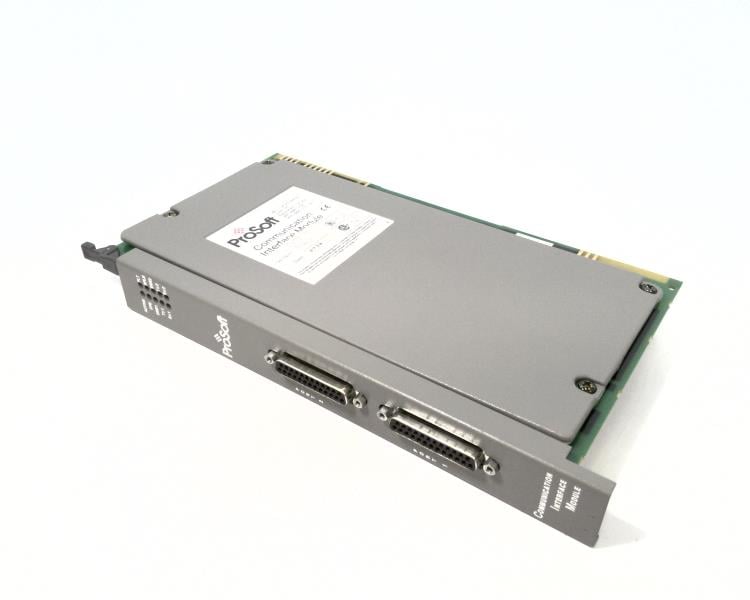

3100-LTQ | ProSoft Limitorque Valve Actuator Master Communication Module

Description

The ProSoft 3100-LTQ is a master communication module that enables seamless integration of Limitorque valve actuators with Rockwell Automation PLCs using the Modbus RTU protocol.

Technical Specifications

Information About 3100-LTQ

The ProSoft 3100-LTQ is a Limitorque Valve Actuator Master Communication Module designed for the Allen-Bradley PLC-5 platform. It enables direct integration and control of up to 150 Limitorque valve actuators over RS-232 or RS-485 networks. With support for redundant loop and multi-drop configurations, it ensures robust and reliable valve automation in demanding process environments.

Key Features:

• Product Type: Limitorque Valve Actuator Master Communication Module

• Platform Compatibility: Allen-Bradley PLC-5 (1771 I/O)

• Communication Protocols: RS-232 or RS-485 (jumper-selectable)

• Supported Devices: Up to 150 Limitorque valve actuators

• Network Topologies: Redundant loop or multi-drop

• Control Functions: Open, Close, Stop, Valve Positioning (0–100%), ESD, Contactor Engagement

• Monitoring Data: Valve position, digital I/O status, fault codes, communication diagnostics

• Serial Ports: 2 × DB-25 female

• Isolation: 500V optical isolation from backplane

• Backplane Current Load: 0.65 A

• LED Indicators: Module status, port activity, error, backplane communication

• Operating Temperature: 0°C to 60°C

• Mounting System: 1771 rack-mountable

The 3100-LTQ provides a high-reliability solution for integrating Limitorque valve actuators into Rockwell Automation control systems. With comprehensive command support and robust diagnostics, it is ideal for mission-critical applications in industries such as oil & gas, water treatment, and power generation.
