3107440047 | Schneider Electric NEMA Motor Starter
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3107440047
Description

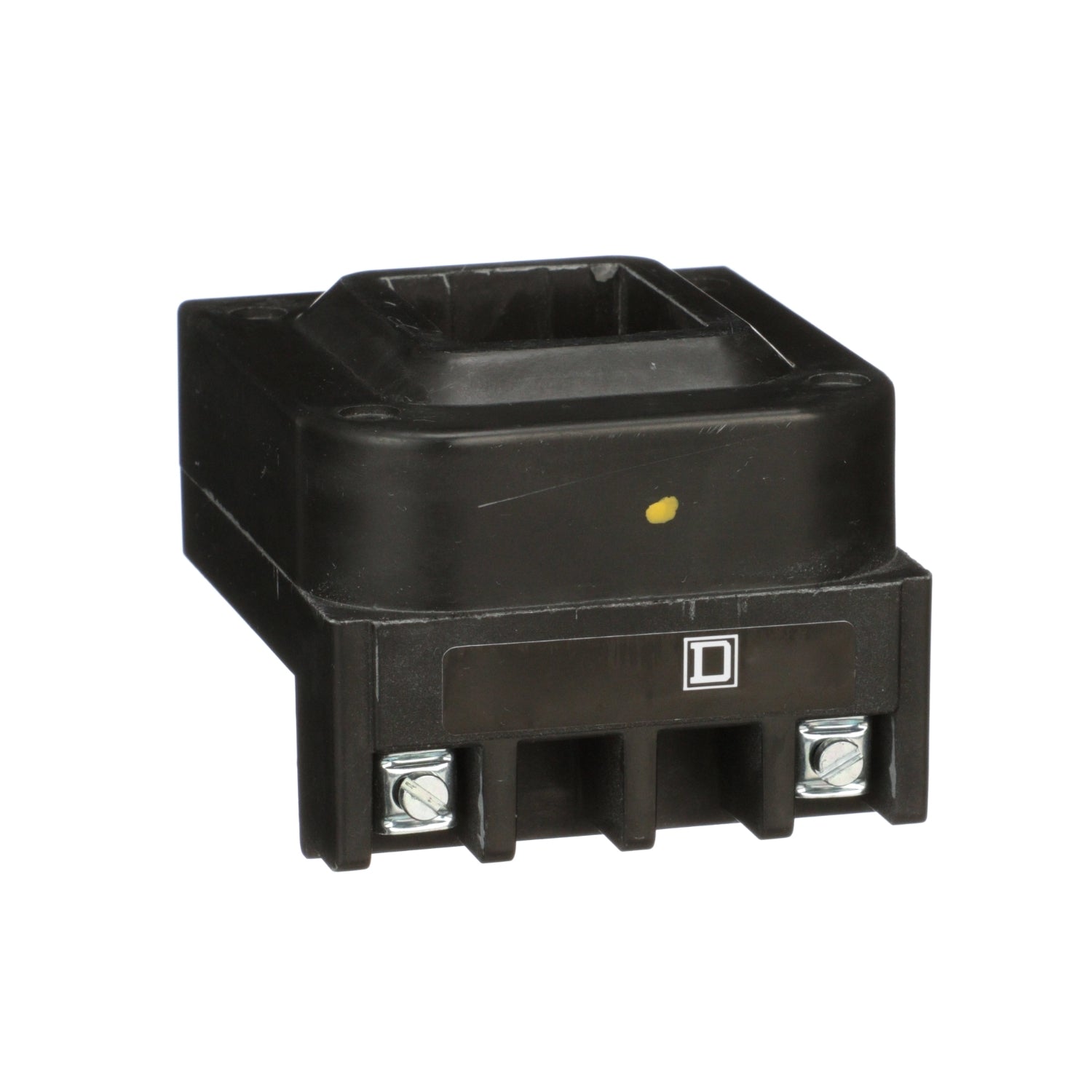

The 3107440047 is a replacement coil designed for use in Type S contactors or starters, offering versatility in control circuit voltage applications. By simply replacing the coil, compatibility with different voltage requirements can be achieved, thereby eliminating the need for purchasing an entirely new contactor or starter in case of coil failure.
This coil is specifically utilized in various models, including the 8502SE contactor, 8536SE starter, 8903SQ lighting contactor, or 8910DPA12 definite purpose contactor. It operates at a voltage rating of 220/240 VAC with a frequency of 50/60 Hz.
Technical Specifications
|
Part # |
31074-400-47 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor/Starter Coil |
|
NEMA size |
3 |
|
[Ue] rated operational voltage |
240 V AC 60 Hz |
|
[Ue] rated operational voltage |
220 V AC 50 Hz |
|
Inrush power in VA |
700 VA |
|
Inrush power in VA |
678 VA |
|
Average consumption |
47 VA |
|
Average consumption |
46 VA |
|
Height |
2.87 in (73 mm) |
|
Width |
2.56 in (65 mm) |
|
Depth |
0.08 in (2.093 mm) |
Information About 3107440047
The 31074-400-47 is a NEMA motor starter coil designed for Type S contactors or starters. It serves as a replacement coil, facilitating easy adaptation of the contactor or starter to various control circuit voltage applications. This feature enables cost savings by eliminating the need to replace the entire contactor or starter in case of coil failure. Compatible with 8502SE contactors, 8536SE starters, 8903SQ lighting contactors, and 8910DPA12 definite purpose contactors, this coil operates at a voltage rating of 220/240 VAC and 50/60 Hz frequency.
With an inrush power of 700 VA and an average sealed consumption of 46 VA, this coil delivers efficient performance. Its dimensions measure 73 mm in height, 65 mm in width, and 53.2 mm in depth, ensuring compatibility with NEMA Size 3 starters and 8903SQ lighting systems. Additionally, the coil is fully encapsulated for enhanced protection against environmental factors.
Featuring screw clamp connections, the 31074-400-47 coil offers ease of installation and reliable electrical connections. Its robust design and versatile compatibility make it suitable for a wide range of industrial applications, providing reliable operation and longevity.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
