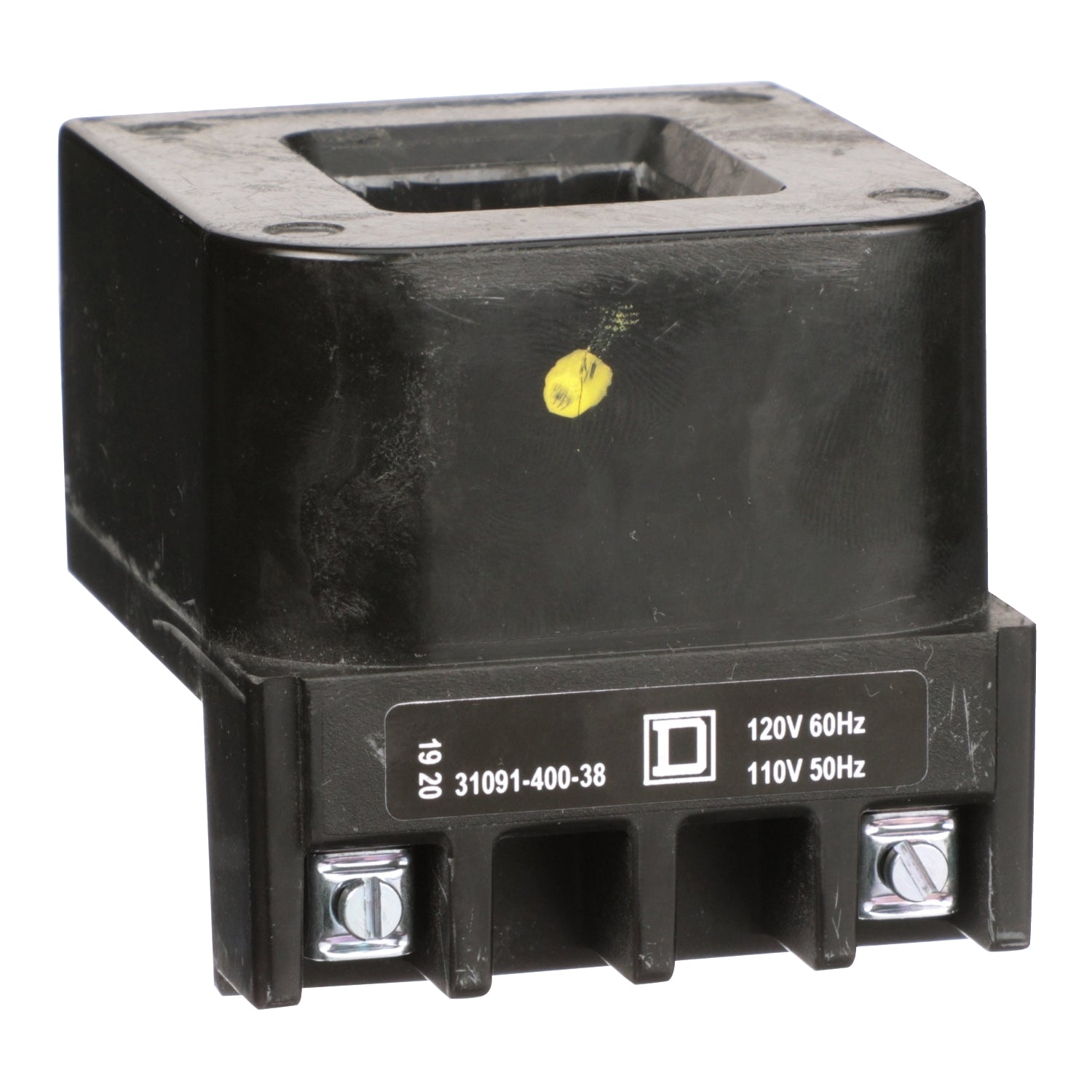

3109140038 | Schneider Electric 120V Direct-Mount NEMA Replacement Contactor Coil
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3109140038
Description
The Schneider Electric 3109140038 is a direct-mount replacement coil designed for NEMA motor starters and contactors. Rated for 120 V operation and supporting up to 100 A applications, this coil ensures stable, reliable magnetic actuation in motor control systems. Its compact form and robust construction make it suitable for both industrial and commercial starter assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | 3109140038 |
| Subcategory | Contactor/Starter Coil |
| Product Type | Replacement Coil |
| Voltage Rating | 120 V (110–115 V at 50 Hz / 120 V at 60 Hz) |
| Amperage Rating | 100 A |
| Average Consumption | 89 VA / 85 VA |
| Contactor Type | NEMA |
| Connection Type | Screw Lamp |
| Mounting | Direct Mount |
| Size | 2.87" H × 2.56" W × 2.47" D |
Information About 3109140038
The 3109140038 is a replacement coil engineered for Schneider Electric NEMA contactors, offering dependable performance in demanding motor control environments. Designed for direct mounting, it integrates easily into existing starter assemblies without the need for modification. The coil supports 120 V operation and features average consumption ratings of 89 VA and 85 VA, enabling efficient power use while maintaining strong magnetic pull-in. With a screw-lamp connection interface and a compact footprint, it delivers secure installation, long-term durability, and consistent performance across various starter configurations.
Key Features:
- 120 V AC operation: Supports 110–115 V at 50 Hz and 120 V at 60 Hz for broad compatibility.
- Direct-mount design: Enables fast and seamless installation into NEMA starter assemblies.
- High current support: Rated for applications up to 100 A in motor control circuits.
- Energy-efficient consumption: Operates at 89 VA / 85 VA for reduced power usage.
- Screw-lamp connection: Ensures stable, secure terminal fastening.
- Compact size: Measures 2.87" × 2.56" × 2.47" for easy integration in tight enclosures.
- Fits through all poles: Provides versatile compatibility within NEMA contactors.
The 3109140038 delivers the reliability and precision required for dependable motor starter coil operation in industrial control systems.
