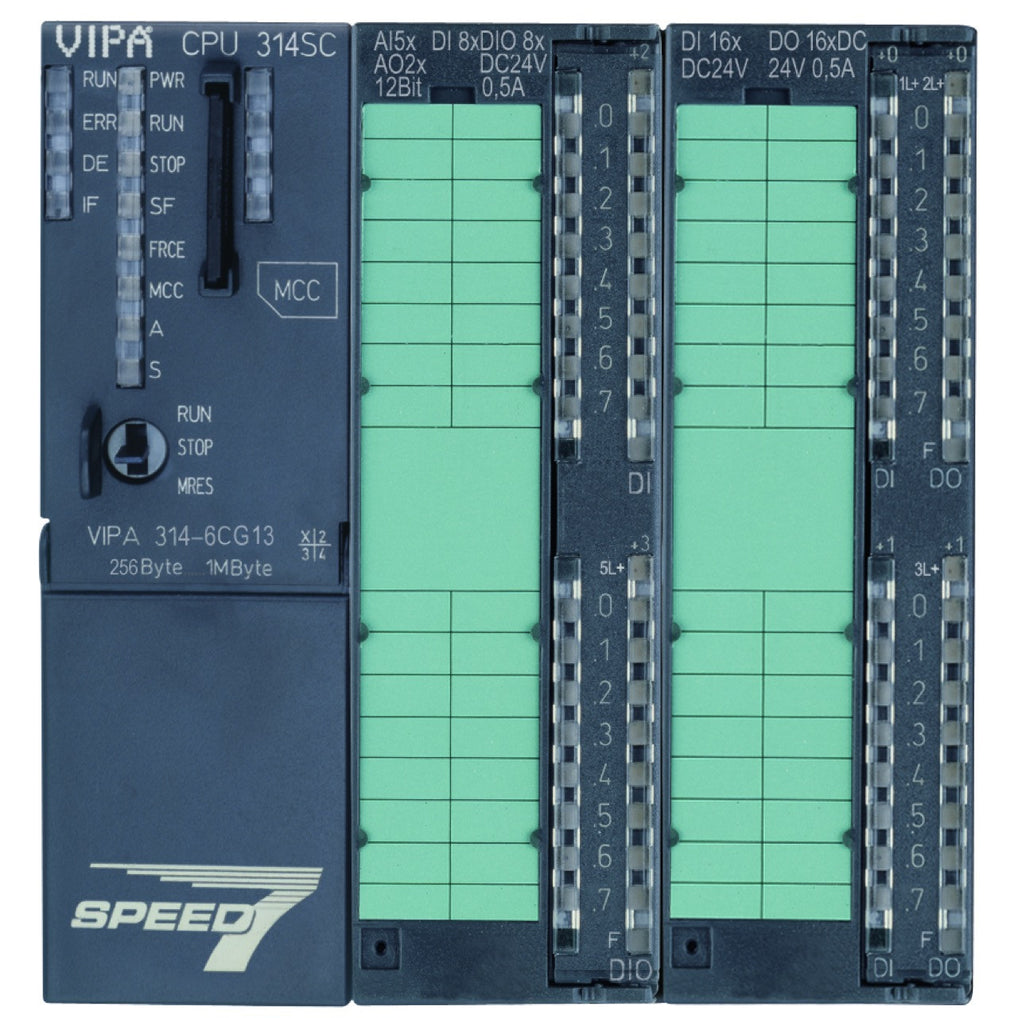

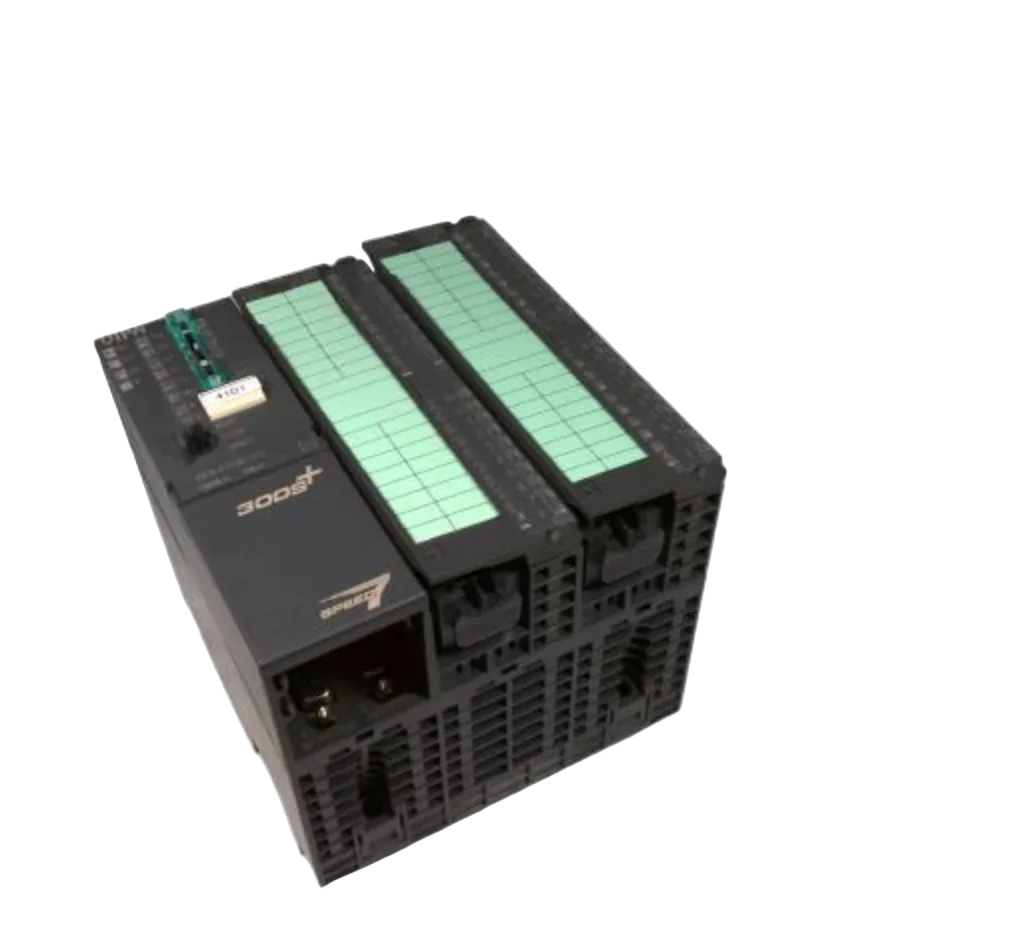

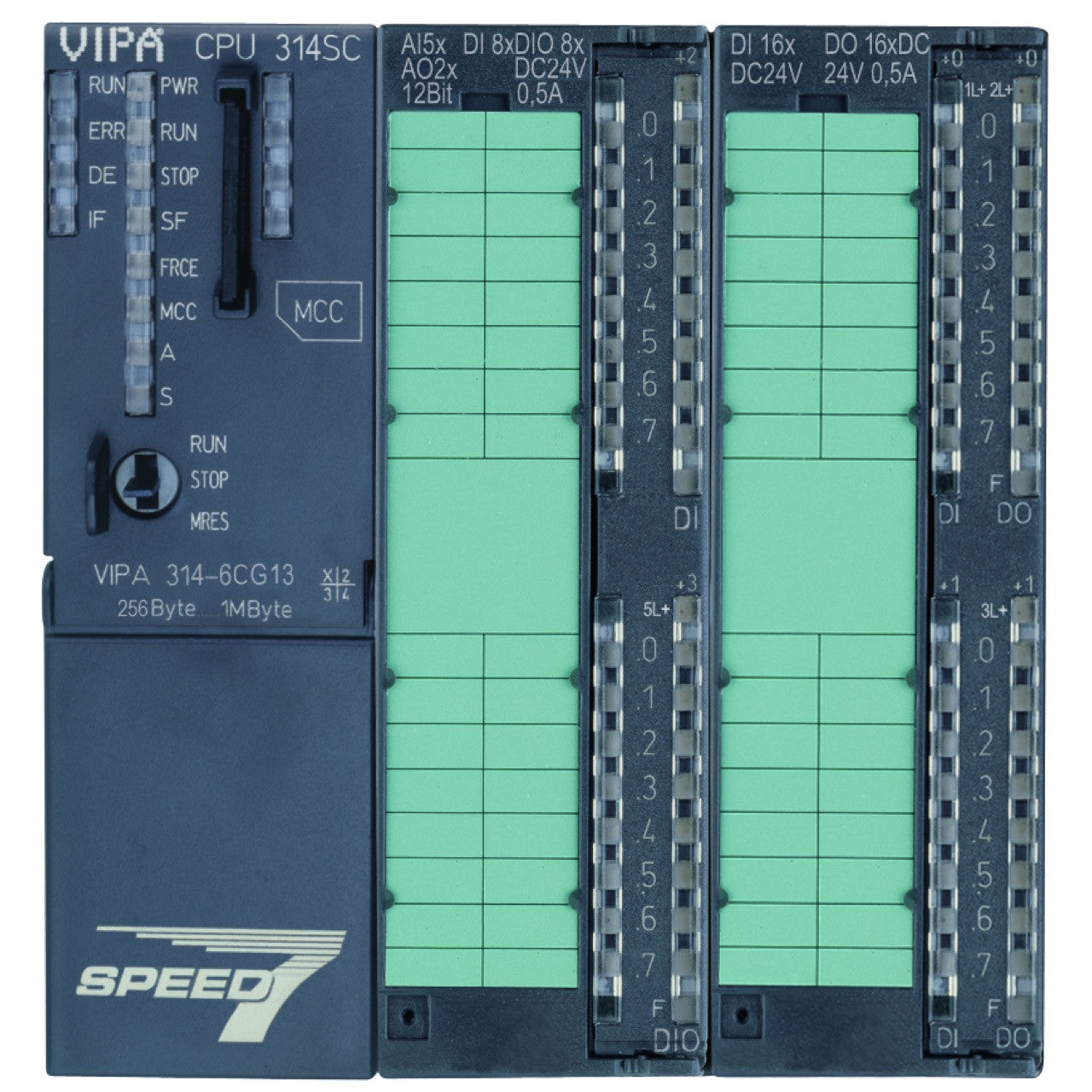

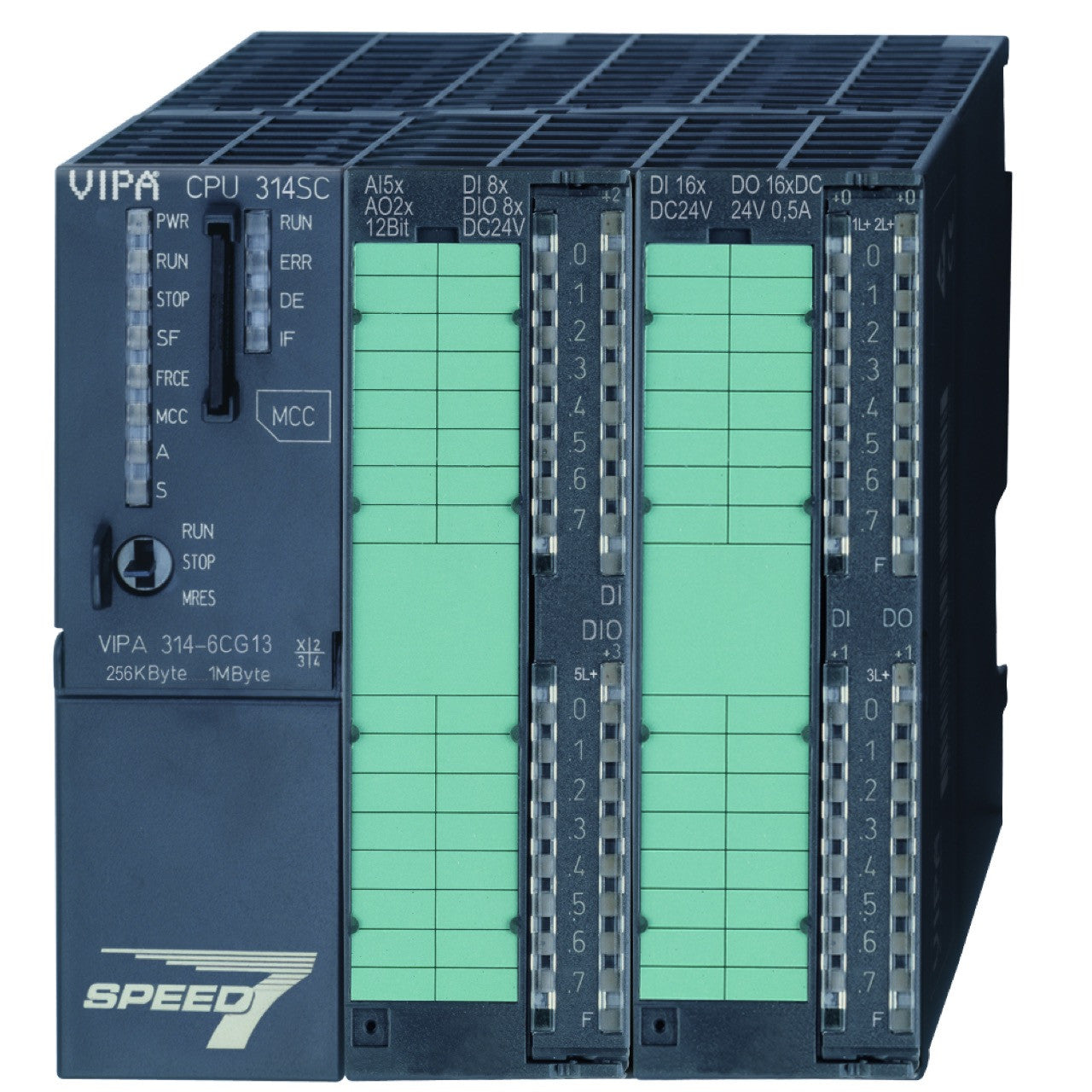

314-6CG13 | VIPA CPU 314SC/DPM Modular PLC Controller
- Regular price
- $8,249.00
- Sale price
- $8,249.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 314-6CG13
Description
The VIPA 314-6CG13 is a modular industrial CPU/controller designed for programmable logic control in automated systems. It provides integrated digital and analog I/O along with PROFIBUS-DP communications for reliable process and machine control. The unit supports high-speed processing and is suited for medium-complexity PLC tasks in factory automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | VIPA |
| Part Number | 314-6CG13 |
| Category | Controls & Indicators |
| Subcategory | CPU/Control Board |
| CPU Type | 314SC/DPM |
| Processing | SPEED7 architecture |
| Work Memory | 256 KB (expandable up to ~1 MB) |
| Digital Inputs | 24 inputs (DC 24 V) |
| Digital Outputs | 16 outputs (DC 24 V) |
| Bidirectional I/O | 8 DIO channels |
| Analog Inputs | 4 standard + 1 Pt100 input |
| Analog Outputs | 2 analog outputs |
| Communications | PROFIBUS-DP master, PtP, MPI |
| Programming Tool | Configurable via TIA Portal |
| Power Supply | DC 24 V (20.4…28.8 V range) |
| Weight | 2.03 lbs |
Information About 314-6CG13
The 314-6CG13 is a CPU 314SC/DPM module from VIPA’s 300S series featuring the SPEED7 processing architecture for enhanced execution speed. It integrates a mix of 24 digital inputs, 16 digital outputs, 8 bidirectional I/O, 4 analog inputs, 2 analog outputs, and a dedicated Pt100 analog input. This controller includes a configurable PROFIBUS-DP master interface and a Point-to-Point (PtP) communication port, and it can be programmed via tools like TIA Portal for Siemens-compatible project workflows. The part is now discontinued by the manufacturer, but it remains in use where legacy automation systems require direct CPU replacement.
Key Features:
- Brand & Part: VIPA CPU module designated 314-6CG13 with integrated automation control.
- Processing Technology: SPEED7 core for accelerated logic execution and networking.
- I/O Integration: Includes 24 DI, 16 DO, 8 DIO, 4 AI, 2 AO, and 1 Pt100 input for broad sensor/actuator support.
- Communications: Built-in PROFIBUS-DP master for industrial fieldbus networking.
- Protocol Interfaces: Supports MPI and PtP RS-485 communications for legacy connectivity.
- Memory: 256 KB work memory with optional extension up to around 1 MB.
- Configurable in TIA Portal: Compatible with standard Siemens engineering environments.
- Discontinuation Status: No longer manufactured, suitable for legacy replacement.
The 314-6CG13 delivers the reliability and precision required for modular PLC automation and fieldbus-based control in industrial systems.
