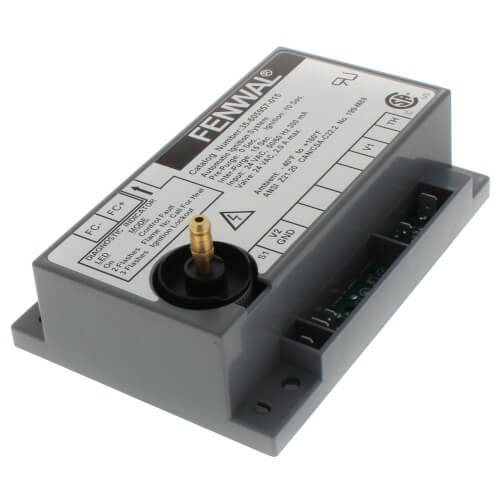

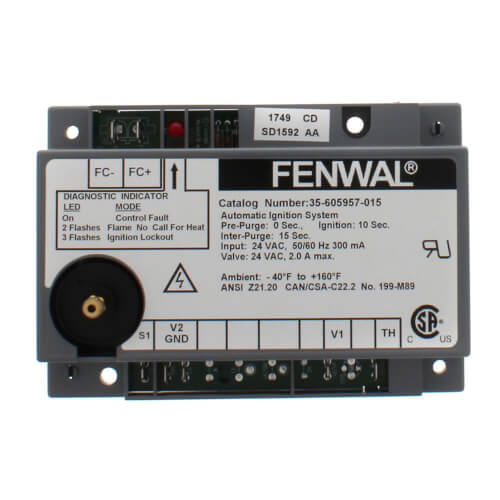

35-605957-015 | Fenwal 24 VAC Direct Spark Ignition Control (JCI G76x Replacement)
- Regular price
- $382.00
- Sale price
- $382.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 35-605957-015
Description
The Fenwal 35-605957-015 is a 24 VAC direct spark ignition (DSI) control module designed as a drop-in replacement for Johnson Controls G76x series. Featuring safe start, full-time flame sensing, and configurable purge and ignition sequences, it provides precise and reliable burner control for commercial and industrial gas-fired equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fenwal |
| Category | Heating & Ignition Parts |
| Part Number | 35-605957-015 |
| Subcategory | Ignition Modules |
| Series | 35-60 “J” Series |
| Input Power | 18–30 VAC, 50/60 Hz (Class 2 Transformer) |
| Input Current Drain | 300 mA @ 24 VAC (gas relay energized) |
| Main Gas Valve | 2.0 A max continuous |
| Ignition Type | Direct Spark Ignition (DSI) |
| Ignition Trials | 1 or 3 try versions available |
| Trial-for-Ignition Periods | 4, 6, 8, 10, or 15 seconds (customizable) |
| Prepurge Timings | None, 15, or 30 seconds |
| Interpurge Timings | None, 15, or 30 seconds |
| Flame Sensitivity | ≥ 0.3 µA (min) |
| Flame Failure Response | ≤ 0.8 seconds |
| Self-Check Rate | Once per second minimum |
| Gas Types Supported | Natural, LP, or manufactured gas |
| Spark Rate | Remote sense: 50/60 Hz; Local sense: 25/30 Hz |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| Moisture Resistance | Conformal coated, up to 95% RH non-condensing |
| Enclosure Dimensions | 4.92 × 3.32 × 2.71 in (12.50 × 8.43 × 6.88 cm) |
| Weight | 8 oz (224 g) |
Information About 35-605957-015
Part of Fenwal’s 35-60 “J” Series, the 35-605957-015 matches the footprint, wiring, and mounting of Johnson Controls G76x ignition controls, making it a seamless retrofit solution. Its microprocessor platform continuously monitors system safety, controls ignition timing, and provides diagnostic support via onboard LED fault codes. With remote or local flame sensing options, automatic reset after lockout, and multiple timing configurations, this ignition control is widely applied in furnaces, boilers, unit heaters, and commercial cooking appliances.
Key Features:
- Direct Johnson G76x Replacement: Matches footprint, wiring, and connections.
- 24 VAC Operation: Compatible with Class 2 transformers.
- Safe Start & Full-Time Flame Sensing: Enhances ignition reliability.
- Flexible Timing: Custom prepurge, interpurge, and ignition trial durations.
- Multiple Ignition Attempts: One or three-try versions for system reliability.
- Diagnostic LED: Uses Fenwal fault codes for fast troubleshooting.
- Remote or Local Sensing: Adaptable for different burner designs.
- Durable Construction: Conformal coated for moisture resistance up to 95% RH.
The 35-605957-015 delivers the reliability and precision required for modern gas heating and cooking systems.
