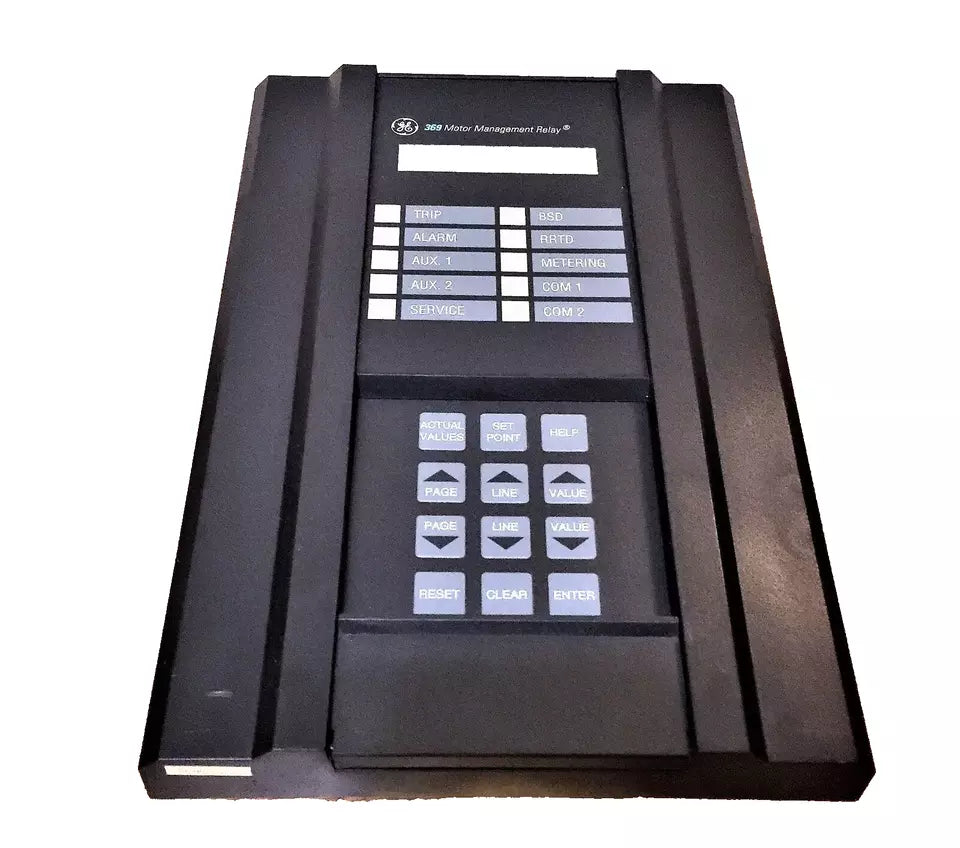

369-HI-0-M-0-0 | General Electric 369 Motor Management Relay
- Regular price
- $3,612.00
- Sale price
- $3,612.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 369-HI-0-M-0-0
Description
The GE Multilin 369-HI-0-M-0-0 is a 369 Motor Management Relay that features 50-300 VDC / 40-265 VAC, and also features an optional metering package.
Technical Specifications
| Brand | General Electric |
| Category | Controls & Indicators |
| Part Number | 369-HI-0-M-0-0 |
| Subcategory | Protective Relay |
| Communications | non-isolated RS232 port, RS485 port |
| Control Power Input Range | 110 to 250 VDC, 100 to 240 VAC at 50/60 Hz |
| Differential Switch Time Delay | <200 ms |
| Dimensions | approx: 29.6cm H x 10.7cm W x 20.5cm L |
| Event Record Triggers | power fail, alarms, self test, inhibit, trip, waveform capture |
| Operating Range | -40°C (-40°F) to +60°C (140°F) |
| Storage Range | -40°C (-40°F) to +80°C (176°F) |
Information About 369-HI-0-M-0-0
The General Electric 369-HI-0-M-0-0 is a sophisticated Protective Relay designed to enhance the safety, reliability, and efficiency of industrial control systems. This relay, categorized under Controls & Indicators, is specifically engineered to provide robust protection and monitoring capabilities, making it an essential component in critical industrial applications.
Key specifications for the 369-HI-0-M-0-0 Protective Relay include its versatile communication options, which feature both a non-isolated RS232 port and an RS485 port. These ports ensure reliable data transmission and facilitate seamless integration with other control and monitoring systems. This dual communication capability allows for flexible connectivity and easy integration into various network configurations.
The control power input range for the 369-HI-0-M-0-0 is designed to accommodate a wide range of power sources, accepting 110 to 250 VDC and 100 to 240 VAC at 50/60 Hz. This broad input range ensures the relay can be used in diverse power environments, enhancing its versatility and suitability for different industrial settings.
One of the standout features of the 369-HI-0-M-0-0 Protective Relay is its differential switch time delay, which is less than 200 milliseconds. This rapid response time is critical for protecting equipment and ensuring timely intervention during fault conditions, minimizing the risk of damage and downtime.
The relay's dimensions are approximately 29.6 cm in height, 10.7 cm in width, and 20.5 cm in length. This compact size facilitates easy installation in control panels and enclosures, optimizing space utilization without compromising on functionality or performance.
The 369-HI-0-M-0-0 is equipped with comprehensive event record triggers, including power fail, alarms, self-test, inhibit, trip, and waveform capture. These triggers provide detailed insights into system events and conditions, enabling precise diagnostics and effective troubleshooting. The ability to capture and record critical events enhances operational transparency and aids in maintaining system reliability.
The operating range of the 369-HI-0-M-0-0 spans from -40°C (-40°F) to +60°C (140°F), making it suitable for deployment in extreme environmental conditions. Additionally, the storage range extends from -40°C (-40°F) to +80°C (176°F), ensuring the relay can withstand and perform reliably even in harsh storage conditions.
In terms of construction, the 369-HI-0-M-0-0 is built with high-quality materials and advanced manufacturing processes, ensuring durability and long-term reliability. Its robust design is intended to withstand the rigors of industrial environments, providing consistent performance and reducing the need for frequent maintenance.
General Electric has also provided extensive technical documentation and support for the 369-HI-0-M-0-0, aiding in installation, configuration, and maintenance. This support ensures that users can fully leverage the relay's capabilities and maintain optimal system performance.
In summary, the General Electric 369-HI-0-M-0-0 Protective Relay is a highly capable and reliable component designed for critical industrial control applications. Its advanced communication options, broad control power input range, rapid differential switch time delay, and comprehensive event record triggers make it an invaluable asset for enhancing system protection and monitoring. With its durable construction, compact design, and wide operating and storage temperature ranges, the 369-HI-0-M-0-0 exemplifies General Electric's commitment to providing high-quality, innovative solutions for industrial automation and control.
