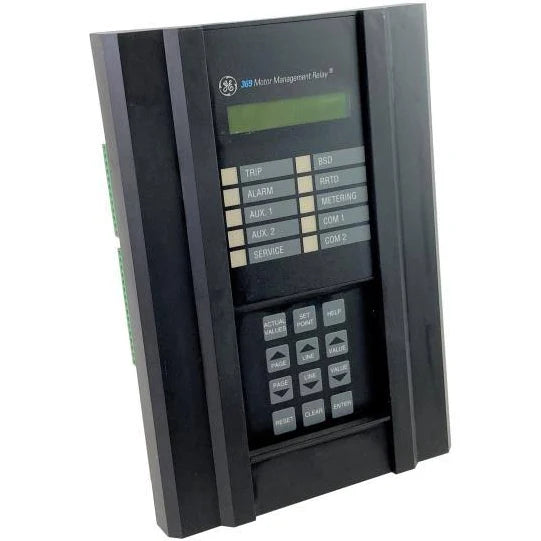

369-HI-R-0-0-0-0-0 | General Electric Motor Protection System
- Regular price
- $8,527.00
- Sale price
- $8,527.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 369-HI-R-0-0-0-0-0
Description
The 369-HI-R-0-0-0-0-0 Motor Protection System by GE Multilin is designed for medium-sized AC motors, offering advanced tools for motor life extension and system health monitoring. It features motor start data logging, waveform capture, and event reporting functionalities, aiming to reduce maintenance costs and troubleshooting time by providing comprehensive data for review.
Equipped with a 40-character liquid crystal display (LCD) and keypad, the system enables users to assign setpoints manually if not utilizing the EnerVista 369 program. The LCD displays system status messages when idle, serving as a convenient reference point for users. Additionally, system health can be assessed by monitoring the ten LEDs on the front of the case, which indicate alarm, trip, overload, and other conditions within the system.
Technical Specifications
Ambient Humidity Maximum |
Up to 95% non condensing |
Control Power Range |
110 to 250 VDC, 100 to 240 VAC at 50/60 Hz |
Fuse |
3.15 A H 250 V (5 × 20 mm) |
Insulation Class |
I |
Maximum Altitude |
2000 m (max) |
Operating Range |
-40°C to +60°C |
Software |
EnerVista 369 |
Storage Range |
-40°C to +80°C |
Information About 369-HI-R-0-0-0-0-0
The 369-HI-R-0-0-0-0-0 Motor Protection System, manufactured by GE Multilin, is tailored for medium-sized AC motors, offering an extensive array of advanced tools aimed at extending motor life and monitoring system health. Key features include motor start data logging, waveform capture, and event reporting, which contribute to reduced maintenance costs and troubleshooting time by furnishing users with comprehensive data for analysis. Additionally, the system can suggest optimal maintenance times, streamlining the motor management process.
The 369-HI-R-0-0-0-0-0 Motor Management Relay is equipped with a 40-character liquid crystal display (LCD) that, when coupled with the keypad, facilitates the assignment of setpoints, particularly useful in instances where the EnerVista 369 program is not utilized. The LCD also serves to display system status messages when inactive, providing users with an accessible reference point. System health is further ascertainable through the ten LEDs located on the front of the case, which indicate various conditions such as alarm, trip, and overload occurrences within the system.
Pre-trip alarms integrated into the relay are designed to alert users of potential ground faults, mechanical jams, undercurrents, RTD overtemperatures, and overloads, preempting a trip in the system. By enabling users to address these issues proactively, the 369-HI-R-0-0-0-0-0 system minimizes system strain and overall downtime. In the event of a trip, the cause of the trip and relevant system values are promptly displayed on the LCD or within the EnerVista 369 software program. Furthermore, the event recorder capability allows for the display of the last 512 events, facilitating the identification of recurring problems and aiding in the localization of issues consistently leading to motor trips.
Manufacturer information
Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
