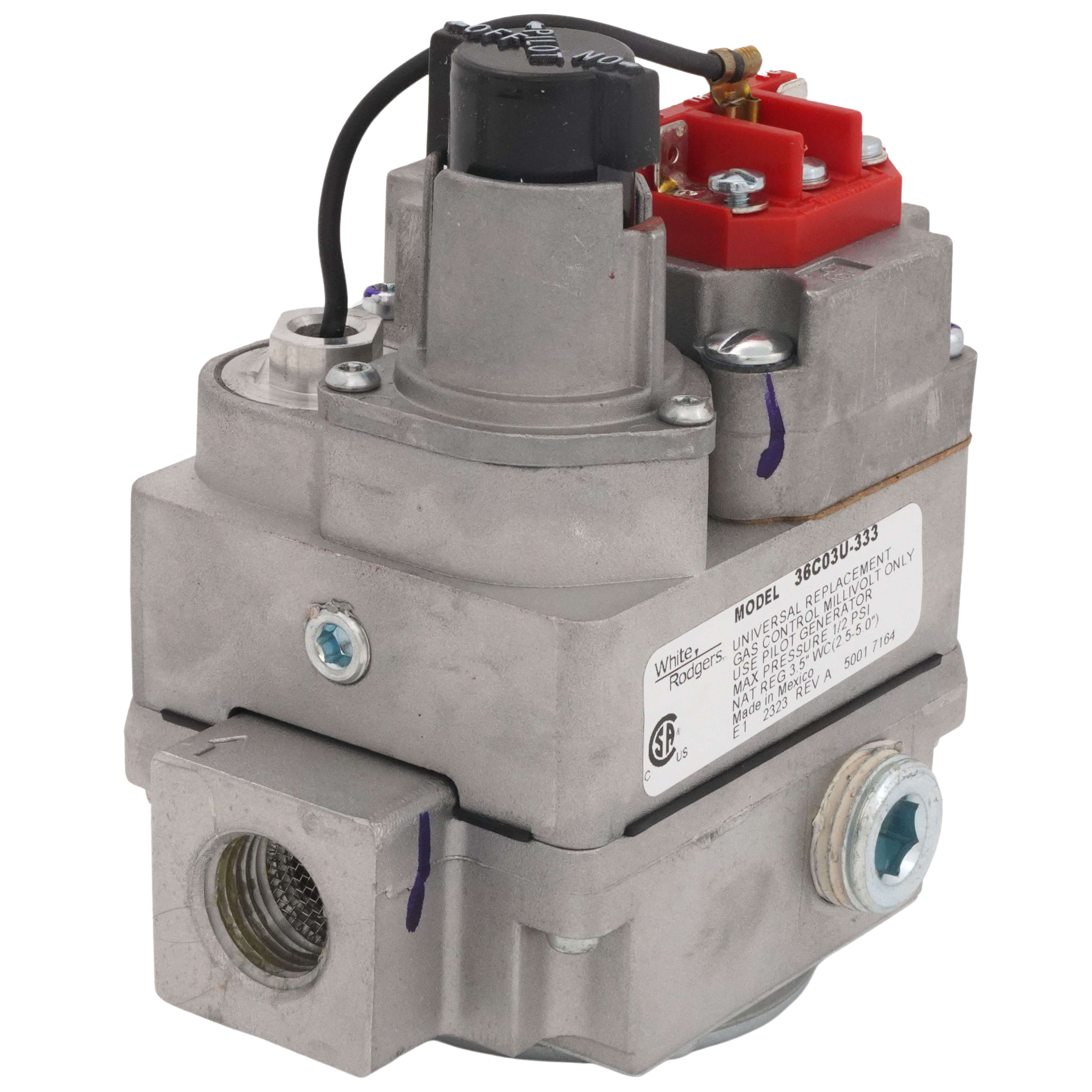

36C03U-333 | White-Rodgers Universal Gas Valve, 1/2" x 3/4"
- Regular price
- $385.00
- Sale price
- $385.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 36C03U-333
Description
The White-Rodgers 36C03U-333 Universal Gas Valve is a millivolt-operated control designed for use with natural gas systems. Featuring 1/2" inlet and 3/4" outlet connections, it supports up to 230,000 BTU and includes side outlets, reducer bushings, and an LP conversion kit for versatile installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | White-Rodgers |
| Category | HVAC Controls |
| Part Number | 36C03U-333 |
| Subcategory | Gas Valves |
| Type | Universal gas valve |
| Fuel Type | Natural Gas (convertible to LP with included kit) |
| Voltage | 750 mV |
| Inlet Size | 1/2" NPT |
| Outlet Size | 3/4" NPT |
| Capacity | 230,000 BTU |
| Side Outlets | Tapped and plugged |
| Pressure Regulation | Adjustable for natural or LP gas |
| Operation | Millivolt control system |
| Reducer Bushings | 1/2" to 3/8" and 3/4" to 1/2" included |
| Safety Features | ECO terminals (Energy Cut-Off) |
| Mounting Orientation | Horizontal or vertical |
| Ignition Type | Standing pilot systems |
| Conversion Kit | LP gas conversion kit included |
| Applications | Furnaces, boilers, heaters |
| Enclosure Protection | Durable metal body construction |
| Operating Temperature | Standard HVAC range |
| Weight | 3.00 lbs (approx. 1.36 kg) |
Information About 36C03U-333
The 36C03U-333 is part of White-Rodgers’ 36C series of universal gas valves, designed for broad compatibility with residential and light commercial heating systems. It operates using a 750 mV millivolt circuit, making it suitable for standing pilot systems without external power. The valve features both inlet and outlet connections (1/2" x 3/4") and includes side outlets that are tapped and plugged for flexible piping configurations. With included reducer bushings and an LP conversion kit, it can be easily adapted for different fuel systems. ECO terminals enhance operational safety by providing reliable thermal cutoff protection.
Key Features:
- Universal Design: Compatible with most standard millivolt systems for natural or LP gas.
- High Heating Capacity: Rated for up to 230,000 BTU, suitable for furnaces, heaters, and boilers.
- Flexible Installation: 1/2" x 3/4" ports with reducer bushings and side outlets allow easy adaptation to various systems.
- LP Conversion Kit Included: Comes with components for quick conversion from natural gas to LP applications.
- Millivolt Operation: Runs on a 750 mV system, eliminating the need for external electrical power.
- Safety Protection: ECO terminals ensure safe shutdown in case of overheating or system failure.
- Rugged Construction: Built from durable materials for long service life in residential and commercial settings.
- Simple Maintenance: Universal design and standard fittings simplify replacement and servicing.
The 36C03U-333 delivers the reliability and precision required for safe, efficient control of gas flow in natural and LP heating systems.
