371DST-120G | Federal Signal 120 VAC Commander Double-Flash Strobe Light, Green Dome
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 371DST-120G
Description

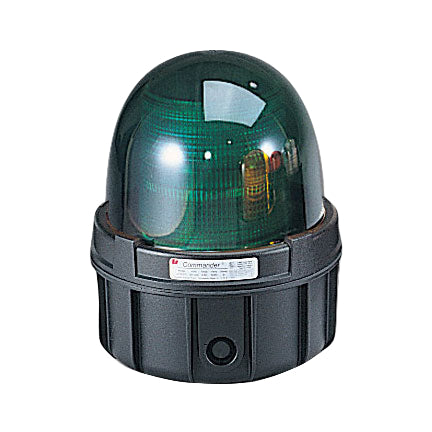

The Federal Signal 371DST-120G is a 120 VAC Commander double-flash strobe warning light designed for hazardous locations. Featuring a green polycarbonate dome and rugged die-cast aluminum housing, it provides bright, reliable visual signaling in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Federal Signal |
| Category | Signaling Devices |
| Part Number | 371DST-120G |
| Subcategory | Strobe Lights |
| Series | Commander Series |
| Technology | Xenon Strobe |
| Flash Pattern | Double Flash |
| Voltage Rating | 120 VAC, 50/60 Hz |
| Current Draw | 0.6 A |
| Power Consumption | 72 Watts (approx.) |

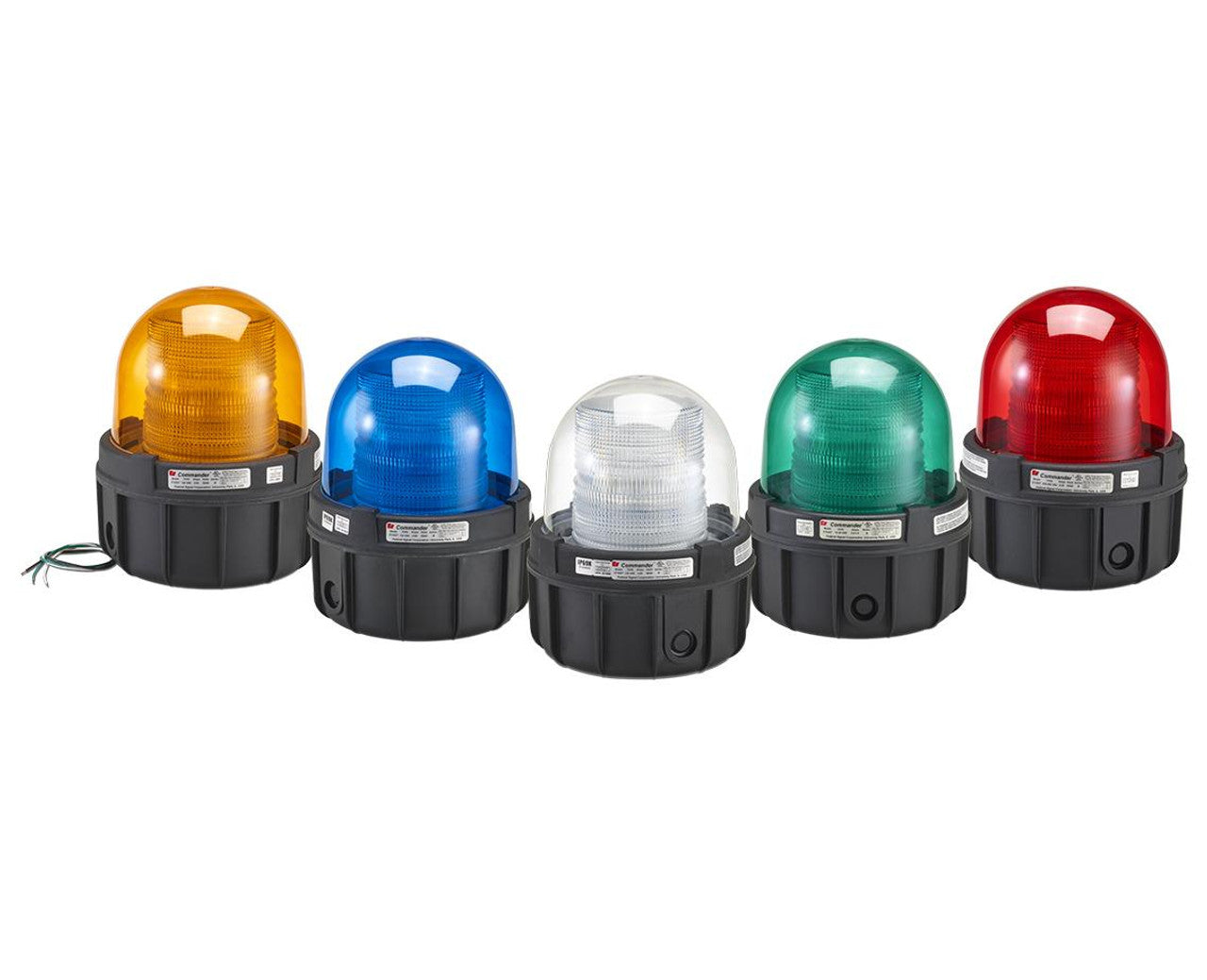

| Dome Color | Green (Amber, Blue, Clear, and Red also available) |
| Housing Material | Die-Cast Aluminum |
| Dome Material | Polycarbonate |
| Environmental Rating | NEMA 4X, IP66, IP69K |
| Operating Temperature | -31°F to 104°F (-35°C to 40°C) |
| Lamp Life | 10,000 Hours (average) |
| Certifications | UL Listed, cUL Listed, CSA Certified |
| Mounting Options | Surface or 1-Inch NPT Pipe |
| Dimensions | 9.13 in Dia x 11.38 in H (fixture); 12.37 in W x 14.62 in H (packaged) |
| Application | Hazardous Location Visual Signaling |
| Weight | 11.0 lb (approx.) |
Information About 371DST-120G
The 371DST-120G is part of Federal Signal’s Commander Series, developed for hazardous location visual signaling where high-intensity strobe lighting is essential. This double-flash unit operates on 120 VAC at 50/60 Hz and uses a xenon strobe tube for powerful illumination with an average lamp life of 10,000 hours. The design includes a conformal-coated PCB, a polycarbonate dome, and a die-cast aluminum base, offering superior durability against corrosion, dust, and moisture. UL, cUL, and CSA certifications confirm its suitability for Class I, Division 2; Class II, Division 2; and Class III applications.
Key Features:
- Double-Flash Xenon Strobe: Provides high-intensity dual flashes for enhanced visibility.
- 120 VAC Power: Operates reliably on 120 VAC at 50/60 Hz with 0.6 A current draw.
- Rugged Construction: Die-cast aluminum housing and polycarbonate dome withstand harsh conditions.
- Hazardous Location Certified: UL, cUL, and CSA listed for Class I Div 2, Class II Div 2, and Class III.
- Environmental Protection: NEMA 4X, IP66, and IP69K ratings ensure resistance to dust, water, and corrosion.
- Flexible Mounting: Surface mount or integrated 1-inch NPT pipe mounting options.
- Wide Temperature Range: Operates from -31°F (-35°C) to 104°F (40°C).
- Long Service Life: Xenon strobe tube rated for up to 10,000 hours of operation.
The 371DST-120G delivers the reliability and precision required for hazardous location strobe signaling in industrial safety systems.
