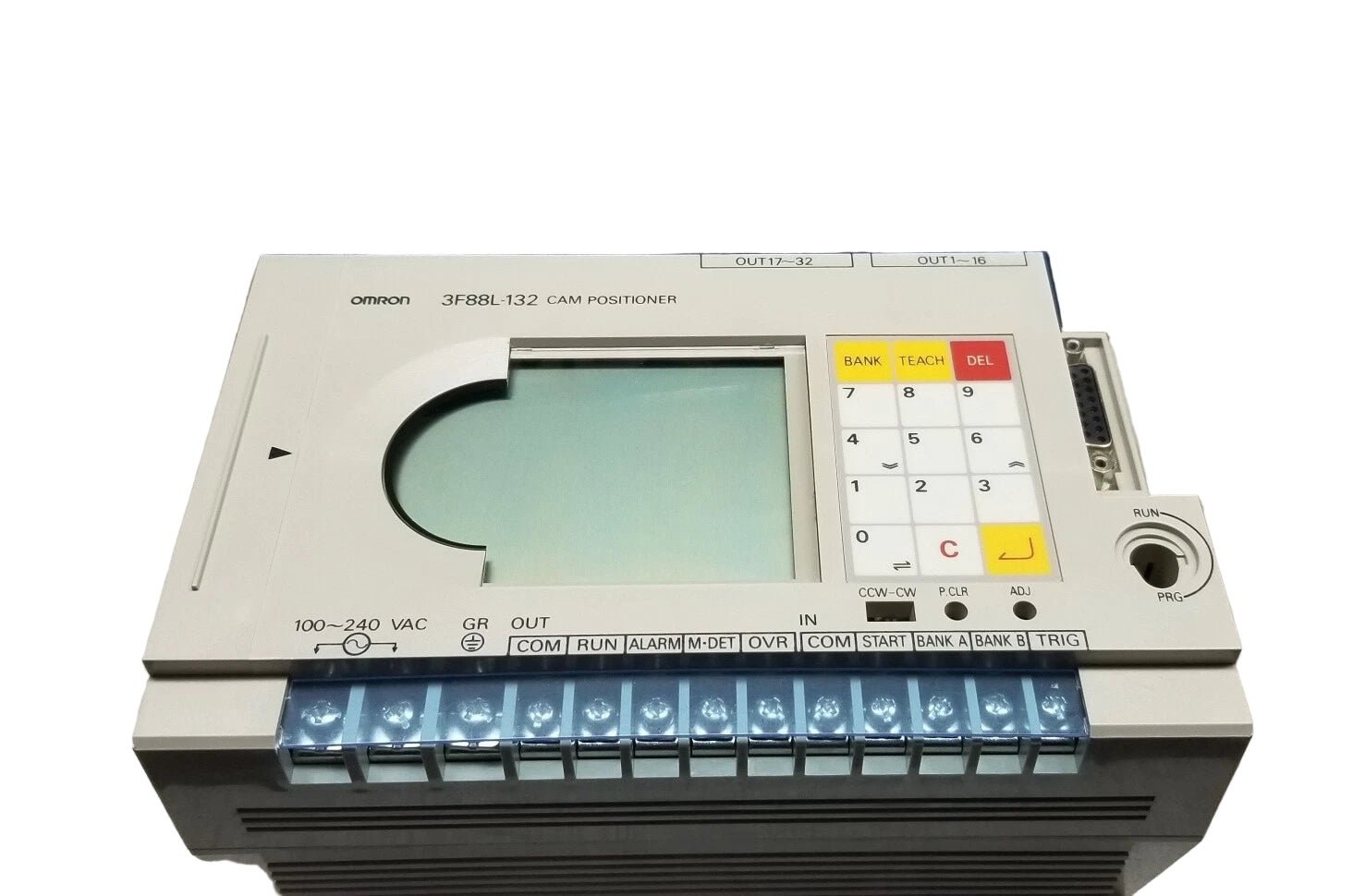

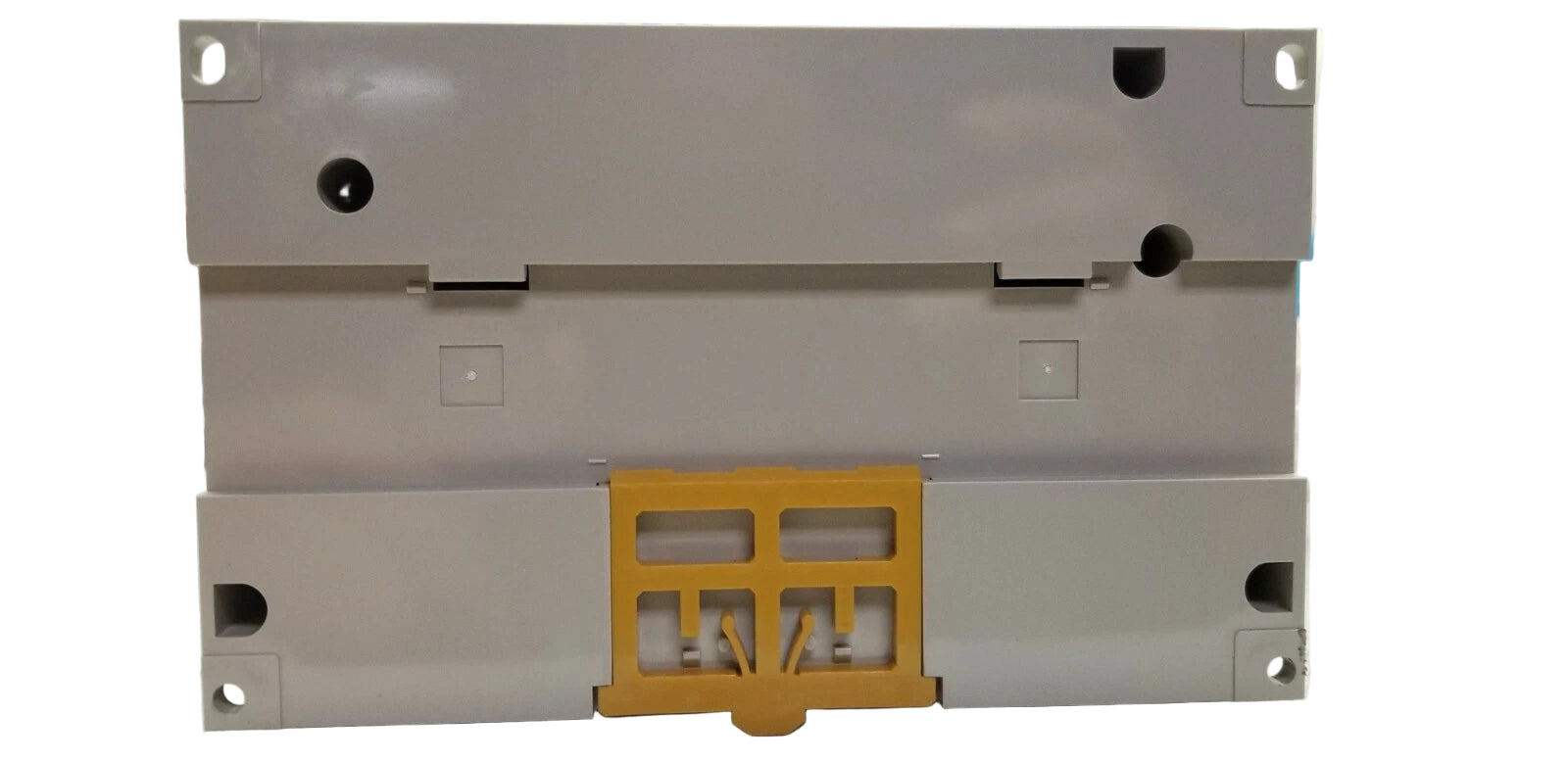

3F88L-132-SD | Omron Cam Positioner 32 Outputs 100–240 VAC 12–30 VDC Transistor
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3F88L-132-SD
Description
The Omron 3F88L-132-SD CAM Positioner is a precision motion control device designed to provide up to 32 programmable cam outputs for automated machinery. Operating on 100–240 VAC at 50/60 Hz, it features open-collector transistor outputs rated for 12–30 VDC switching, enabling flexible integration with PLCs, sensors, and actuators.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control Equipment |
| Part Number | 3F88L-132-SD |
| Subcategory | Cam Positioners |
| Series | 3F88L Series |
| Type | Electronic Cam Positioner |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Number of Outputs | 32 Cam Outputs |
| Output Type | Transistor (Open-Collector) |
| Output Switching Capacity | 12–30 VDC |
| Input Type | Encoder Signal (Rotary or Linear) |
| Memory Type | EEPROM (Non-Volatile) |
| Resolution | Adjustable (User Configurable) |
| Mounting Type | Panel Mount |
| Programming | Front-Panel or Serial Interface (depending on model) |
| Protection Features | Overvoltage and Signal Error Protection |
| Operating Temperature | 0°C to 55°C |
| Enclosure | Industrial Metal / Reinforced Resin Housing |
| Indicators | LED Status Indicators for Output and Power |
| Application | Motion Control, Indexing, Timing, Synchronization |
| Country of Origin | Japan |
| Weight | Approx. 1.2 lbs |
Information About 3F88L-132-SD
The 3F88L-132-SD is part of the Omron 3F88L Series of cam positioners, developed for high-precision motion sequencing and machine coordination. This model offers 32 independent cam outputs, each programmable through adjustable resolution settings for precise angular or linear position control. The unit stores configuration data in non-volatile EEPROM memory, ensuring retention during power loss. Designed for use with rotary encoders, it converts rotational position data into discrete switching signals for timing, cutting, indexing, or packaging operations. Its compact, panel-mounted design and user-friendly interface make it ideal for use in automation equipment requiring synchronized control.
Key Features:
- 32 Programmable Cam Outputs: Provides independent control for complex motion and process timing.
- Flexible Power Supply: Operates on 100–240 VAC at 50/60 Hz for universal installation.
- Open-Collector Outputs: Transistor-based outputs rated for 12–30 VDC switching capacity.
- Adjustable Resolution: Allows fine-tuning of position accuracy for rotary and linear applications.
- EEPROM Memory Storage: Retains cam profiles and settings without the need for battery backup.
- Encoder Interface: Synchronizes cam output with rotary position signals for precise control.
- Panel-Mount Design: Compact and easy to install in standard industrial control panels.
- Discontinued Model: Used primarily in maintenance, retrofit, or support of existing Omron systems.
The 3F88L-132-SD delivers the reliability and precision required for cam-based motion control and synchronization in packaging, assembly, and processing machinery.
