Product Description P/N: 3G2A6-PRO15-E
Description

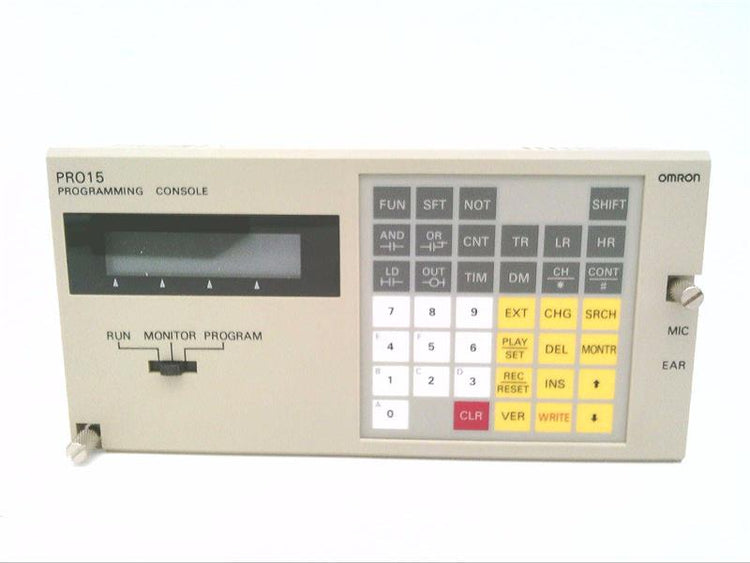

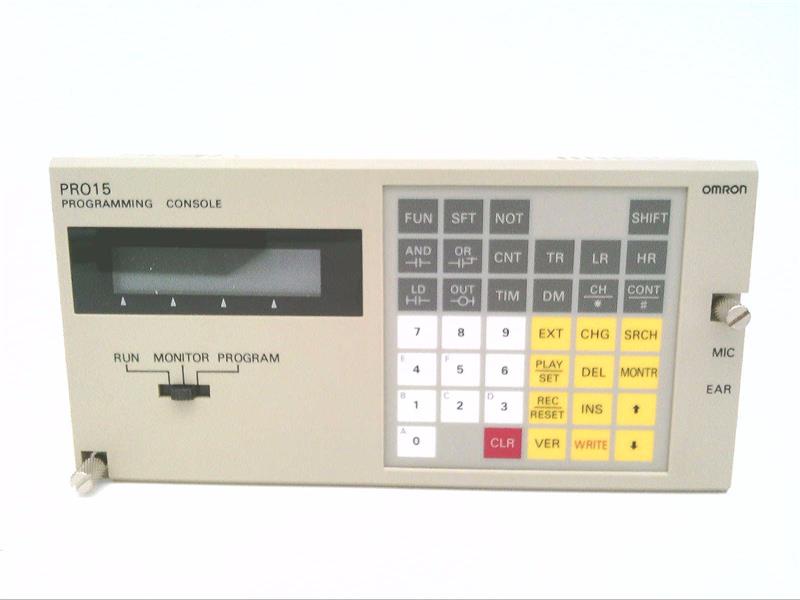

The Omron 3G2A6-PRO15-E is a horizontal programming console designed for SYSMAC K-type PLCs. It features an integrated backlit display and keypad, enabling intuitive configuration, monitoring, and debugging of programmable controllers in both online and offline modes.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Omron |
| Category |
PLCs/Machine Control
|
| Part Number | 3G2A6-PRO15-E |
| Subcategory | PLC Programming Terminal |
| Series | SYSMAC |
| Orientation | Horizontal |
| Backlight | Included |
| CPU Mounting | Suppoted |
| Mounting Base | Supported |
| Weight | 0.33 lbs |
| Keypad | Numeric and function keys |
| Programming Modes | Program, Monitor, Run, Debug |
| Connectivity Options | 3G2C7-CN122 (1 m), 3G2C7-CN512 (50 cm) |
| Adapter Compatibility | 3G2A5-AP001-E |
| Base Compatibility | 3G2A5-BP001 |
| Mounting Type | Direct to CPU or base mount |
Information About 3G2A6-PRO15-E
The 3G2A6-PRO15-E is a compact and user-friendly programming console for Omron’s SYSMAC series PLCs. With built-in backlight and a horizontal layout, it provides clear visibility in low-light environments and direct access to program, monitor, and run modes. The console supports connection via either a 1-meter (3G2C7-CN122) or 50 cm (3G2C7-CN512) cable, and can be mounted directly to the PLC CPU or on a console base (3G2A5-BP001) using the adapter (3G2A5-AP001-E).
The console’s keypad includes numeric and function keys for efficient navigation and data entry. It offers a wide range of functionality beyond basic programming, including program verification, I/O monitoring, I/O table comparison, and bit forcing. With support for multiple operation modes and direct hardware connection, it’s a versatile tool for engineers and technicians working with Omron K-type PLCs.
Key Features:
- Horizontal Design: Streamlined form factor allows ergonomic usage and integration with various console base options.
- Backlit LCD Display: Enhances visibility in industrial settings, improving usability in low-light environments.
- Full Keypad Interface: Includes numeric and function keys for program entry, monitoring, and system navigation.
- Direct CPU Mounting: Can be attached directly to the CPU or mounted using the 3G2A5-BP001 base and adapter.
- Cable Compatibility: Connects with either 3G2C7-CN122 (1 m) or 3G2C7-CN512 (50 cm) cables for flexible setup.
- Multi-Mode Operation: Supports program, monitor, run, and debug modes to suit different stages of control logic development.
- Advanced Monitoring Tools: Offers I/O table editing, I/O monitoring, bit forcing, and program comparison features.
- Online & Offline Programming: Allows code development and system verification with or without a live PLC connection.
The 3G2A6-PRO15-E is a reliable and functional programming console that simplifies programming, monitoring, and maintenance of Omron SYSMAC K-type PLC systems.
