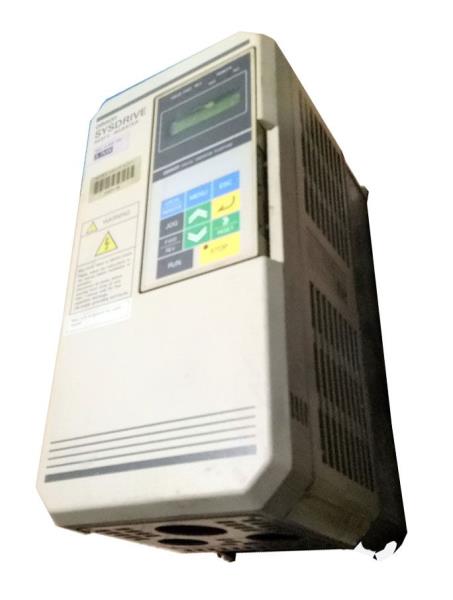

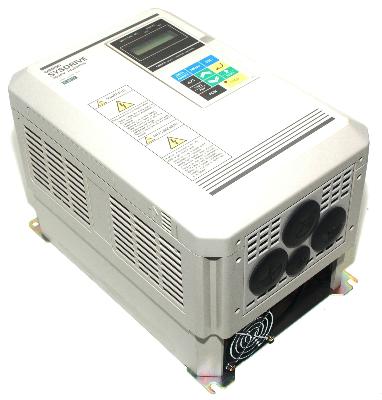

3G3FV-A4004-CE | Omron 400 VAC 3-Phase Variable Frequency Drive 0.4 kW
- Regular price
- $782.00
- Sale price
- $782.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3FV-A4004-CE
Description
The Omron 3G3FV-A4004-CE AC Variable Frequency Drive (VFD) is a compact inverter designed to control the speed and torque of three-phase AC induction motors. Operating on a 400 VAC three-phase power supply, it delivers up to 0.4 kW of motor capacity for precision control in light industrial and automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | 3G3FV-A4004-CE |
| Subcategory | Variable Frequency Drive (VFD) |
| Series | 3G3FV |
| Input Voltage | 400 VAC, three-phase |
| Input Frequency | 50/60 Hz |
| Input Current | 1.8 A |
| Output Power | 0.4 kW (0.5 HP equivalent) |
| Apparent Power Rating | 1.4 kVA |
| Output Frequency Range | 0.1 – 400 Hz |
| Control Method | PWM (Pulse Width Modulation) |
| Motor Compatibility | Three-phase AC induction motors |
| Protection Features | Overcurrent, overvoltage, ground fault, and overload protection |
| Cooling Method | Natural convection (fanless design) |
| Display Type | LED or digital keypad (model dependent) |
| Mounting Type | Panel or wall-mounted |
| Operating Temperature Range | -10°C to +50°C |
| Enclosure Rating | IP20 (open type) |
| Part Status | Discontinued by manufacturer |
| Compliance | CE Certified |
| Dimensions | Approx. 6.0" H × 3.5" W × 4.0" D |
| Weight | 2.9 lb (1.3 kg) |
Information About 3G3FV-A4004-CE
The 3G3FV-A4004-CE is part of Omron’s 3G3FV Series of AC inverter drives, engineered for dependable motor control in a wide range of applications. This model operates on a 400 VAC three-phase input and supports both 50 Hz and 60 Hz systems, with a rated output power of 0.4 kW and an output current of 1.8 amps. It incorporates PWM (Pulse Width Modulation) control technology to ensure smooth motor performance, reduced vibration, and enhanced energy efficiency. Featuring built-in motor overload protection, adjustable acceleration/deceleration settings, and digital control interfaces, the 3G3FV-A4004-CE is suitable for conveyors, pumps, fans, and small machinery. Although discontinued by the manufacturer, it remains serviceable and commonly repaired to maintain legacy automation systems.
Key Features:
- Three-Phase Input: Operates on 400 VAC power for industrial motor control applications.
- Variable Frequency Output: Provides adjustable motor speed control for enhanced performance.
- PWM Control Technology: Ensures smooth, efficient, and low-noise motor operation.
- Rated Output Power: 0.4 kW with an output current of 1.8 A for small motor applications.
- Built-In Protection: Includes overcurrent, overvoltage, and motor overload safeguards.
- Programmable Parameters: Allows custom acceleration, deceleration, and braking settings.
- Digital Control Interface: Supports external control inputs for automated operation.
- Discontinued Model Support: Ideal for repair or replacement in existing Omron 3G3FV installations.
The 3G3FV-A4004-CE delivers the reliability and precision required for variable-speed motor control in compact industrial systems.
