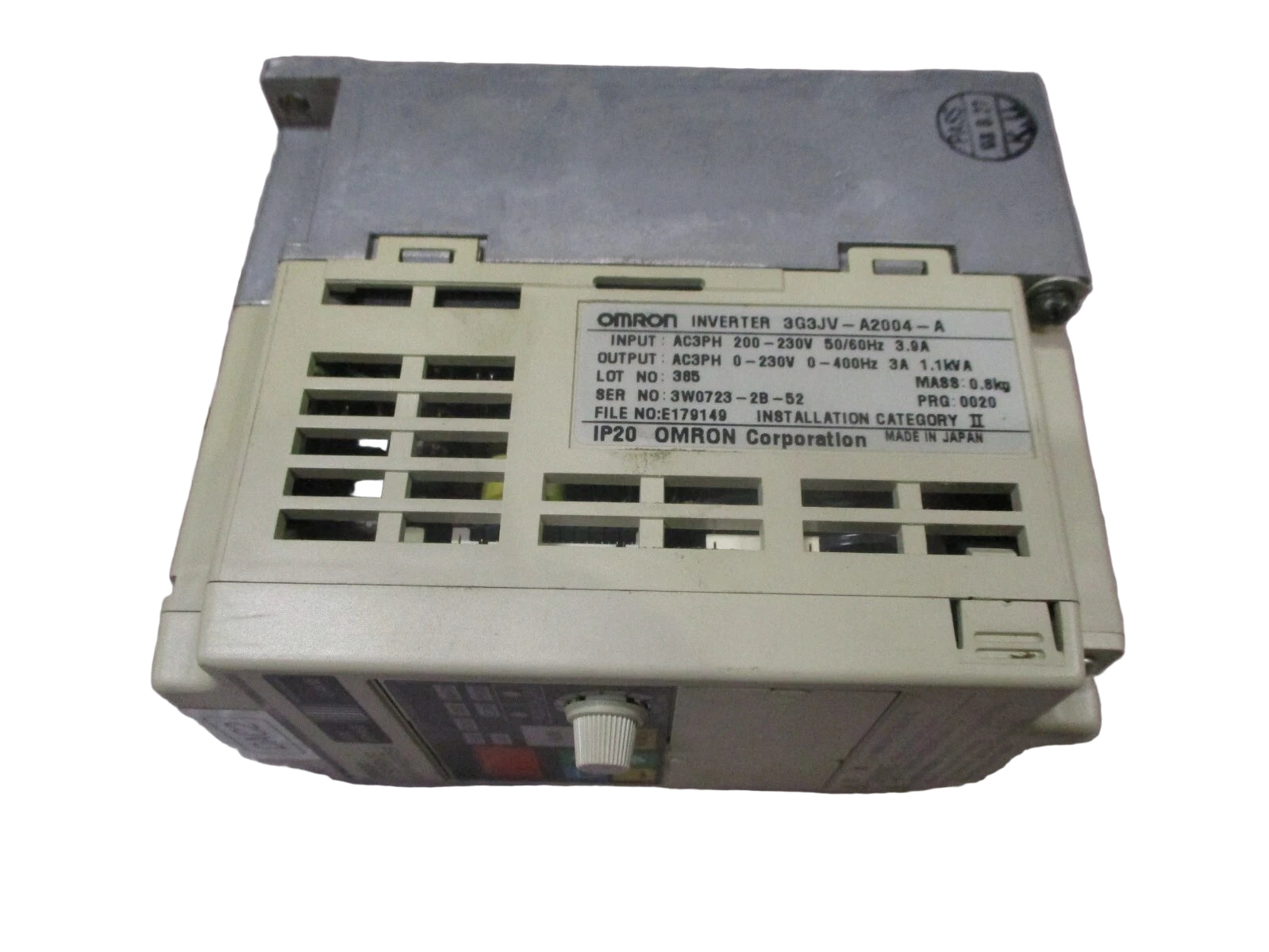

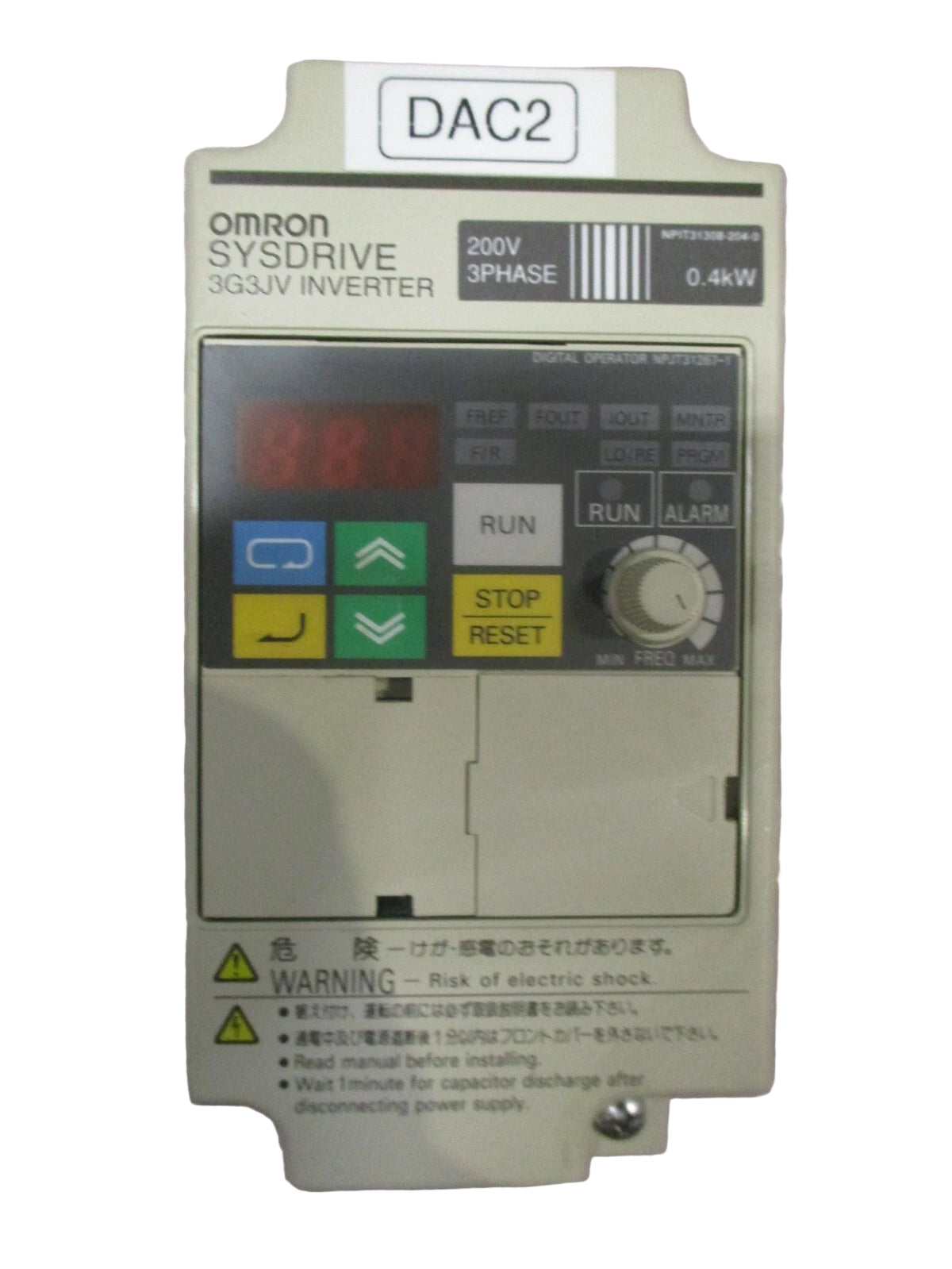

3G3JV-A2004-A | Omron Micro Inverter Motor Controller 230VAC DIN Mount
- Regular price
- $745.00
- Sale price
- $745.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3JV-A2004-A
Description
The Omron 3G3JV-A2004-A Motor Controller is a compact micro inverter designed for efficient speed and torque control of AC induction motors. Operating on a single-phase 230 VAC supply, it provides stable motor performance through advanced PWM control and multi-function relay output. With its DIN rail mounting option and compact size, the 3G3JV-A2004-A offers a cost-effective and space-saving solution for small automation and variable speed drive applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motor Drives and Controls |
| Part Number | 3G3JV-A2004-A |
| Subcategory | Motor Controllers |
| Series | 3G3JV Series |
| Type | Micro Inverter |
| Supply Voltage | 230 VAC (Single-Phase) |
| Output Type | Multi-Function Relay |
| Control Method | Open-Loop V/f Control |
| Frequency Range | 0.5–400 Hz (typical) |
| Rated Output Power | Approx. 0.4 kW (model-dependent) |
| Mounting Style | DIN Rail or Panel Mount |
| Enclosure Rating | IP20 |
| Dimensions | 128 × 68 × 102 mm (H × W × D) |
| Features | Optional DIN-rail bracket, Electronic Protection Circuits |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Communication | Model-dependent (standard analog/digital input) |
| Protection Features | Overvoltage, Overcurrent, Overload, Overheat, Ground Fault |
| Display | LED/LCD Status Indicators (series dependent) |
| Compliance | CE, UL, cUL |
| Application | Fans, Pumps, Conveyors, Small Machine Drives |
| Country of Origin | Japan |
| Weight | Approx. 1.2 lbs (0.55 kg) |
Information About 3G3JV-A2004-A
The 3G3JV-A2004-A is part of Omron’s 3G3JV Series, a family of micro inverters developed for compact, reliable, and easy-to-use motor control in industrial and OEM environments. This model supports open-loop V/f control, allowing precise regulation of motor speed and acceleration across a wide voltage range. It features an integrated multi-function relay output for flexible control signaling and optional DIN rail mounting for simplified installation. Designed with advanced electronic protection, the inverter offers safeguards against overcurrent, overvoltage, overheating, and ground faults. Suitable for conveyors, fans, pumps, and small machinery, the 3G3JV-A2004-A combines Omron’s proven reliability with straightforward operation for everyday motion control needs.
Key Features:
- Micro Inverter Design: Compact AC drive for small motor control applications.
- Single-Phase 230 VAC Input: Ideal for light-duty and compact automation systems.
- Open-Loop V/f Control: Provides efficient and stable speed regulation for induction motors.
- Multi-Function Relay Output: Enables customizable control and monitoring options.
- Optional DIN Rail Mounting: Simplifies installation in tight control panels.
- Integrated Protection Functions: Includes overload, overvoltage, overcurrent, and thermal protection.
- Compact Dimensions: 128 × 68 × 102 mm enclosure saves space in machine control systems.
- Reliable Performance: Designed for continuous duty in industrial and OEM environments.
The 3G3JV-A2004-A delivers the reliability and precision required for compact automation, motor control, and small machine drive systems.
