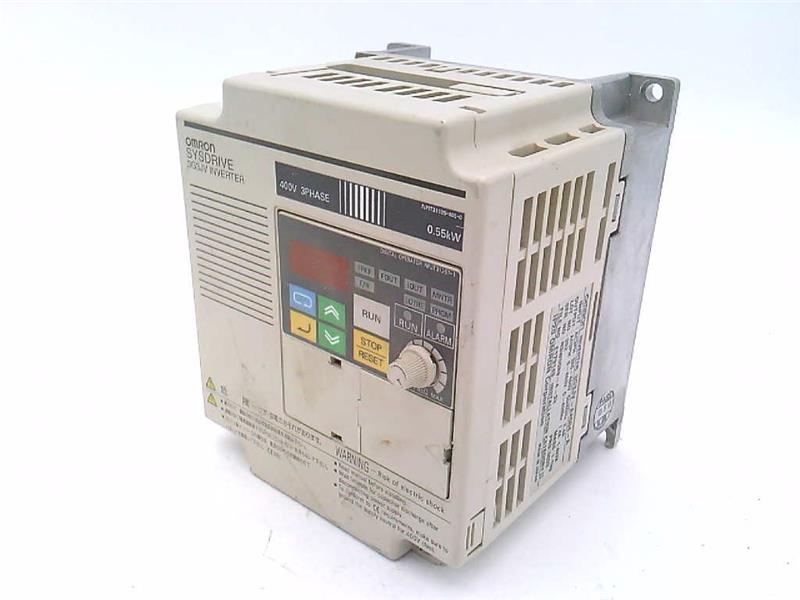

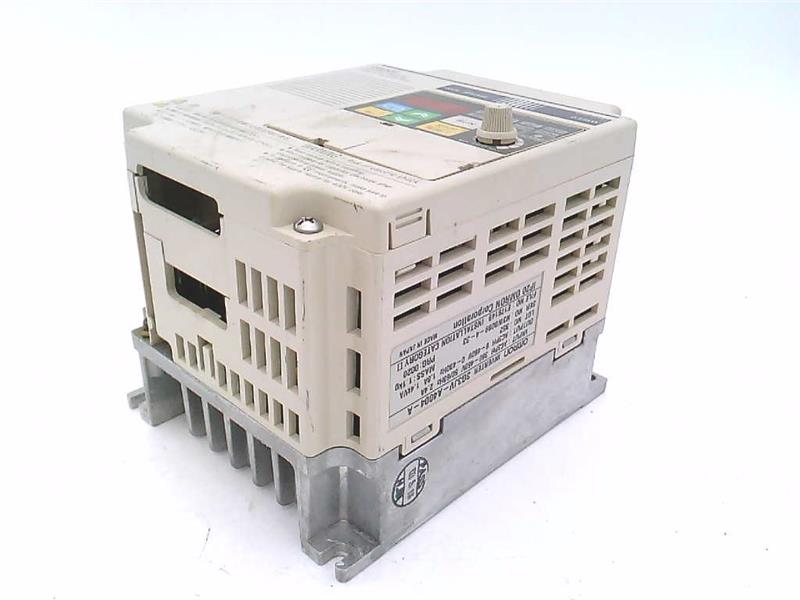

3G3JV-A4004-A | Omron Inverter Drive
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3JV-A4004-A
Description
The Omron 3G3JV-A4004-A is a compact 1 HP three-phase AC inverter drive designed for variable-speed motor control. Featuring a 460 VAC input and a 1.8 A output, this DIN-rail mountable unit in the SYSDRIVE 3G3JV series provides reliable, efficient motor performance in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Drives
|
| Part Number | 3G3JV-A4004-A |
| Subcategory | Drives |
| Series | SYSDRIVE 3G3JV |
| Output Power | 1 HP (0.75 kW) |
| Input Voltage | 3-phase, 460 VAC |
| Output Current | 1.8 A |
| Frequency Range | 0.5 – 400 Hz |
| Mounting | DIN-rail or panel mount |
| Enclosure Rating |
IP20 |
| Input Signal Types | Analog (0–10 V, 4–20 mA), Digital |
| Communication | RS-485 (MEMOBUS via optional adapter) |
| Standards Compliance | CE, UL, cUL, EMC |
| Cooling Method | Self-cooled (fan built-in) |
| Dimensions (H×W×D) | Approx. 128 × 108 × 99 mm |
| Weight | 2.84 lbs |
Information About 3G3JV-A4004-A
The 3G3JV-A4004-A is a compact AC inverter drive from Omron, designed for precise motor speed control in small to medium industrial applications. Part of the SYSDRIVE 3G3JV series, it delivers 1 HP output with 460 VAC three-phase input and supports multiple control features in a space-saving, DIN-mountable design. Though discontinued, it remains available through aftermarket and surplus automation suppliers.
Key Features:
- Omron Engineered: Built for efficient, reliable motor control in factory and OEM applications.
- 1 HP Output: Delivers 0.75 kW of power with a rated output current of 1.8 A.
- Three-Phase Input: Operates on 460 VAC input voltage, suitable for high-efficiency installations.
- Compact Housing: IP20-rated enclosure with dimensions of approx. 128 × 108 × 99 mm, ideal for tight panels.
- Built-In Potentiometer: Front-panel speed adjustment via dial simplifies on-site setup and tuning.
- Advanced Motor Control: Includes slip compensation, DC injection braking, torque boost, and stall prevention.
- Versatile I/O: Accepts analog signals (0–10 V, 4–20 mA), and offers digital input/output and analog feedback.
- RS-485 Communication: Optional support for Modbus/MEMOBUS networks for remote control and monitoring.
- Standards Certified: Complies with CE, UL, and cUL standards for global industrial use.
- Legacy Support: Though discontinued, units remain available from trusted industrial resellers with warranty options.
The 3G3JV-A4004-A remains a trusted solution for legacy motor control systems that require reliable performance, flexible setup, and space-efficient installation. Its continued availability through refurbished suppliers ensures long-term support for existing automation platforms.
Description
The Omron 3G3JV-A4004-A is a compact 1 HP three-phase AC inverter drive designed for variable-speed motor control. Featuring a 460 VAC input and a 1.8 A output, this DIN-rail mountable unit in the SYSDRIVE 3G3JV series provides reliable, efficient motor performance in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Drives
|
| Part Number | 3G3JV-A4004-A |
| Subcategory | Drives |
| Series | SYSDRIVE 3G3JV |
| Output Power | 1 HP (0.75 kW) |
| Input Voltage | 3-phase, 460 VAC |
| Output Current | 1.8 A |
| Frequency Range | 0.5 – 400 Hz |
| Mounting | DIN-rail or panel mount |
| Enclosure Rating |
IP20 |
| Input Signal Types | Analog (0–10 V, 4–20 mA), Digital |
| Communication | RS-485 (MEMOBUS via optional adapter) |
| Standards Compliance | CE, UL, cUL, EMC |
| Cooling Method | Self-cooled (fan built-in) |
| Dimensions (H×W×D) | Approx. 128 × 108 × 99 mm |
| Weight | 2.84 lbs |
Information About 3G3JV-A4004-A
The 3G3JV-A4004-A is a compact AC inverter drive from Omron, designed for precise motor speed control in small to medium industrial applications. Part of the SYSDRIVE 3G3JV series, it delivers 1 HP output with 460 VAC three-phase input and supports multiple control features in a space-saving, DIN-mountable design. Though discontinued, it remains available through aftermarket and surplus automation suppliers.
Key Features:
- Omron Engineered: Built for efficient, reliable motor control in factory and OEM applications.
- 1 HP Output: Delivers 0.75 kW of power with a rated output current of 1.8 A.
- Three-Phase Input: Operates on 460 VAC input voltage, suitable for high-efficiency installations.
- Compact Housing: IP20-rated enclosure with dimensions of approx. 128 × 108 × 99 mm, ideal for tight panels.
- Built-In Potentiometer: Front-panel speed adjustment via dial simplifies on-site setup and tuning.
- Advanced Motor Control: Includes slip compensation, DC injection braking, torque boost, and stall prevention.
- Versatile I/O: Accepts analog signals (0–10 V, 4–20 mA), and offers digital input/output and analog feedback.
- RS-485 Communication: Optional support for Modbus/MEMOBUS networks for remote control and monitoring.
- Standards Certified: Complies with CE, UL, and cUL standards for global industrial use.
- Legacy Support: Though discontinued, units remain available from trusted industrial resellers with warranty options.
The 3G3JV-A4004-A remains a trusted solution for legacy motor control systems that require reliable performance, flexible setup, and space-efficient installation. Its continued availability through refurbished suppliers ensures long-term support for existing automation platforms.
