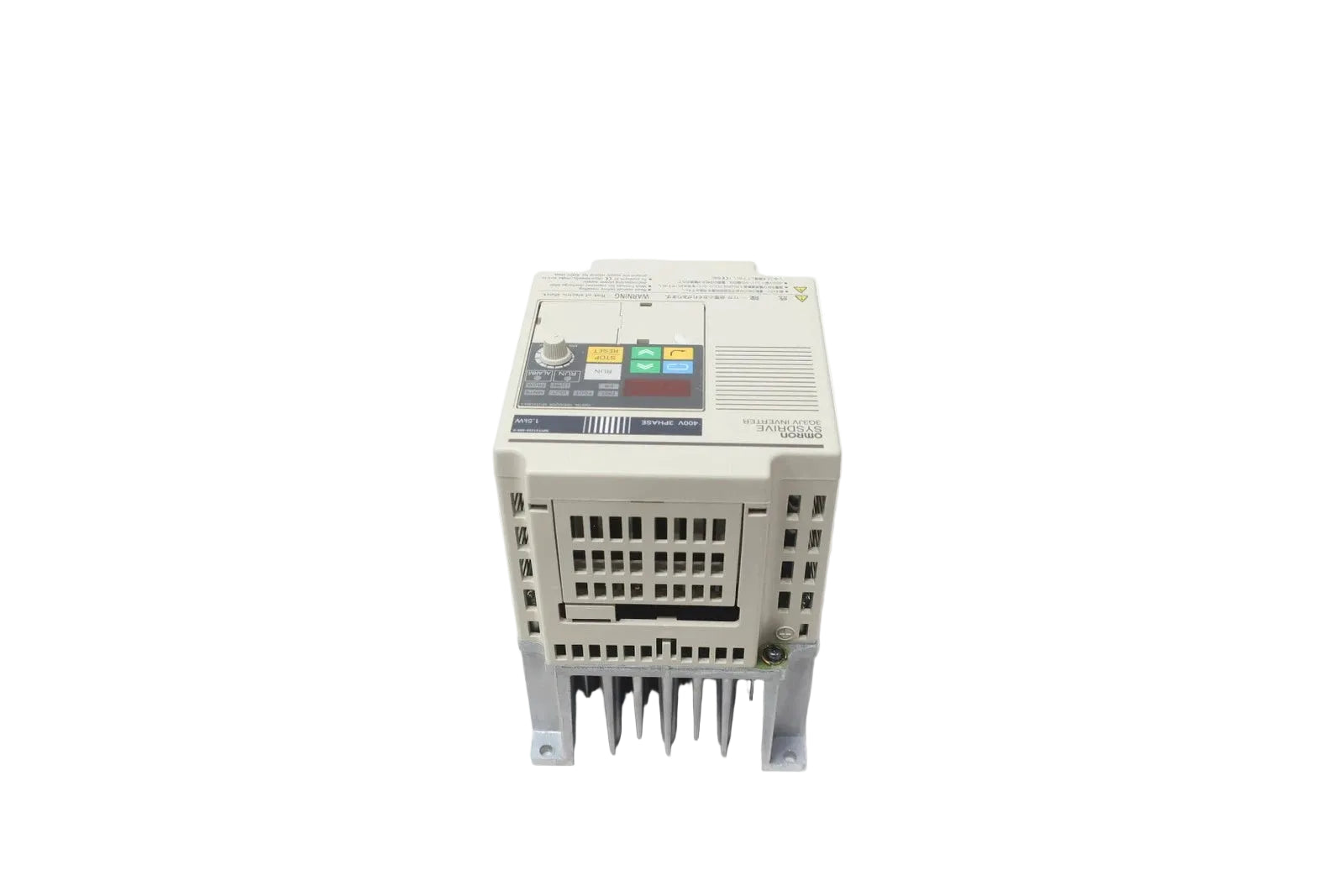

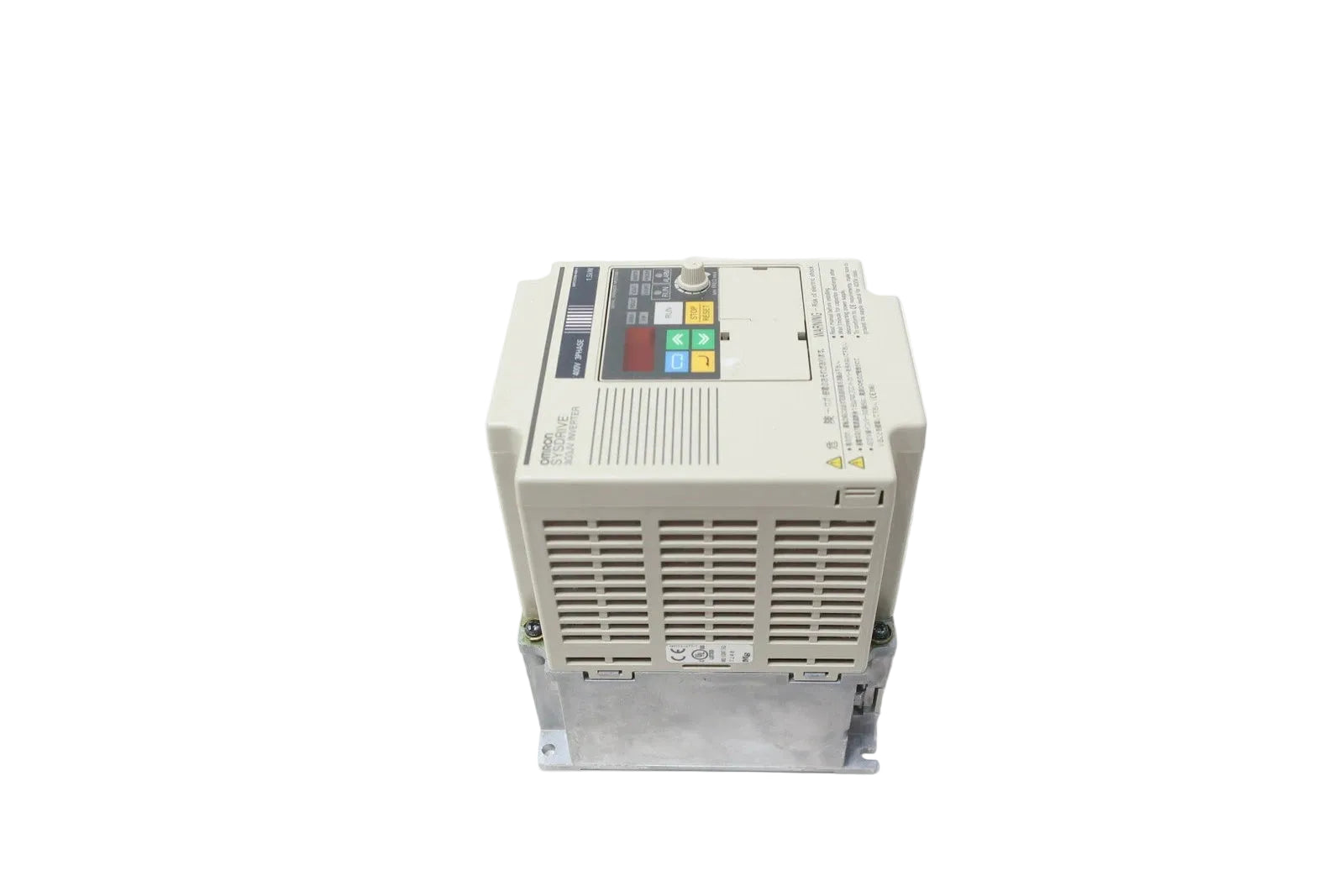

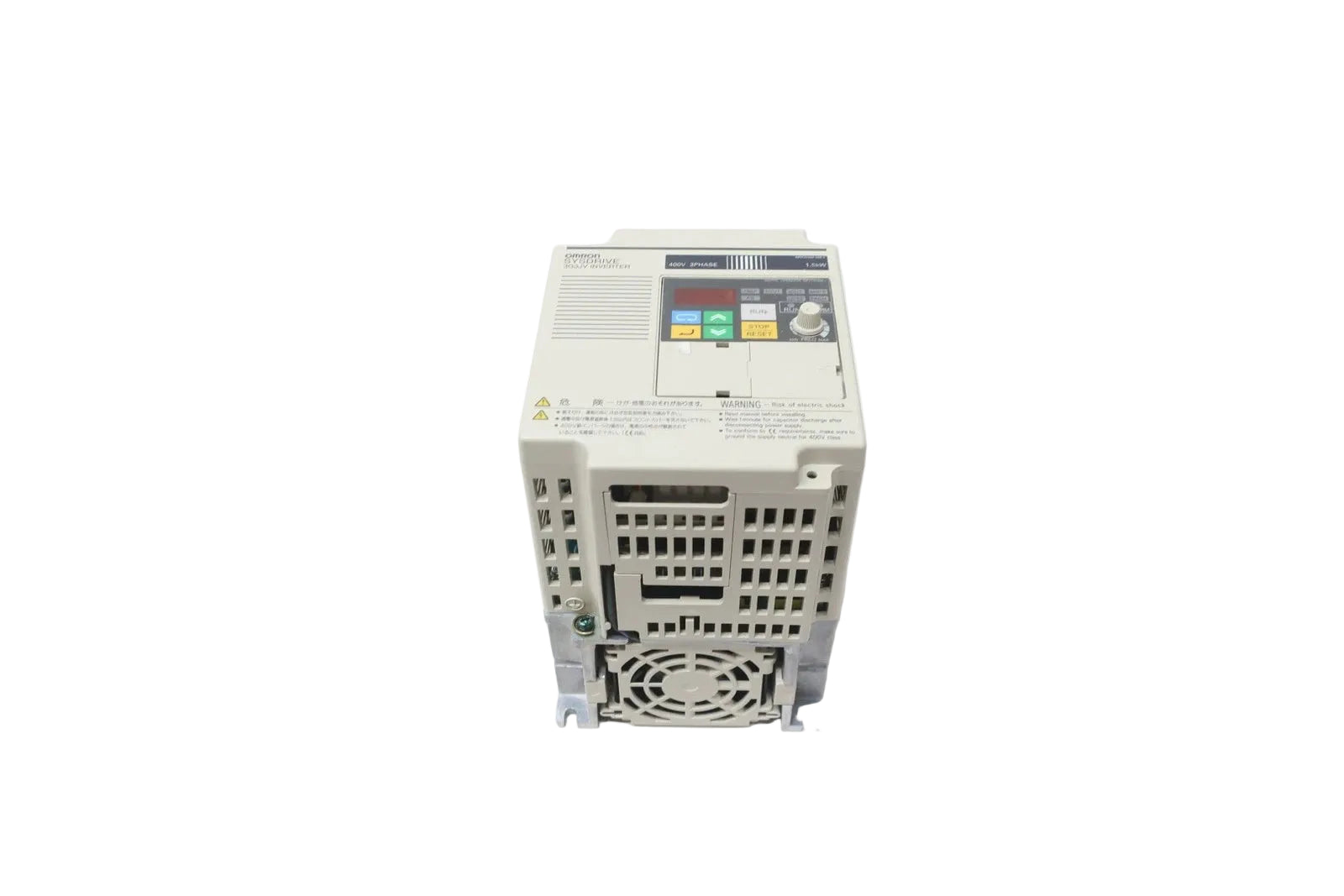

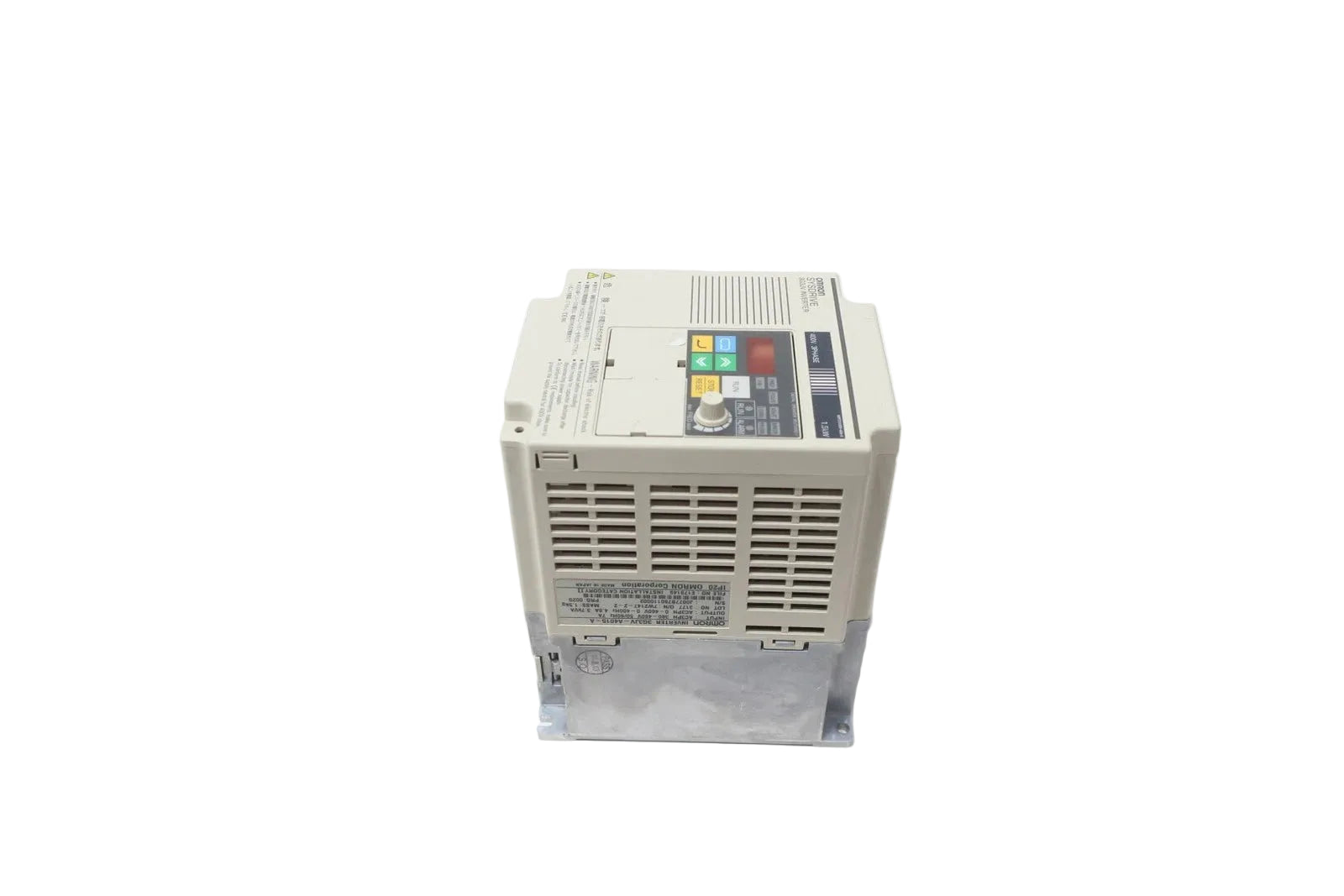

3G3JV-A4015 | Omron 200–240VAC 7.5A PWM AC Drive Inverter
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3G3JV-A4015
Description
The Omron 3G3JV-A4015 is a compact AC inverter designed to control three-phase motors in industrial automation systems. It operates on a 200–240 VAC input and delivers a 3-phase 200–240 VAC output with a rated current of 7.5 A. Utilizing PWM control, this inverter provides adjustable output frequency from 0.1 to 400 Hz for precise motor speed regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | 3G3JV-A4015 |
| Subcategory | AC Drives |
| Product Line | 3G3JV Series |
| Input Voltage | 200–240 VAC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-Phase 200–240 VAC |
| Output Frequency | 0.1 to 400 Hz |
| Frequency Setting Resolution | 0.01 Hz |
| Rated Output Current | 7.5 A |
| Overload Capacity | 150% for 1 minute |
| Control Method | Pulse Width Modulation (PWM) |
| Cooling Method | Forced Air Cooling |
| Analog Input | 0–10 V, 4–20 mA, 0–20 mA |
| Digital Inputs | Multi-Function Inputs |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Overheating, Ground Fault |
| Ambient Temperature | -10°C to 50°C |
| Weight | 1.38 lbs (0.62 kg) |
Information About 3G3JV-A4015
The 3G3JV-A4015 is part of the Omron inverter product family engineered for variable frequency motor control applications. It features pulse width modulation (PWM) control technology to ensure stable and efficient motor operation across a wide frequency range. The unit supports multi-function digital inputs and analog inputs (0–10 V, 4–20 mA, or 0–20 mA) for flexible speed and control configuration. Designed with forced air cooling and integrated protection functions such as overcurrent, overvoltage, undervoltage, overheating, and ground fault detection, it is suitable for reliable performance in industrial environments.
Key Features:
- 200–240 VAC Input: Compatible with standard industrial single-phase AC supply.
- 3-Phase 200–240 VAC Output: Designed for controlling three-phase AC motors.
- 7.5 A Rated Output Current: Supports medium-capacity motor applications.
- Wide Frequency Range: Adjustable from 0.1 to 400 Hz with 0.01 Hz resolution.
- 150% Overload Capacity: Provides overload tolerance for up to 1 minute.
- PWM Control Method: Ensures efficient and stable motor speed control.
- Flexible Analog Inputs: Accepts 0–10 V, 4–20 mA, and 0–20 mA signals.
- Comprehensive Protection Functions: Includes overcurrent, overvoltage, undervoltage, overheating, and ground fault protection.
The 3G3JV-A4015 delivers the reliability and precision required for controlled motor speed and torque management in industrial drive systems.
