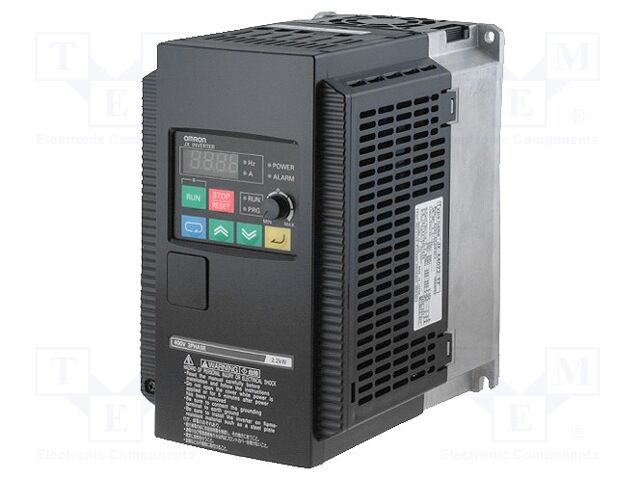

3G3JX-A4022-EF | Omron JX Series Frequency Inverter 2.2 kW 3-Phase 380–480 VAC
- Regular price
- $1,022.00
- Sale price
- $1,022.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3JX-A4022-EF
Description
The Omron 3G3JX-A4022-EF Inverter is a compact variable frequency drive (VFD) designed for precise motor control in industrial and automation applications. Rated for 2.2 kW motor output and operating on a three-phase 380–480 VAC supply, it delivers smooth and efficient speed regulation across a frequency range of 0.5–400 Hz. Featuring multiple analog and digital inputs, relay output selection, and integrated protection functions, this inverter provides reliable performance for wall-mounted control installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motor Drives and Controls |
| Part Number | 3G3JX-A4022-EF |
| Subcategory | Frequency Inverters |
| Series | JX Series |
| Type | Variable Frequency Drive (VFD) |
| Supply Voltage | 3-Phase 380–480 VAC |
| Maximum Motor Power | 2.2 kW |
| Rated Output Current | 5.5 A |
| Output Power | 2.2 kW (3 HP class) |
| Output Frequency Range | 0.5–400 Hz |
| Input Signal Types | 0–10 V, 4–20 mA, 0–20 mA |
| Control Method | V/f Control |
| Number of Digital Inputs | 6 |
| Number of Analog Inputs | 1 |
| Number of Analog Outputs | 1 |
| Output 1 Type | Relay (3A/250 VAC) or 24 VDC – selectable by switch |
| Starting/Stopping Time | 0.01–3000 s (adjustable) |
| Programming Interface | Keypad / Potentiometer |
| Protection Features | OPP, OVP, OTP, SCP, BOP |
| Mounting Type | Wall Mount / Chassis |
| Electrical Connection | Screw Terminals |
| Enclosure Rating | IP20 |
| Cooling Method | Forced Air (internal fan) |
| Operating Temperature | -10°C to +50°C |
| Dimensions (W × H × D) | Approx. 120 × 260 × 150 mm (typical for series) |
| Weight | Approx. 2.5 kg |
| Application | Pumps, Fans, Conveyors, General Automation |
| Country of Origin | Japan |
Information About 3G3JX-A4022-EF
The 3G3JX-A4022-EF is part of the Omron JX Series of general-purpose inverters, engineered for simple operation, flexible control, and robust motor protection. Designed for easy setup using a keypad or potentiometer, the drive supports both voltage and current analog input signals (0–10 V, 4–20 mA, or 0–20 mA) for speed control. The inverter includes six programmable digital inputs, one analog input, and one analog output, allowing versatile system configuration. Built-in protection against overload (OPP), overvoltage (OVP), overheating (OTP), short circuit (SCP), and voltage drops (BOP) ensures long-term reliability in harsh environments. The IP20-rated housing and wall-mount design make it ideal for panel installations in machine control and automation systems.
Key Features:
- Wide Voltage Range: Operates on 3-phase 380–480 VAC for global industrial compatibility.
- 2.2 kW Output Power: Suitable for small to medium motor control applications.
- Flexible Speed Control: Accepts analog speed reference via 0–10 V, 4–20 mA, or 0–20 mA inputs.
- Broad Frequency Range: Provides 0.5–400 Hz output for precise speed regulation.
- Multiple Inputs and Outputs: Includes 6 digital inputs, 1 analog input, and 1 analog/relay output.
- Comprehensive Protection: Features overload, overvoltage, overheat, short circuit, and voltage drop safeguards.
- User-Friendly Interface: Simple configuration via built-in keypad or front potentiometer.
- Compact Wall-Mount Design: IP20 enclosure suitable for panel or machine cabinet installation.
The 3G3JX-A4022-EF delivers the reliability and precision required for variable speed control in pumps, fans, conveyors, and general automation systems.
