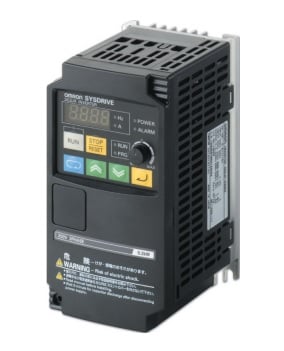

3G3JX-AB007-EF | Omron JX Series 0.75 kW Single-Phase AC Inverter Drive 200–240 V
- Regular price
- $857.00
- Sale price
- $857.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3JX-AB007-EF
Description
The Omron 3G3JX-AB007-EF AC Inverter Drive is a compact and efficient frequency converter designed to control 0.75 kW single-phase induction motors with precision and reliability. Featuring analog and digital input options, it provides smooth acceleration, speed control, and braking performance. Built with integrated motor protection functions, the drive ensures stable operation in a wide range of general-purpose automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | 3G3JX-AB007-EF |
| Subcategory | Inverters / Variable Frequency Drives |
| Series | JX Series |
| Type | AC Inverter Drive / Frequency Converter |
| Power Rating | 0.75 kW |
| Rated Input Voltage | 200–240 V AC (Single-Phase) |
| Rated Output Voltage | 3 × 200–240 V AC |
| Rated Output Current | 4 A |
| Output Frequency Range | 0.5–400 Hz |
| Control Method | V/f Control |
| Starting Torque | 150% or higher |
| Acceleration / Deceleration Time | 0.01–3000 s / 0.01–3000 s |
| Analog Inputs | 1 (0–10 V, 4–20 mA, 0–20 mA) |
| Analog Outputs | 1 (0–10 V) |
| Digital Inputs | 6 programmable |
| Digital Outputs | 5 programmable |
| Relay Output | 1 (3 A / 250 V AC or 24 V DC selectable) |
| Programming Interface | Keypad and potentiometer |
| Protection Features | OPP (Overload), OVP (Overvoltage), OTP (Overheat), SCP (Short Circuit), BOP (Voltage Drop) |
| Mounting Type | Wall Mount |
| Electrical Connection | Screw Terminals |
| Display Type | LED Indicator |
| Enclosure Rating | IP20 |
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -20°C to +60°C |
| Cooling Method | Forced air (integrated fan) |
| Additional Functions | PID Control, Analog/Digital Programming, Auto-Tuning |
| Compliance | CE, UL, RoHS Compliant |
| Product Status | Discontinued by Manufacturer |
| Dimensions | 68 × 128 × 128 mm (W × H × D) |
| Weight | 1.70 kg (3.75 lb) |
Information About 3G3JX-AB007-EF
The 3G3JX-AB007-EF belongs to Omron’s JX Series of frequency inverters, designed for versatile and easy motor speed control in industrial and commercial systems. Operating on a 200–240 V single-phase AC supply, it delivers 4 A rated current and supports output frequencies from 0.5 to 400 Hz. The drive includes analog and digital inputs for variable speed control via voltage or current signals (0–10 V, 4–20 mA, or 0–20 mA) and features a built-in keypad and potentiometer for manual configuration. Integrated with overload, overvoltage, short-circuit, and thermal protection, it provides reliable performance in conveyor systems, fans, pumps, and general automation environments.
Key Features:
- 0.75 kW Motor Capacity: Suitable for single-phase 200–240 V AC motors.
- Wide Frequency Range: Adjustable output from 0.5 to 400 Hz for flexible control.
- Multi-Input Compatibility: Accepts analog voltage/current and digital signals for speed reference.
- Built-In Control Interface: Includes keypad and potentiometer for easy parameter setup.
- Advanced Protection Functions: Protects against overload, overvoltage, overheating, short circuit, and power loss.
- Programmable I/O: 6 inputs, 5 programmable digital outputs, and analog I/O customization.
- Compact Wall-Mount Design: Space-saving enclosure with screw terminal connections.
- Omron JX Series Reliability: Ensures stable, long-term operation in demanding applications.
The 3G3JX-AB007-EF delivers the reliability and precision required for variable speed motor control in industrial and automation systems.
