3G3MV-C2007 | Omron Variable Frequency Drive
- Regular price
- $495.00
- Sale price
- $495.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3MV-C2007
Description

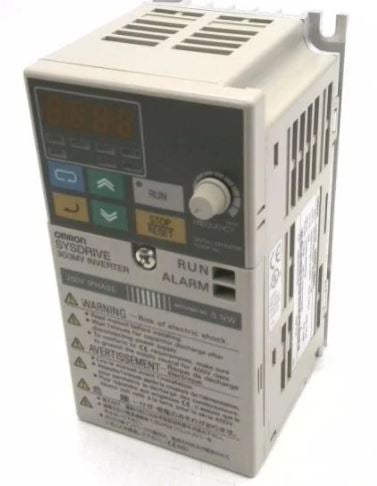

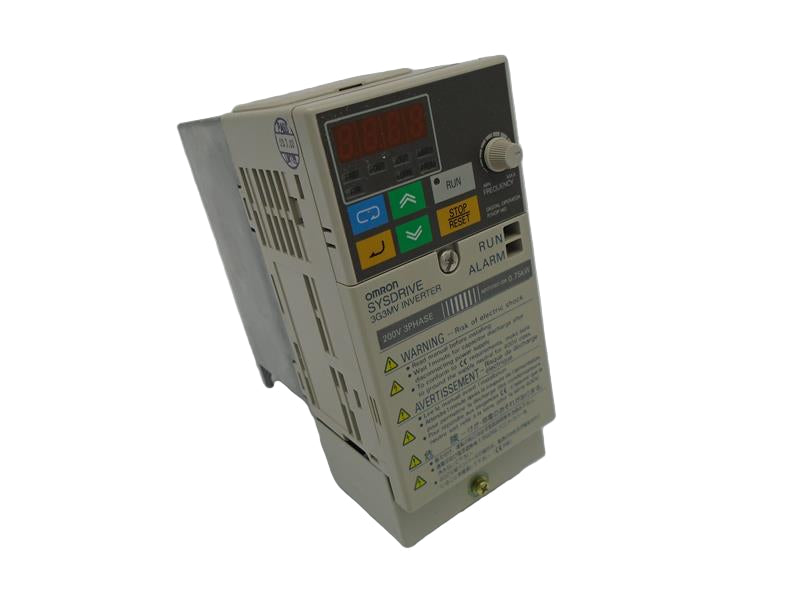

The Omron 3G3MV‑C2007 is a compact, three-phase VFD from the SYSDRIVE 3G3MV series, delivering 1 HP (0.75 kW) output at 230 V AC with a 5 A rating.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Drives |
| Part Number | 3G3MV-C2007 |
| Subcategory | Drives |
| Product Type | Variable Frequency Drive |
| Series | 3G3MV |
| Output Current | 5 A |
| Rated Voltage | 230 V AC |
| Phase | 3-Phase |
| Power Rating (HP) | 1 HP |
| Power Rating (kW) | 1.1 / 0.75 kW (capacity listed as 1.1/1.5 in product class data) |
| Protection Rating | IP20 |
| Enclosure Type | NEMA 1 |
| Cooling Method | Forced Air |
| Supply Voltage Range | 200–230 V AC ±10%, 3-Phase |
| Control Method | Vector Control |
| Connection Type | Screw Terminal |
| Enclosure Material | Plastic |
| Weight | 2.22 lbs |
Information About 3G3MV-C2007
The Omron 3G3MV-C2007 is a compact three-phase variable frequency drive (VFD) from the SYSDRIVE 3G3MV series, designed for precise motor speed control in industrial applications. Rated at 1 HP (0.75 kW) with a 5 A output current and operating from a 200–230 V AC ±10% three-phase supply, it uses vector control technology to deliver smooth operation and high torque performance—up to 150% torque at 1 Hz—without the need for encoder feedback.
Built with an IP20, NEMA 1 plastic enclosure and cooled by forced air, the 3G3MV-C2007 is suitable for panel installations in controlled industrial environments. The drive offers flexible configuration with screw-type connections and supports multiple control methods, including open-loop vector and V/f control, making it adaptable to a variety of motor types and load conditions.
Although now discontinued by the manufacturer, it remains widely used in legacy systems and is available through surplus and refurbishment channels. Manufactured in Japan, it is recognized for its reliability, compact design, and compliance with global standards such as CE and UL/cUL.
Key Features:
- Model & Series: 3G3MV-C2007, SYSDRIVE 3G3MV Series.
- Power Rating: 1 HP (0.75 kW) nominal, capacity listed as 1.1 kW / 1.5 HP in product classification.
- Voltage Range: 200–230 V AC ±10%, 3-phase.
- Output Current: 5 A.
- Control Method: Vector control for high-torque, low-speed performance; supports open-loop vector and V/f control.
- Enclosure & Protection: NEMA 1, IP20 plastic housing.
- Cooling Method: Forced air cooling.
- Connections: Screw terminal type.
- Country of Origin: Japan.
- Status: Discontinued; available through surplus and specialty suppliers.
The Omron 3G3MV-C2007 remains a dependable choice for maintaining existing motor control systems, providing high performance, compact design, and flexibility in legacy industrial environments.
