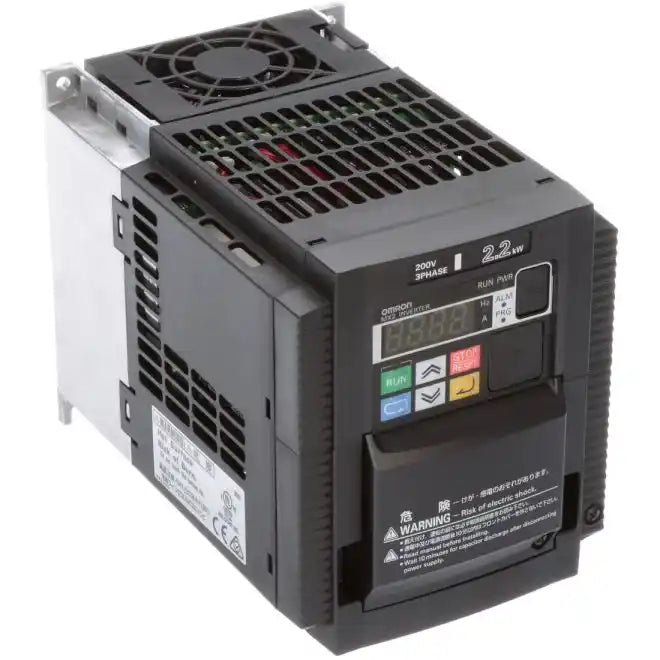

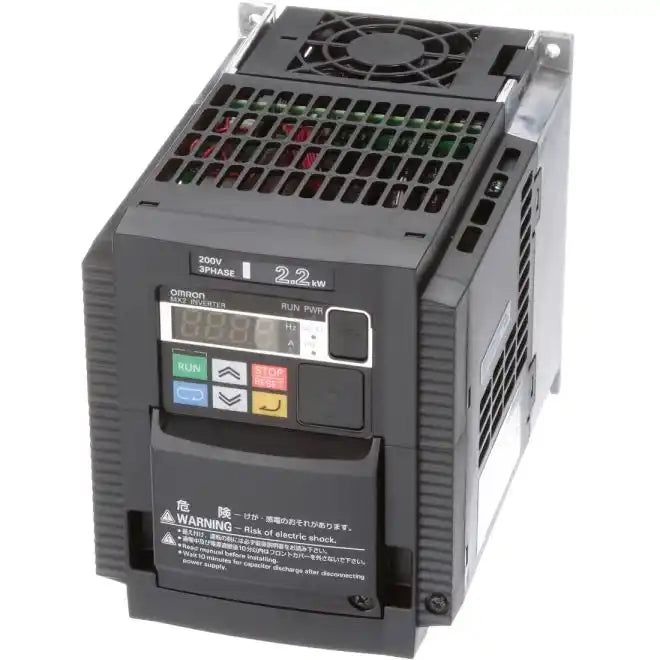

3G3MX2-A2022-V1 | Omron MX2 Series 2.2 kW 3-Phase Variable Frequency Drive 240V 11A
- Regular price
- $897.00
- Sale price
- $897.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3MX2-A2022-V1
Description
The Omron 3G3MX2-A2022-V1 is a multi-function compact variable frequency drive (VFD) designed to provide precise speed and torque control for three-phase 200 VAC class motors. Rated at 2.2 kW (3 HP) with an output current of 11 A, this drive combines V/f and sensorless vector control to deliver smooth motor performance and rapid response. Engineered for reliable and efficient motion control, it features integrated Modbus communication and safety functionality compliant with Category 3, STO standards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | 3G3MX2-A2022-V1 |
| Subcategory | Variable Frequency Drives (VFDs) |
| Series | MX2 Series Type V1 |
| Type | Multi-Function Compact Inverter |
| Power Rating | 2.2 kW (3 HP constant torque / 4 HP variable torque) |
| Output Current (Constant Torque) | 11 A |
| Output Current (Variable Torque) | 12 A |
| Input Voltage | 200–240 VAC ±10% |
| Power Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-Phase 200–240 VAC |
| Output Frequency Range | 0.1–400 Hz (up to 1000 Hz for high-speed mode) |
| Control Methods | V/f Control, Sensorless Vector Control |
| Speed Range | 0.01–1000 Hz |
| Starting Torque | 150% at 0.5 Hz |
| Communication Interface | Modbus (RS-485, Built-in) |
| Safety Function | Category 3, STO (Safe Torque Off) |
| Display Type | Digital Operator with LED display |
| Programming / Adjustment | Keypad or serial communication |
| Protection Features | Overcurrent, Overvoltage, Overheat, Undervoltage, Short-Circuit |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount / Chassis Mount |
| Enclosure Rating | IP20 |
| Ambient Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +65°C |
| Humidity Range | ≤ 85% RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, 0.75 mm amplitude |
| Compliance Standards | EN 61800-3, EN 61800-5-1, EN ISO 13849-1, UL508C, cUL |
| Dimensions (H × W × D) | 128 × 108 × 170.5 mm (5.04 × 4.25 × 6.71 in) |
| Weight | Approx. 1.8 kg (3.97 lb) |
Information About 3G3MX2-A2022-V1
The 3G3MX2-A2022-V1 belongs to Omron’s advanced MX2 Series (Type V1) of compact inverters, developed for general-purpose motor control applications. Designed for three-phase 200–240 VAC operation, it provides a wide output frequency range of 0.1–400 Hz and a starting torque suitable for demanding loads. Built with sensorless vector and V/f control modes, it offers stable performance across both constant and variable torque applications. The MX2 V1 includes built-in Modbus communication, supports STO (Safe Torque Off) functionality, and complies with global standards including EN 61800-3, EN ISO 13849-1, and UL508C.
Key Features:
- Compact 2.2 kW Drive: Provides precise control for 3-phase motors up to 3 HP (constant torque) or 4 HP (variable torque).
- Dual Control Modes: Supports both V/f and sensorless vector control for versatile motor applications.
- Wide Speed Range: Operates from 0.01 Hz to 1000 Hz with smooth acceleration and deceleration.
- Integrated Communication: Built-in Modbus RTU for networked control and monitoring.
- Safety Integrated Design: Category 3, STO compliant for machine safety applications.
- User-Friendly Operation: Includes a digital operator for easy parameter setup and display.
- High Efficiency: Ensures stable torque and optimized energy use across the full speed range.
- Omron Reliability: Built to industrial standards with proven durability and robust protection.
The 3G3MX2-A2022-V1 delivers the precision, reliability, and safety required for motion control, conveyor, and process automation systems.
