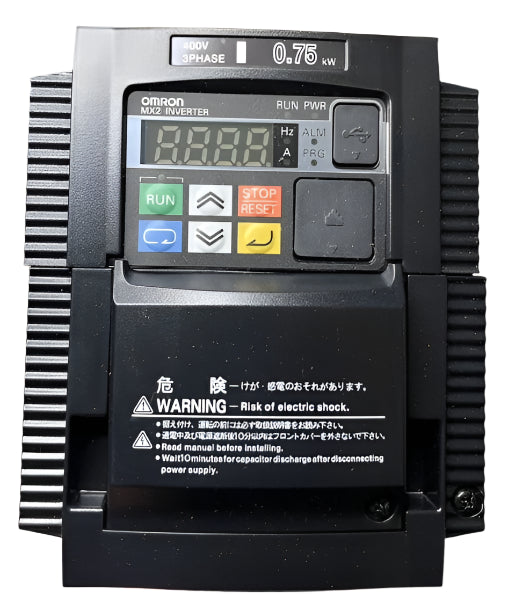

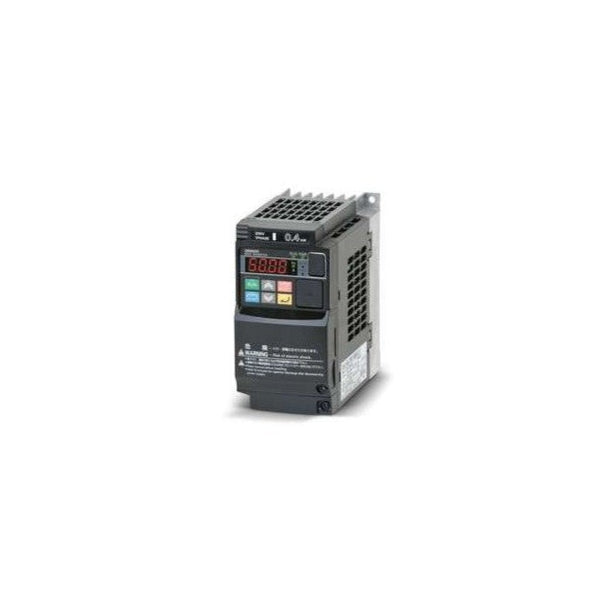

3G3MX2-A4007-E | Omron Compact Inverter Drive

Description

The Omron 3G3MX2-A4007-E is a compact inverter drive from the MX2 series, designed for precise motor control in industrial applications. It supports both induction and permanent magnet motors, offering advanced features like sensorless vector control and built-in logic programming.

Technical Specifications

Information About 3G3MX2-A4007-E

The Omron 3G3MX2-A4007-E is a compact inverter drive from the MX2 series, designed for precise motor control in industrial applications. It supports both induction and permanent magnet motors, offering advanced features like sensorless vector control and built-in logic programming. With a power rating of 0.75 kW (constant torque) and 1.5 kW (variable torque), it operates on a 3-phase 400 VAC input and provides an output frequency range up to 1000 Hz. The drive includes multiple protection functions and supports various communication options, making it suitable for applications such as conveyors, pumps, and fans.

Key Features:

• Series: MX2
• Rated Output Power: 0.75 kW (constant torque), 1.5 kW (variable torque)
• Input Voltage & Current: 3.6–4.3 A, 1–3 Phase, 380–480 V, 50/60 Hz
• Output Voltage & Current: 3.4–4.1 A, 3 Phase, 380–480 V, 0.1–1000 Hz
• Control Method: Open loop V/f, Open loop vector
• Motor Compatibility: Induction and permanent magnet motors
• Protection Rating: IP20
• Communication Ports: MODBUS Slave, Serial RS-485, USB
• Optional Communication Interfaces: CompoNet, DeviceNet, EtherCAT, EtherNet/IP, MECHATROLINK II, PROFIBUS DP
• Dimensions (W × H × D): 108 × 171 × 128 mm

This model has been discontinued and is replaced by the 3G3MX2-A4007-EV2, which offers enhanced features and improved performance.
