3G3MX2-A4015-V1 | Omron Inverter Drive
- Regular price
- $2,887.00
- Sale price
- $2,887.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3MX2-A4015-V1
Description

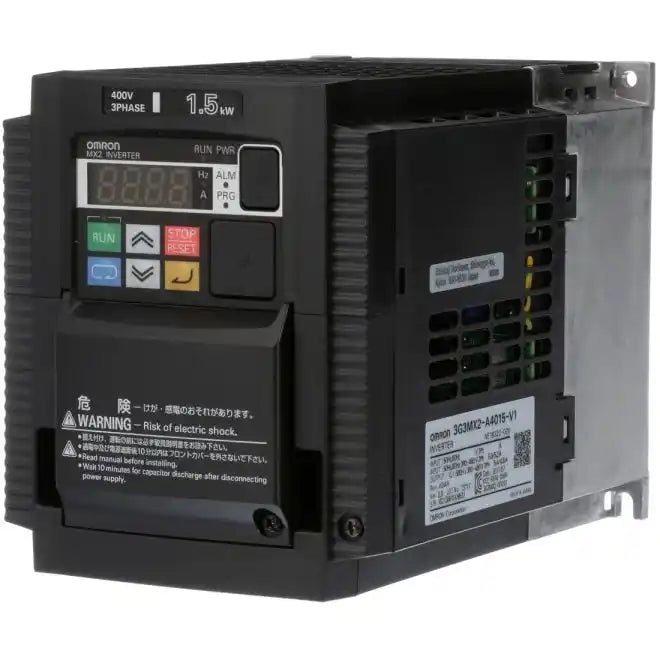

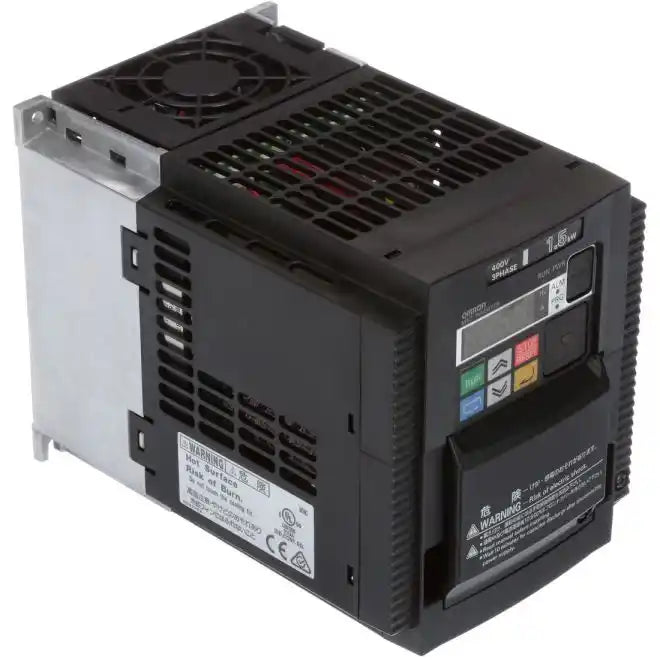

The Omron 3G3MX2-A4015-V1 is a compact, high-performance inverter drive from the MX2 Series, designed for precise motor control in industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Drives |
| Part Number | 3G3MX2-A4015-V1 |
| Subcategory | Drives |
| Ambient Temperature | -10 to 50 °C |
| Current Rating | 5.4 A |
| Driver Type | Vector Control |
| Function | Adjustable Speed Control |
| Horsepower Rating | 2 hp |
| IP Rating | IP20 |
| Mounting Type | Panel Mount |
| Output Frequency | 0.1 to 400 Hz |
| Dimensions | 6.713 x 5.039 x 4.252" (170.5 x 128 x 108mm) |
| Phase | 3 Phase |
| Power Rating | 1.5 kW |
| Weight | 3.45 lbs |
Information About 3G3MX2-A4015-V1
The Omron 3G3MX2-A4015-V1 is a compact, high-performance inverter drive from the MX2 series, developed for advanced motor control in industrial automation systems. With a power rating of 1.5 kW (2 HP), it operates on a three-phase 380–480 VAC input and delivers a three-phase 0–400 VAC output. It supports both induction and permanent magnet motors and offers high starting torque and smooth speed control, making it ideal for demanding applications.
Key Features:
- Power Rating: 1.5 kW (2 HP)
- Input Voltage: Three-phase 380–480 VAC
- Input Frequency: 50/60 Hz
- Output Voltage: Three-phase 0–400 VAC
- Output Current: 4.8 A (CT), 5.4 A (VT)
- Control Mode: V/f control, Open-loop vector control
- Output Frequency Range: 0.1–400 Hz
- Starting Torque: 200% at 0.5 Hz
- Safety Function: Safe Torque Off (STO), ISO 13849-1 PLd compliant
- Communication: Built-in RS-485 Modbus (optional: EtherCAT, DeviceNet, PROFIBUS, etc.)
- Cooling Method: Forced air cooling
- Ambient Temperature Range: 0°C to 50°C
- Enclosure Rating: IP20
- Dimensions (W × H × D): 108 × 128 × 170.5 mm
The 3G3MX2-A4015-V1 inverter is engineered for dynamic performance and system safety in a wide range of industrial applications, including conveyors, mixers, and process control systems. Its compact size, integrated safety features, and flexible communication options make it a reliable and adaptable choice for both OEMs and automation engineers.
