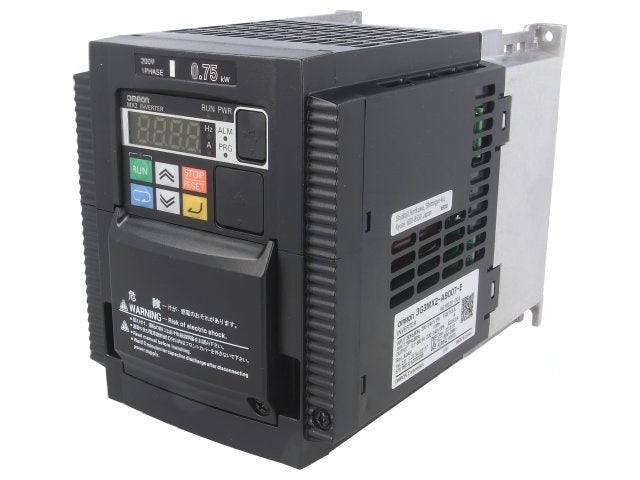

3G3MX2-AB007-E | Omron Multi-Function Compact Inverter 0.75/1.1 kW
- Regular price
- $644.00
- Sale price
- $644.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3G3MX2-AB007-E
Description
The 3G3MX2-AB007-E is a compact, multi-function inverter drive supporting single-phase 200 VAC input and delivering precise motor control at 0.75/1.1 kW. Designed for wall-mount installations, it features sensorless vector control and versatile interface options for flexible industrial use.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Drives
|
| Part Number | 3G3MX2-AB007-E |
| Subcategory | Drive |
| Series | MX2 Series |
| Power Rating | 0.75 kW (HD) / 1.1 kW (ND) |
| Input Voltage | 200–240 VAC (1-phase) |
| Output Current | 5.0 A (HD) / 6.0 A (ND) |
| Output Frequency Range | 0–400 Hz |
| Control Method | Sensorless vector |
| Communication Interfaces | MODBUS, RS485, USB |
| Analog Input | 0–10 V, 4–20 mA |
| Analog Output | 0–10 V |
| Protection Rating | IP20 |
| Mounting Style | Wall or panel mounting |
| Termination Type | Screw terminals |
| Operating Temperature | –10 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
| Dimensions (W × H × D) | 108 × 128 × 170.5 mm |
| Weight | 3.22 lbs |
Information About 3G3MX2-AB007-E
The 3G3MX2-AB007-E is part of Omron’s MX2 Series, developed for seamless control of motor speed and torque in compact automation systems. This model supports single-phase 200–240 VAC input and delivers a rated motor output of 0.75 kW (HD) / 1.1 kW (ND) with respective output currents of 5.0 A and 6.0 A. Its sensorless vector control algorithm allows for efficient, accurate performance even without feedback sensors, ideal for pumps, fans, conveyors, and material handling machinery. The drive operates across a wide frequency range from 0 to 400 Hz, and its built-in support for MODBUS, RS485, and USB interfaces ensures easy integration with most PLCs and control systems. With a compact IP20-rated panel-mountable housing, screw terminals, and analog/digital I/O flexibility, this inverter fits well into both new and retrofit applications. Its temperature rating from –10 °C to +50 °C and compact form factor (108 × 128 × 170.5 mm) allow for easy cabinet integration and reliable operation.
Key Features:
- Flexible Power Output: Delivers 0.75 kW in heavy-duty mode and up to 1.1 kW in normal duty, making it suitable for a wide range of light- to medium-load applications.
- Wide Frequency and Voltage Range: Accepts single-phase 200–240 VAC input and provides output frequencies from 0 to 400 Hz for optimal motor control.
- Sensorless Vector Control: Achieves precise speed and torque regulation without external sensors, improving efficiency in motors of varying load conditions.
- Multiple Communication Interfaces: Built-in MODBUS, RS485, and USB interfaces enable seamless integration with industrial control systems.
- Versatile I/O Capabilities: Supports analog inputs (0–10 V, 4–20 mA) and analog output (0–10 V) for signal feedback and custom control configurations.
- Robust Thermal Performance: Operates reliably from –10 °C to +50 °C, ensuring dependable operation even in less-than-ideal industrial environments.
- Compact and Mountable Design: IP20 protection and panel- or wall-mountable chassis (108 × 128 × 170.5 mm) allow easy integration into control cabinets.
- Pulse Frequency Flexibility: Offers adjustable clock/pulse frequency from 2 to 15 kHz for customizable operation and noise control.
The 3G3MX2-AB007-E delivers precise control, compact design, and versatile connectivity, making it a reliable inverter solution for single-phase industrial applications.
Description
The 3G3MX2-AB007-E is a compact, multi-function inverter drive supporting single-phase 200 VAC input and delivering precise motor control at 0.75/1.1 kW. Designed for wall-mount installations, it features sensorless vector control and versatile interface options for flexible industrial use.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Drives
|
| Part Number | 3G3MX2-AB007-E |
| Subcategory | Drive |
| Series | MX2 Series |
| Power Rating | 0.75 kW (HD) / 1.1 kW (ND) |
| Input Voltage | 200–240 VAC (1-phase) |
| Output Current | 5.0 A (HD) / 6.0 A (ND) |
| Output Frequency Range | 0–400 Hz |
| Control Method | Sensorless vector |
| Communication Interfaces | MODBUS, RS485, USB |
| Analog Input | 0–10 V, 4–20 mA |
| Analog Output | 0–10 V |
| Protection Rating | IP20 |
| Mounting Style | Wall or panel mounting |
| Termination Type | Screw terminals |
| Operating Temperature | –10 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
| Dimensions (W × H × D) | 108 × 128 × 170.5 mm |
| Weight | 3.22 lbs |
Information About 3G3MX2-AB007-E
The 3G3MX2-AB007-E is part of Omron’s MX2 Series, developed for seamless control of motor speed and torque in compact automation systems. This model supports single-phase 200–240 VAC input and delivers a rated motor output of 0.75 kW (HD) / 1.1 kW (ND) with respective output currents of 5.0 A and 6.0 A. Its sensorless vector control algorithm allows for efficient, accurate performance even without feedback sensors, ideal for pumps, fans, conveyors, and material handling machinery. The drive operates across a wide frequency range from 0 to 400 Hz, and its built-in support for MODBUS, RS485, and USB interfaces ensures easy integration with most PLCs and control systems. With a compact IP20-rated panel-mountable housing, screw terminals, and analog/digital I/O flexibility, this inverter fits well into both new and retrofit applications. Its temperature rating from –10 °C to +50 °C and compact form factor (108 × 128 × 170.5 mm) allow for easy cabinet integration and reliable operation.
Key Features:
- Flexible Power Output: Delivers 0.75 kW in heavy-duty mode and up to 1.1 kW in normal duty, making it suitable for a wide range of light- to medium-load applications.
- Wide Frequency and Voltage Range: Accepts single-phase 200–240 VAC input and provides output frequencies from 0 to 400 Hz for optimal motor control.
- Sensorless Vector Control: Achieves precise speed and torque regulation without external sensors, improving efficiency in motors of varying load conditions.
- Multiple Communication Interfaces: Built-in MODBUS, RS485, and USB interfaces enable seamless integration with industrial control systems.
- Versatile I/O Capabilities: Supports analog inputs (0–10 V, 4–20 mA) and analog output (0–10 V) for signal feedback and custom control configurations.
- Robust Thermal Performance: Operates reliably from –10 °C to +50 °C, ensuring dependable operation even in less-than-ideal industrial environments.
- Compact and Mountable Design: IP20 protection and panel- or wall-mountable chassis (108 × 128 × 170.5 mm) allow easy integration into control cabinets.
- Pulse Frequency Flexibility: Offers adjustable clock/pulse frequency from 2 to 15 kHz for customizable operation and noise control.
The 3G3MX2-AB007-E delivers precise control, compact design, and versatile connectivity, making it a reliable inverter solution for single-phase industrial applications.
