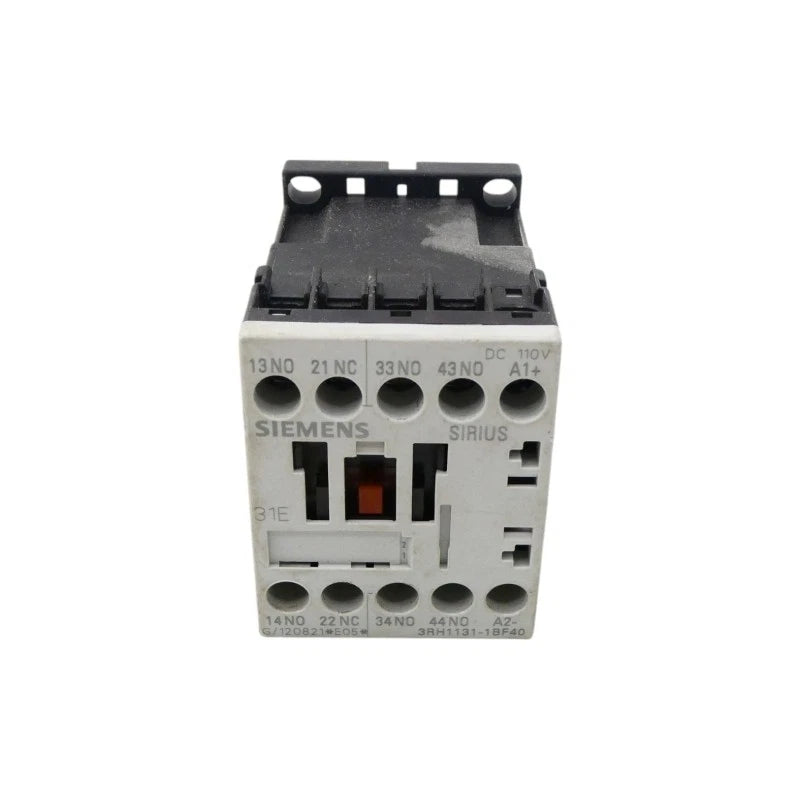

3RH1131-1BF40 | Siemens SIRIUS S00 Auxiliary Contactor Relay, 3NO+1NC, 110 V DC
- Regular price
- $149.00
- Sale price
- $149.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RH1131-1BF40
Description
The Siemens 3RH1131-1BF40 is a compact SIRIUS S00 auxiliary contactor relay designed for control-circuit switching tasks in industrial automation systems. Operating on a 110 V DC coil, it provides three normally-open and one normally-closed contact for reliable signaling and interlocking applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Panel Accessories |
| Part Number | 3RH1131-1BF40 |
| Subcategory | Relay/Socket |
| Product Type | Auxiliary Contactor Relay |
| Series | SIRIUS 3RH1 |
| Size | S00 |
| Coil Voltage | 110 V DC |
| Control Voltage Type | DC |
| Operating Range Factor | 0.8…1.1 of rated coil voltage |
| Closing Power (DC Coil) | 3.2 W |
| Holding Power (DC Coil) | 3.2 W |
| Contact Configuration | 3NO + 1NC |
| Switching Element Identifier | 31E |
| Mechanical Service Life | Up to 30,000,000 cycles (typical) |
| Electrical Ratings AC-12 | 10 A max |
| Electrical Ratings AC-15 | 230 V: 6 A; 400 V: 3 A; 500 V: 2 A; 690 V: 1 A |
| Electrical Ratings DC-12 | 24 V: 10 A; 110 V: 3 A; 220 V: 1 A |
| Electrical Ratings DC-13 | 24 V: 10 A; 110 V: 1 A; 220 V: 0.27 A |
| Short Circuit Protection | gL/gG 10 A fuse |
| Shock Resistance | 10 g (5 ms), 5 g (10 ms) |
| Protection Class | IP20 (front) |
| Ambient Operating Temperature | –25 °C to +60 °C |
| Storage Temperature | –55 °C to +80 °C |
| Installation Altitude | Up to 2000 m |
| Mounting | DIN rail or screw mounting |
| Terminals | Screw-type |
| Conductor Size | Up to 2 × 2.5 mm² (fine-stranded) |
| Dimensions (H×W×D) | 57.5 mm × 45 mm × 72 mm |
| Status | Discontinued by manufacturer |
| Weight | 0.20 lbs |
Information About 3RH1131-1BF40
The 3RH1131-1BF40 is part of Siemens’ SIRIUS 3RH1 auxiliary contactor series, engineered for long mechanical endurance and precise switching performance. It features screw-type terminals, IP20 front protection, and compatibility with S00 contactor accessories. Its 110 V DC coil offers stable operation within the allowable voltage range and meets IEC 81346-2 classification standards. As a phased-out model, it is commonly used as a service replacement for legacy control panels, with the preferred modern successor being the Siemens 3RH2131-1BF40.
Key Features:
- Auxiliary Contactor Relay: Designed for signaling, interlocking, and auxiliary switching functions in automation systems.
- 3NO + 1NC Contacts: Provides versatile contact combinations for control logic applications.
- 110 V DC Coil: Stable DC operation with defined opening and holding power for precise response.
- Compact S00 Size: Fits into small control cabinets and supports Siemens S00 mounting accessories.
- High Mechanical Durability: Typical service life up to 30 million switching cycles depending on configuration.
- IP20 Front Protection: Ensures safe operator access and basic protection inside control panels.
- Shock Resistant: Rated 10 g/5 ms and 5 g/10 ms for industrial vibration and shock conditions.
- Wide Ambient Temperature Range: Operates from –25 °C to +60 °C with extended storage limits.
- DIN-Rail & Screw Mounting: Offers flexible installation using snap-on capability and screw fasteners.
- Screw-Type Terminals: Accepts a wide range of solid and stranded conductors for secure wiring.
The 3RH1131-1BF40 delivers the reliability and precision required for auxiliary switching in industrial control and automation environments.
