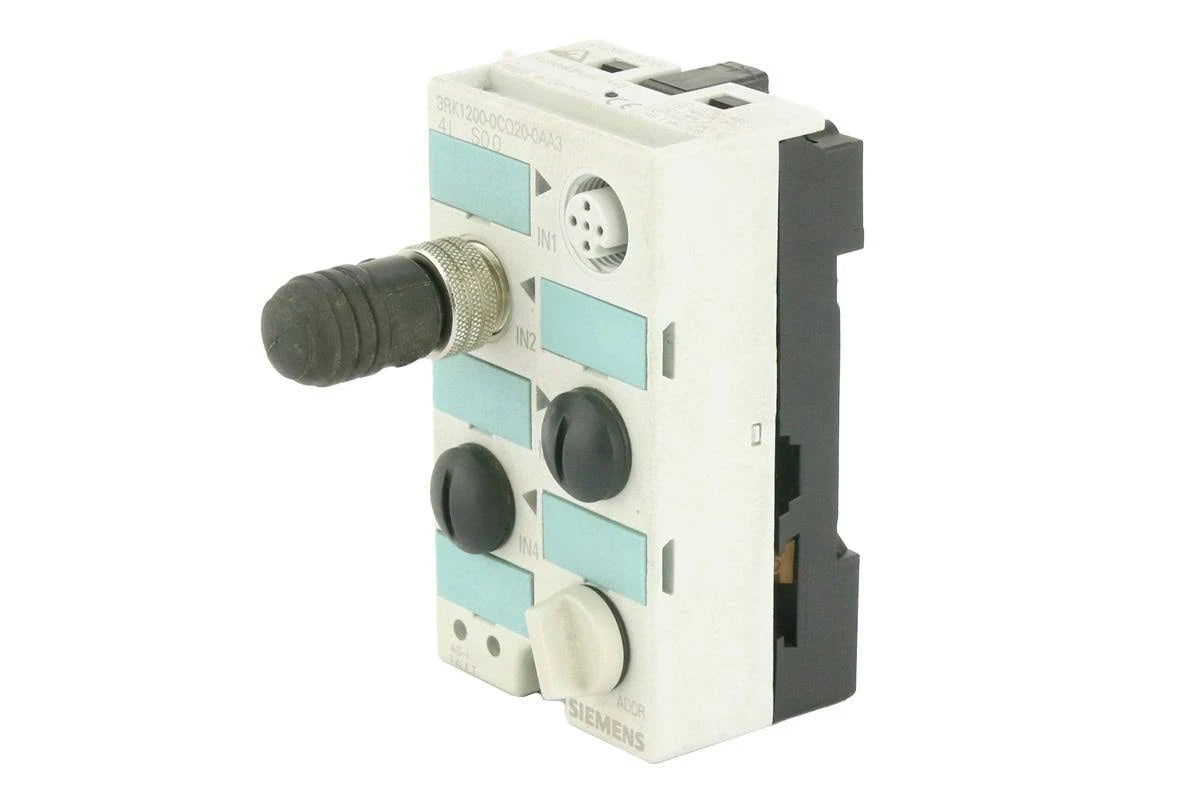

3RK1200-0CQ20-0AA3 | Siemens AS-Interface Compact Module
- Regular price
- $229.00
- Sale price
- $229.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RK1200-0CQ20-0AA3
Description
The Siemens 3RK1200-0CQ20-0AA3 is an AS-Interface compact digital input module from the K45 series, designed for decentralized automation systems. It features four PNP-type digital inputs with M12 sockets and offers IP67-rated protection for use in harsh industrial environments. This module is DIN rail mountable using a separately ordered mounting plate.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Data Control System
|
| Part Number | 3RK1200-0CQ20-0AA3 |
| Subcategory | DCS Module/Board/Rack |
| Series | AS-Interface K45 |
| Type | Compact Digital Input Module |
| Input Channels | 4 Digital (PNP) |
| Connector Type | 4 × M12 Socket |
| Input Voltage Range | 20–30 VDC |
| Max Input Current | 200 mA |
| Signal Logic | PNP |
| Protection Rating | IP67 |
| Status Indicators | LED for each input channel |
| Mounting | Mounting plate required (3RK1901-2EA00 / 2DA00) |
| Operating Temperature | –40 °C to +85 °C |
| Weight | 0,084 Kg |
| Packaging Dimension | 50,00 x 108,00 x 45,00 |
| Package size unit of measure | MM |
Information About 3RK1200-0CQ20-0AA3
The 3RK1200-0CQ20-0AA3 is part of Siemens’ AS-Interface (AS-i) K45 compact I/O module line, offering a robust solution for capturing digital input signals in distributed field applications. With four digital inputs and four integrated M12 sockets, it enables direct sensor connection without additional cabling complexity. This module supports a supply voltage range of 20–30 VDC and has a maximum input current capacity of 200 mA. It uses PNP signal logic and is protected by an IP67 enclosure, ensuring reliable operation in wet or dusty environments. The module is engineered for use in automation systems utilizing the AS-Interface bus and requires a separate mounting plate (either 3RK1901-2EA00 or 3RK1901-2DA00) for installation.
Key Features:
- 4 Digital PNP Inputs: Ideal for interfacing with sensors and switches in AS-i networks.
- M12 Socket Connections: Each input is equipped with its own industry-standard M12 socket for direct and secure connection.
- IP67 Protection: Fully sealed housing allows for installation in wash-down areas and outdoor-rated applications.
- AS-Interface Compatible: Seamless integration into decentralized control architectures using the AS-i fieldbus system.
- Wide Voltage Range: Operates on 20 to 30 VDC input power, supporting standard industrial supplies.
- 200 mA Total Input Current: Sufficient for typical field input signal levels.
- Compact K45 Form Factor: Designed for easy mounting close to field devices, reducing wiring costs.
- LED Diagnostics: Integrated status LEDs for each channel support fast visual troubleshooting and maintenance.
- Mounting Plate Required: Compatible with 3RK1901-2EA00 or 3RK1901-2DA00 mounting accessories (sold separately).
- Extended Temperature Range: Rated for operation from –40 °C to +85 °C, suitable for extreme conditions.
The 3RK1200-0CQ20-0AA3 is engineered to simplify field-level wiring while maintaining high reliability and diagnostics in AS-Interface digital input applications.
