3RK1395-6LS71-2AD0 | Siemens Motor Starter M200D Technology Module
- Regular price
- $1,045.00
- Sale price
- $1,045.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RK1395-6LS71-2AD0
Description
Siemens 3RK1395-6LS71-2AD0 sirius motor starter m200d technology module direct on-line-starter electronical switching 3 400v ac/5,5kw; 1,5a...12,00a; electr. overload protection; thermistor: thermoclick / ptc without brake contact 4di / 2do han q4/2 - han q8/0 with operator terminal & key-operated switch using a communications module 3rk1305* usable with profibus or profinet.
Technical Specifications
| Brand | Siemens |
| Part Number | 3RK1395-6LS71-2AD0 |
| Category | Contactors & Starters |
| Subcategory | Starter |
| Motor Drive Type | DOL Starter |
| Operating Supply Voltage | 20.4 VDC to 28.8 VDC |
| Current Rating | 12 A |
| Power Rating | 5.5 kW |
| Number of Phases | 3 Phase |
| Features | Non-reversing, Mechanical Switching and Electronic Overload Protection |
| IP Rating | IP65 |
| No. of Poles | 3 Pole |
| Supply Voltage Min | 360VAC |
| Supply Voltage Max | 440VAC |
| Product Range | SIRIUS M200D |
Information About 3RK1395-6LS71-2AD0

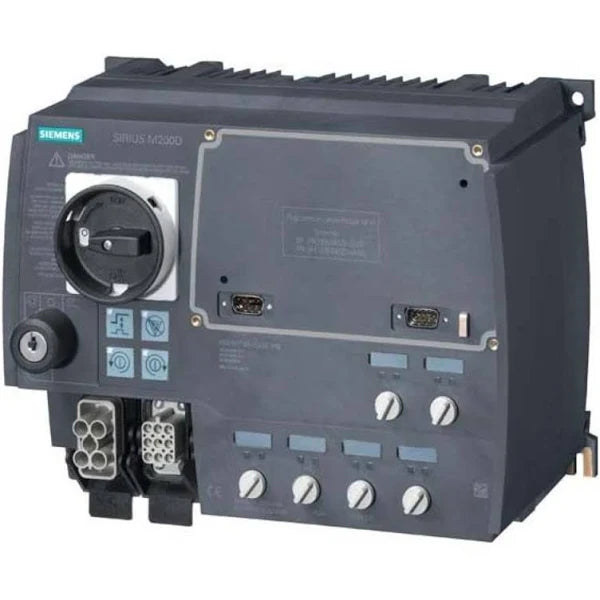

The Siemens 3RK1395-6LS71-2AD0 is a Motor Starter M200D Technology Module, part of the SIRIUS M200D product range, designed for Direct-On-Line (DOL) starting applications. Operating within a voltage range of 20.4 VDC to 28.8 VDC, this module provides reliable motor control for 3-phase systems with a current rating of 12 A and a power rating of 5.5 kW.
This technology module features a non-reversing design, incorporating both mechanical switching and electronic overload protection for enhanced safety and operational efficiency. With an IP65 rating, it offers robust protection against dust and water ingress, ensuring durability in challenging industrial environments.
The 3RK1395-6LS71-2AD0 is a 3-pole motor starter, compatible with supply voltages ranging from 360VAC to 440VAC. The Direct-On-Line starting configuration simplifies motor control, making it suitable for various industrial applications.
Compact and versatile, this technology module combines the benefits of mechanical switching with electronic protection, providing a reliable solution for motor starting. It is an integral component of the SIRIUS M200D product range, contributing to efficient and safe motor control in diverse industrial settings.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
