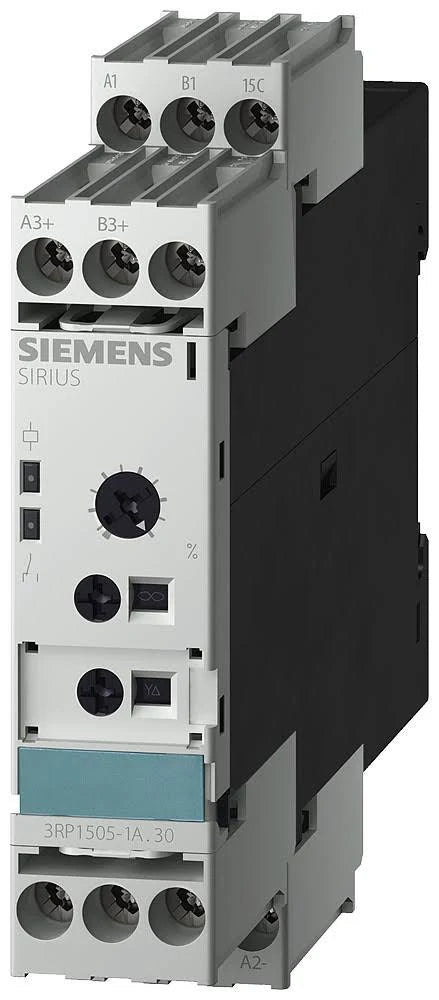

3RP1505-1AQ30 | Siemens Timing Relay
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RP1505-1AQ30
Description
The Siemens 3RP1505-1AQ30 is a multifunction timing relay with adjustable time delays, operating at 24–240 V AC/DC.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category | Controls & Indicators |
| Part Number | 3RP1505-1AQ30 |
| Subcategory | Time Delay Relay |
| Operating Voltages | 100–127 V AC / 24 V DC |
| Frequency | 50/60 Hz |
| Status Indication | LED indicator |
| Functions | 8 timing functions |
| Time Ranges | 15 selectable time setting ranges |
| Terminal Type | Screw terminals |
| Weight | 0.25 lbs |
Information About 3RP1505-1AQ30
The Siemens 3RP1505-1AQ30 is a compact multifunction timing relay from the SIRIUS series, designed for precise time-delay control in industrial automation and control panel applications. It offers flexible timing functions and a wide voltage range, making it suitable for various switching and control tasks.
Key Features:
-
Product Type: Multifunction timing relay
-
Series: SIRIUS
-
Control Voltage: 24–240 V AC/DC
-
Output Contact: 1 changeover contact (SPDT)
-
Time Delay Range: Adjustable from 0.05 seconds to 100 hours
-
Timing Functions: ON-delay, OFF-delay, pulse, interval, and more
-
Mounting Type: DIN-rail mountable (35 mm standard rail)
-
Terminal Type: Screw terminals
-
Housing Width: 17.5 mm (compact design)
-
Status Indication: LED indicators for power and timing state
-
Certifications: IEC, EN, UL, CSA compliant
This timing relay is ideal for applications requiring accurate switching delays in machinery, lighting, HVAC, and industrial control systems. Its versatile functionality, compact size, and broad voltage compatibility make it a reliable solution for both new installations and retrofit projects.
Description
The Siemens 3RP1505-1AQ30 is a multifunction timing relay with adjustable time delays, operating at 24–240 V AC/DC.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category | Controls & Indicators |
| Part Number | 3RP1505-1AQ30 |
| Subcategory | Time Delay Relay |
| Operating Voltages | 100–127 V AC / 24 V DC |
| Frequency | 50/60 Hz |
| Status Indication | LED indicator |
| Functions | 8 timing functions |
| Time Ranges | 15 selectable time setting ranges |
| Terminal Type | Screw terminals |
| Weight | 0.25 lbs |
Information About 3RP1505-1AQ30
The Siemens 3RP1505-1AQ30 is a compact multifunction timing relay from the SIRIUS series, designed for precise time-delay control in industrial automation and control panel applications. It offers flexible timing functions and a wide voltage range, making it suitable for various switching and control tasks.
Key Features:
-
Product Type: Multifunction timing relay
-
Series: SIRIUS
-
Control Voltage: 24–240 V AC/DC
-
Output Contact: 1 changeover contact (SPDT)
-
Time Delay Range: Adjustable from 0.05 seconds to 100 hours
-
Timing Functions: ON-delay, OFF-delay, pulse, interval, and more
-
Mounting Type: DIN-rail mountable (35 mm standard rail)
-
Terminal Type: Screw terminals
-
Housing Width: 17.5 mm (compact design)
-
Status Indication: LED indicators for power and timing state
-
Certifications: IEC, EN, UL, CSA compliant
This timing relay is ideal for applications requiring accurate switching delays in machinery, lighting, HVAC, and industrial control systems. Its versatile functionality, compact size, and broad voltage compatibility make it a reliable solution for both new installations and retrofit projects.
