Product Description P/N: 3RP2505-1BW30

Description / Specifications

Description

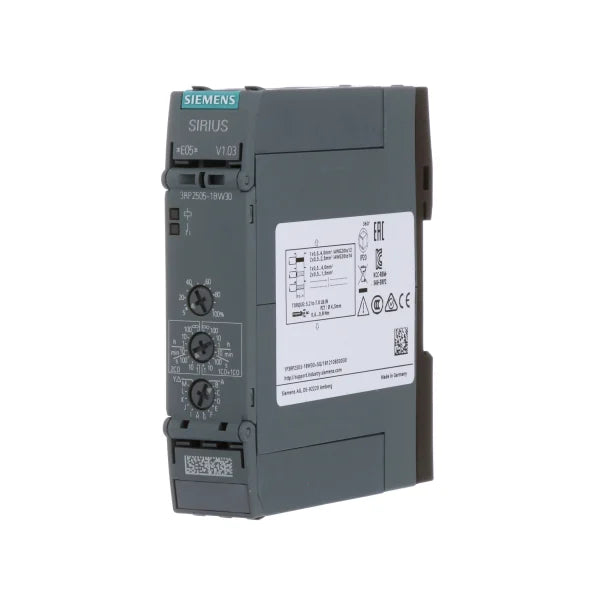

The Siemens 3RP2505-1BW30 Time Delay Relay belongs to the 3RP25 Series and features a multifunction design with 2 change-over contacts. It supports 27 functions and offers 7 time ranges ranging from 0.05 seconds to 100 hours. Operating within a voltage range of 12-240V AC/DC at 50/60 Hz, the relay is equipped with LED indicators for status indication. It utilizes screw terminals for easy and secure connection in electrical circuits.



Technical Specifications



Specifications





Part #

3RP2505-1BW30

Manufacturer

SIEMENS

Category

Controls & Indicators

Subcategory

Time Delay Relay Product component

Relay output

Yes

Semi-conductor output

No

Product extension required remote control

No

Product extension optional remote control

No

Insulation voltage

- for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value 300 V

Test voltage for isolation test

2.5 kV

Degree of pollution

3

Surge voltage resistance

Rated value 4,000 V

Protection class IP

IP20 acc. to IEC 60068-2-27 11g / 15 ms

Vibration resistance

acc. to IEC 60068-2-6 10 ... 55 Hz / 0.35 mm

Mechanical service life (switching cycles)

Typical 10,000,000

Electrical endurance (switching cycles)

At AC-15 at 230 V typical 100,000

Adjustable time

0.05 s ... 100 h

Relative setting accuracy relating to full-scale value

5%

Thermal current

5 A

Minimum ON period

35 ms

Recovery time

250 ms

Type of voltage of the control supply voltage

AC/DC

Control supply voltage 1 at AC

At 50 Hz 12 ... 240 V; At 60 Hz 12 ... 240 V

Control supply voltage frequency 1

50 ... 60 Hz

Control supply voltage 1 at DC

12 ... 240 V

Operating range factor control supply voltage rated value at DC

Initial value 0.8; Full-scale value 1.1

Operating range factor control supply voltage rated value at AC at 50 Hz

Initial value 0.8; Full-scale value 1.1

Operating range factor control supply voltage rated value at AC at 60 Hz

Initial value 0.8; Full-scale value 1.1

Inrush current peak

At 24 V 0.3 A; At 240 V 5 A

Duration of inrush current peak

At 24 V 0.3 ms; At 240 V 0.5 ms; At 24 V 1 A; At 125 V 0.2 A; At 250 V 0.1 A

Operating frequency with 3RT2 contactor

Maximum 5,000 1/h

Contact reliability of auxiliary contacts

One incorrect switching operation of 100 million switching operations (17 V, 5 mA)

Contact rating of auxiliary contacts according to UL

R300 / B300

Influence of the surrounding temperature

1% in the whole temperature range to the set runtime

Power supply influence

1% in the whole voltage range to the set runtime

Switching capacity current with inductive load

0.01 ... 3 A





Information About 3RP2505-1BW30



The Siemens 3RP2505-1BW30 Time Delay Relay, part of the 3RP25 Series, is a multifunctional device designed for industrial applications requiring precise timing control. It features a Double-Pole Double-Throw (DPDT) configuration, providing versatility in switching operations. The relay operates within a voltage range of 12-240V AC/DC, accommodating various power supply configurations commonly encountered in industrial environments.

Equipped with screw terminals, the 3RP2505-1BW30 offers ease of installation and secure connection within electrical circuits. Its design incorporates two change-over contacts, enhancing flexibility in relay configurations to suit diverse control requirements. The relay supports 27 functions, enabling a wide range of timing applications.

With seven selectable time ranges spanning from 0.05 seconds to 100 hours, the relay allows for precise adjustment to meet specific timing needs. This granularity in timing settings enhances the relay's adaptability across a spectrum of industrial processes and automation tasks.

The 3RP2505-1BW30 Time Delay Relay is engineered to deliver reliable performance in demanding operating conditions. Its compatibility with both AC and DC voltages, ranging from 12V to 240V, ensures versatility and compatibility with different power systems commonly encountered in industrial settings.

The inclusion of LED indicators provides visual feedback on relay status, enhancing operational monitoring and troubleshooting capabilities. This feature allows operators to quickly assess the relay's operating state, facilitating efficient maintenance and diagnosis of potential issues.

The screw terminal design of the relay facilitates straightforward wiring and installation procedures, reducing installation time and effort. This feature contributes to overall system efficiency and minimizes downtime during installation and maintenance activities.
