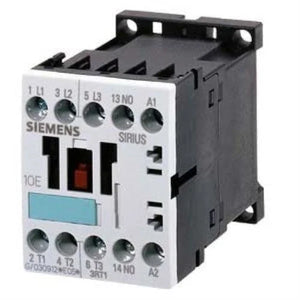

3RT1015-1AB01 | Siemens Power Contactor
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RT1015-1AB01
Description
The Siemens 3RT1015-1AB01 is a compact power contactor from the SIRIUS series, designed for switching motors up to 4 kW at 400 V AC.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Contactors & Starters
|
| Part Number | 3RT1015-1AB01 |
| Subcatecory |
Contactor
|
|
Amperage
|
7 Amp |
| Conductor Size | 20-16 AWG/18-14 AWG/12 AWG |
| Mounting Type | 35 mm DIN Rail (EN 50022) |
|
Power Rating
|
3 kW at 400 V |
|
Coil Voltage
|
24 VAC |
|
Contact Configuration
|
1 NO |
|
Number of Poles
|
3 Pole |
|
Temperature Rating
|
-25 to 60°C Ambient |
|
Weight
|
0.207 kgs |
|
Dimensions
|
50,00 x 63,50 x 77,00 mm |
Information About 3RT1015-1AB01
The Siemens 3RT1015-1AB01 is a compact, high-performance 3-pole power contactor from the SIRIUS series, designed for reliable motor control and industrial automation systems. It ensures efficient operation, robust motor switching, and easy integration into modern control panels.
Key Features:
-
Rated Operational Voltage: 400 V AC (AC-3)
-
Control Voltage: 24 V AC (50/60 Hz)
-
Motor Power Rating: 3 kW (at 400 V)
-
Rated Operating Current: 7 A (AC-3, 400 V)
-
Contactor Size: S00 (compact design for space-saving applications)
-
Main Contacts: 3 NO (normally open)
-
Auxiliary Contacts: 1 NO (normally open)
-
Terminal Type: Screw-type terminals for secure and efficient wiring
-
Mounting Method: DIN rail or panel mounting for versatile installation
-
Protection Class: IP00 (suitable for enclosed or protected environments)
-
Control Type: Electromagnetic coil, AC-operated
-
Weight: Approximately 0.26 kg
-
Dimensions (L x W x H): 45 mm x 45 mm x 58 mm
-
Compliance: IEC 60947 standards for low-voltage switchgear and controlgear
The 3RT1015-1AB01 is ideal for applications requiring dependable motor control in compact spaces. Its robust construction, reliable switching capabilities, and Siemens’ engineering excellence make it a trusted choice for both new installations and system upgrades.
Description
The Siemens 3RT1015-1AB01 is a compact power contactor from the SIRIUS series, designed for switching motors up to 4 kW at 400 V AC.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Contactors & Starters
|
| Part Number | 3RT1015-1AB01 |
| Subcatecory |
Contactor
|
|
Amperage
|
7 Amp |
| Conductor Size | 20-16 AWG/18-14 AWG/12 AWG |
| Mounting Type | 35 mm DIN Rail (EN 50022) |
|
Power Rating
|
3 kW at 400 V |
|
Coil Voltage
|
24 VAC |
|
Contact Configuration
|
1 NO |
|
Number of Poles
|
3 Pole |
|
Temperature Rating
|
-25 to 60°C Ambient |
|
Weight
|
0.207 kgs |
|
Dimensions
|
50,00 x 63,50 x 77,00 mm |
Information About 3RT1015-1AB01
The Siemens 3RT1015-1AB01 is a compact, high-performance 3-pole power contactor from the SIRIUS series, designed for reliable motor control and industrial automation systems. It ensures efficient operation, robust motor switching, and easy integration into modern control panels.
Key Features:
-
Rated Operational Voltage: 400 V AC (AC-3)
-
Control Voltage: 24 V AC (50/60 Hz)
-
Motor Power Rating: 3 kW (at 400 V)
-
Rated Operating Current: 7 A (AC-3, 400 V)
-
Contactor Size: S00 (compact design for space-saving applications)
-
Main Contacts: 3 NO (normally open)
-
Auxiliary Contacts: 1 NO (normally open)
-
Terminal Type: Screw-type terminals for secure and efficient wiring
-
Mounting Method: DIN rail or panel mounting for versatile installation
-
Protection Class: IP00 (suitable for enclosed or protected environments)
-
Control Type: Electromagnetic coil, AC-operated
-
Weight: Approximately 0.26 kg
-
Dimensions (L x W x H): 45 mm x 45 mm x 58 mm
-
Compliance: IEC 60947 standards for low-voltage switchgear and controlgear
The 3RT1015-1AB01 is ideal for applications requiring dependable motor control in compact spaces. Its robust construction, reliable switching capabilities, and Siemens’ engineering excellence make it a trusted choice for both new installations and system upgrades.
