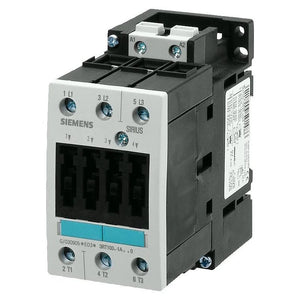

3RT1036-1AK60 | Siemens Power Contactor
- Regular price
- $372.00
- Sale price
- $372.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RT1036-1AK60
Description
The Siemens 3RT1036-1AK60 is a 3-pole power contactor from the SIRIUS series, designed for controlling electric motors and other industrial loads.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category | Contactors & Starters |
| Part Number | 3RT1036-1AK60 |
| Subcategory |
Contactors
|
|
Device Type
|
Power Contactor |
|
Contactor Size
|
S2 |
|
Rated Current (AC-3)
|
50 A |
| Power Rating | 22 kW @ 400 V |
| Coil Voltage | 110/120 VAC |
| Frequency | 50/60 Hz |
| Main Contacts | 3 Normally Open (3-NO) |
| Poles | 3-Pole |
| Dimensions (H x W x D) | 112 x 55 x 115 mm |
| Enclosure Protection Rating | IP20 |
| Weight | 0.842 kgs |
Information About 3RT1036-1AK60
The Siemens 3RT1036-1AK60 is a 3-pole IEC contactor from the SIRIUS Classic series, engineered for dependable motor and load switching in industrial control applications. With its robust Size S2 frame and 50 A current rating, it provides reliable performance for systems requiring consistent and safe operation of electric motors and power circuits.
Key Features:
- Application: Designed for controlling electric motors and other resistive or inductive loads in industrial automation systems such as conveyors, compressors, and pumps.
- Contactor Type: Features 3 normally open (NO) main contacts suitable for AC-3 applications up to 22 kW at 400 V, making it ideal for starting and stopping motors.
- Electrical Ratings: AC-3 Rating: 50 A at 400 V (approx. 40 HP at 460 V); AC-1 Rating: 60 A at 400 V
- Motor power: Up to 15 HP at 230 V, 40 HP at 460 V
- Coil Voltage: Operates on a 110 V AC (50 Hz) / 120 V AC (60 Hz) control voltage, ensuring compatibility with common industrial power supplies.
- Mounting Style: Suitable for both DIN rail and screw mounting, allowing flexible installation in standard electrical enclosures.
- Terminal Type: Screw-type terminals provide secure and reliable wiring connections.
- Auxiliary Contacts: Expandable with optional front and side-mounted auxiliary contact blocks for added control functionality.
- Mechanical Durability: Rated for up to 10 million mechanical operations, offering long service life in demanding environments.
- Environmental Ratings: Operating Temperature: -25°C to +60°C; Storage Temperature: -55°C to +80°C; Installation Altitude: Up to 2,000 m
- Protection Class: IP00 (typically used within enclosed panels)
-
Certifications: Conforms to IEC 60947-4-1 standards for global acceptance and compliance with industrial safety norms.
The 3RT1036-1AK60 is a durable and high-performance contactor trusted for motor control tasks in various automation scenarios. Its solid construction, compatibility with expansion accessories, and wide operating range make it a dependable choice for both OEMs and end-users maintaining legacy systems.
