3RT2016-1BB41 | Siemens Sirius 3-Phase DC-Coil Contactor With 9 A Rating And 1NO Auxiliary Contact
- Regular price
- $82.00
- Sale price
- $82.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RT2016-1BB41
Description

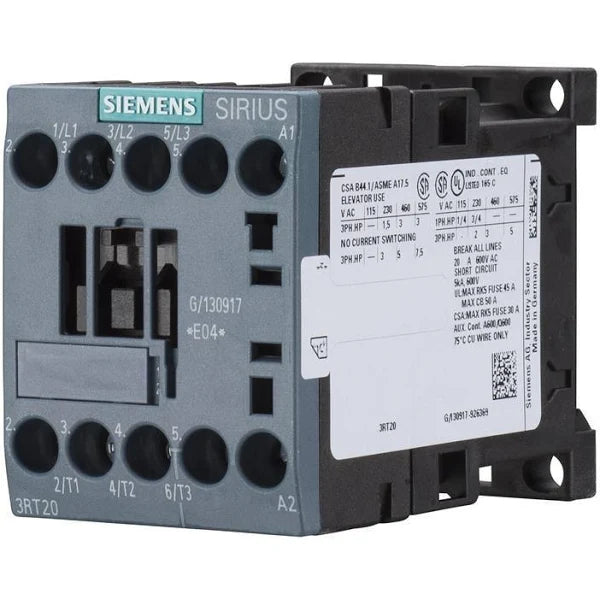

The Siemens 3RT2016-1BB41 is a Sirius series 3-phase contactor designed for motor control applications. It supports motors up to 3 HP at 230 V and 5 HP at 460 V, providing dependable switching performance. The 3RT2016-1BB41 includes a 24 VDC coil and one integrated normally open auxiliary contact for additional control functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Contactors & Starters |
| Part Number | 3RT2016-1BB41 |
| Subcategory | Contactor |
| Type | 3-Phase |
| Coil Voltage | 24 VDC |
| Maximum Load Current | 9 A |
| Coil Power Rating | 4 W closing/holding |
| Number of Poles | 3 |
| Frequency Rating | 50–60 Hz |
| Wattage | 4 kW |
| Contact Configuration | 1NO |
| Number of Auxiliary Contacts | 1 |
| Contact Rating | 9 A at 400 VAC |
| Size | S00 |
| Terminal Type | Screw |
| Enclosure Type | IP20 |
| Operating Cycles | 30,000,000 cycles |
| Operating Temperature | -25 to 60 °C |
| Mounting Type | DIN rail, snap-on, threaded |
| Dimensions | 57.5 mm (H) × 45 mm (W) × 73 mm (D) |
Information About 3RT2016-1BB41
The 3RT2016-1BB41 is part of the Siemens Sirius 3RT2 contactor family, built to deliver compact, modular, and reliable switching for motor and power circuits. This Size S00 device features a three-pole construction with a 24 VDC coil and screw terminals for straightforward wiring. It integrates seamlessly with Siemens protection components such as 3RU21 thermal overload relays and 3RB30 solid-state overload relays, making it suitable for coordinated starter assemblies. Typical use cases include motor starters, control panels, and automated systems requiring a durable IEC-rated contactor with enhanced auxiliary contact expansion options.
Key Features:
- 3-phase IEC contactor: Suitable for controlling motors up to 5 HP at 460 V.
- 24 VDC coil operation: Provides reliable actuation with low coil power consumption.
- 9 A maximum load current: Supports a wide range of small motor and general-purpose loads.
- Integrated 1NO auxiliary contact: Adds control flexibility for status or interlock signaling.
- Size S00 design: Compact footprint for dense panel layouts and modular system integration.
- Multiple mounting options: Supports DIN rail, snap-on, or threaded installation.
- IP20 finger-safe construction: Enhances operator safety during installation and wiring.
- Compatible with Siemens overload relays: Allows configuration into complete motor starter assemblies.
The 3RT2016-1BB41 delivers the reliability and precision required for industrial motor control and panel-mounted switching applications.
Description
The Siemens 3RT2016-1BB41 is a Sirius series 3-phase contactor designed for motor control applications. It supports motors up to 3 HP at 230 V and 5 HP at 460 V, providing dependable switching performance. The 3RT2016-1BB41 includes a 24 VDC coil and one integrated normally open auxiliary contact for additional control functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Contactors & Starters |
| Part Number | 3RT2016-1BB41 |
| Subcategory | Contactor |
| Type | 3-Phase |
| Coil Voltage | 24 VDC |
| Maximum Load Current | 9 A |
| Coil Power Rating | 4 W closing/holding |
| Number of Poles | 3 |
| Frequency Rating | 50–60 Hz |
| Wattage | 4 kW |
| Contact Configuration | 1NO |
| Number of Auxiliary Contacts | 1 |
| Contact Rating | 9 A at 400 VAC |
| Size | S00 |
| Terminal Type | Screw |
| Enclosure Type | IP20 |
| Operating Cycles | 30,000,000 cycles |
| Operating Temperature | -25 to 60 °C |
| Mounting Type | DIN rail, snap-on, threaded |
| Dimensions | 57.5 mm (H) × 45 mm (W) × 73 mm (D) |
Information About 3RT2016-1BB41
The 3RT2016-1BB41 is part of the Siemens Sirius 3RT2 contactor family, built to deliver compact, modular, and reliable switching for motor and power circuits. This Size S00 device features a three-pole construction with a 24 VDC coil and screw terminals for straightforward wiring. It integrates seamlessly with Siemens protection components such as 3RU21 thermal overload relays and 3RB30 solid-state overload relays, making it suitable for coordinated starter assemblies. Typical use cases include motor starters, control panels, and automated systems requiring a durable IEC-rated contactor with enhanced auxiliary contact expansion options.
Key Features:
- 3-phase IEC contactor: Suitable for controlling motors up to 5 HP at 460 V.
- 24 VDC coil operation: Provides reliable actuation with low coil power consumption.
- 9 A maximum load current: Supports a wide range of small motor and general-purpose loads.
- Integrated 1NO auxiliary contact: Adds control flexibility for status or interlock signaling.
- Size S00 design: Compact footprint for dense panel layouts and modular system integration.
- Multiple mounting options: Supports DIN rail, snap-on, or threaded installation.
- IP20 finger-safe construction: Enhances operator safety during installation and wiring.
- Compatible with Siemens overload relays: Allows configuration into complete motor starter assemblies.
The 3RT2016-1BB41 delivers the reliability and precision required for industrial motor control and panel-mounted switching applications.
