3RT2026-1AK60 | Siemens Contactor, AC3:11kW 1NO+1NC 110V50H120V60
- Regular price
- $117.00
- Sale price
- $117.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 3RT2026-1AK60
Description

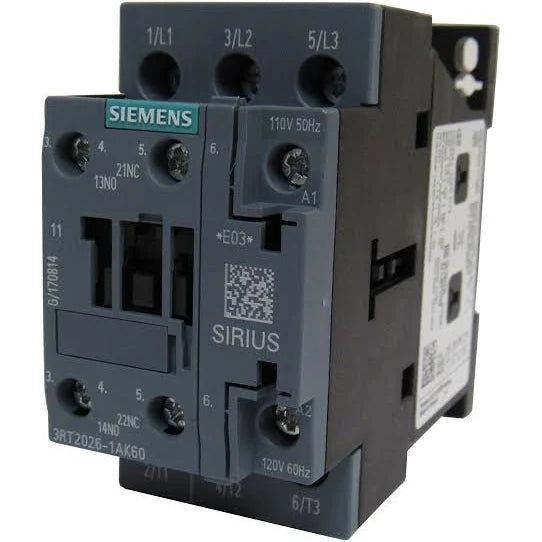

The Siemens Sirius 3RT2026-1AK60 is a 3-phase IEC rated contactor used for the control of electric motors. It is rated 7.5 HP at 230V and 15 HP at 460V.
Technical Specifications
Brand | Siemens |
Part Number | 3RT2026-1AK60 |
Category | Contactors & Starters |
Subcategory | Contactor |
Coil Power Rating | 8.5/10.5/79/81 VA, 81/79 VA Pickup, 10.5/8.5 VA Holding |
Coil Voltage | 110/120 VAC |
Contact Configuration | 1NC-1NO, 1NO-1NC |
Contact Rating | 25 A at 400 VAC |
Dimensions | 85 mm H x 45 mm W x 97 mm D |
Enclosure Type | IP20 |
Frequency Rating | 50/60 Hz |
Mounting type | DIN Rail/Snap-On/Threaded |
Number of Auxiliary Contacts | 2 |
Number of Poles | 3 |
Operating Cycles | 10000000 Cycles |
Operating Temperature | -25 to 60 deg C |
Power factor | 0.25/0.28/0.72/0.74, 0.72/0.74 Closing, 0.25/0.28 Holding |
Size | Size S0 |
Terminal Type | Screw |
Type | Standard |
Wattage | 11 kW |
Information About 3RT2026-1AK60
The Siemens 3RT2026-1AK60 is a versatile contactor designed for industrial applications, featuring a 3-pole configuration. With a coil voltage of 110/120 VAC, it supports efficient AC3 operation up to 11 kW, offering reliable switching capabilities. The contactor's compact design, measuring 85 mm in height, 45 mm in width, and 97 mm in depth, ensures easy integration into control panels.
This contactor is equipped with a coil power rating of 8.5/10.5/79/81 VA for pickup and 10.5/8.5 VA for holding, enhancing energy efficiency. The 1NC-1NO and 1NO-1NC contact configuration provides flexibility in circuit design, while the 25 A contact rating at 400 VAC ensures robust performance in demanding industrial environments.
Featuring an IP20 enclosure, the 3RT2026-1AK60 provides protection against solid objects, making it suitable for various indoor applications. It supports DIN Rail/Snap-On/Threaded mounting for ease of installation. With a power factor of 0.25/0.28/0.72/0.74 during closing and 0.72/0.74 during holding, it optimizes energy usage. The contactor is rated for 10,000,000 operating cycles, ensuring long-term reliability. Operating temperature range of -25 to 60 deg C and a wattage of 11 kW further exemplify its robust design. With 2 auxiliary contacts, screw terminals, and compliance with Size S0 standards, the 3RT2026-1AK60 stands out as a dependable and versatile solution for industrial switching applications.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
