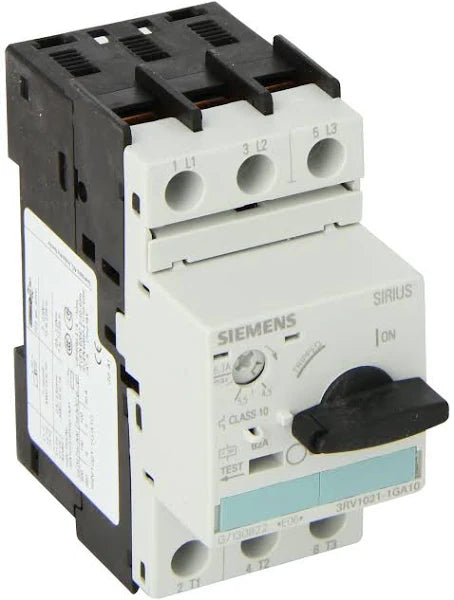

3RV1021-1GA10 | Siemens Circuit-Breaker
- Regular price
- $197.00
- Sale price
- $197.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RV1021-1GA10
Description
The Siemens 3RV1021-1GA10 is a circuit-breaker with a size classification of s0, primarily designed for motor protection applications. It operates within a current range of 4.5 to 6.3 amps, with a rated current of 4.5 amps under "a" conditions and 82 amps under "n" conditions. Equipped with screw terminals, it offers standard switching capacity and is classified as a class 10 circuit-breaker.
Technical Specifications
|
Part # |
3RV1021-1GA10 |
|
Manufacturer |
SIEMENS |
|
Category |
Circuit Breaker |
|
Subcategory |
Din Rail Mount Circuit Breaker |
|
Auxiliary switch |
Yes |
|
Power loss [W] total typical |
6 W |
|
Surge voltage resistance rated value |
6,000 V |
|
Protection class |
IP20 |
|
Shock resistance |
25g / 11 ms |
|
Mechanical service life (switching cycles) - of the main contacts |
100,000 |
|
Installation altitude at height above sea level maximum |
2,000 m |
|
Ambient temperature - during operation |
-20 ... +60 °C |
|
Ambient temperature - during storage |
-50 ... +80 °C |
|
Ambient temperature - during transport |
-50 ... +80 °C |
|
Adjustable pick-up value current of the current-dependent overload release |
4.5 ... 6.3 A |
|
Operating voltage - rated value |
690 V |
|
Operating voltage - at AC-3 rated value maximum |
690 V |
|
Operating current - at AC-3 - at 400 V rated value |
6.3 A |
|
Operating power - at AC-3 - at 400 V rated value |
2.2 kW |
|
Operating frequency - at AC-3 maximum |
15 1/h |
|
Operating frequency - at AC at 240 V rated value |
100 kA |
|
Operating frequency - at AC at 400 V rated value |
100 kA |
|
Operating frequency - at AC at 500 V rated value |
100 kA |
|
Operating frequency - at AC at 690 V rated value |
6 kA |
Information About 3RV1021-1GA10
The Siemens 3RV1021-1GA10 is a circuit-breaker designed for motor protection applications. It is classified as size s0 and features a standard switching capacity. The circuit-breaker operates within a current range of 4.5 to 6.3 amps. Under "a-rel" conditions, it has a rated current range of 4.5 to 6.3 amps, while under "n-rel" conditions, the rated current is 82 amps.
This circuit-breaker is equipped with screw terminals for easy installation and connection. It is designed to provide motor protection according to class 10 standards. The device is suitable for use in various industrial environments where motor protection is required.
The 3RV1021-1GA10 circuit-breaker offers reliable protection for motors against overload conditions and short circuits. It ensures the safety and efficient operation of motor-driven equipment by interrupting the circuit in case of abnormal current conditions.
With its compact size and durable construction, this circuit-breaker is ideal for integration into control panels and electrical systems. It is compliant with relevant industry standards and regulations, ensuring compatibility and safety in diverse applications.
The circuit-breaker is rated for an operating voltage of up to 690 volts, making it suitable for a wide range of electrical systems. It offers reliable performance even in demanding industrial environments with temperatures ranging from -20 to +60 degrees Celsius during operation.
Additionally, the device is designed for longevity and robustness, with a mechanical service life of up to 100,000 switching cycles for the main contacts. It also provides surge voltage resistance up to 6,000 volts, ensuring reliable operation even in environments with electrical disturbances.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
