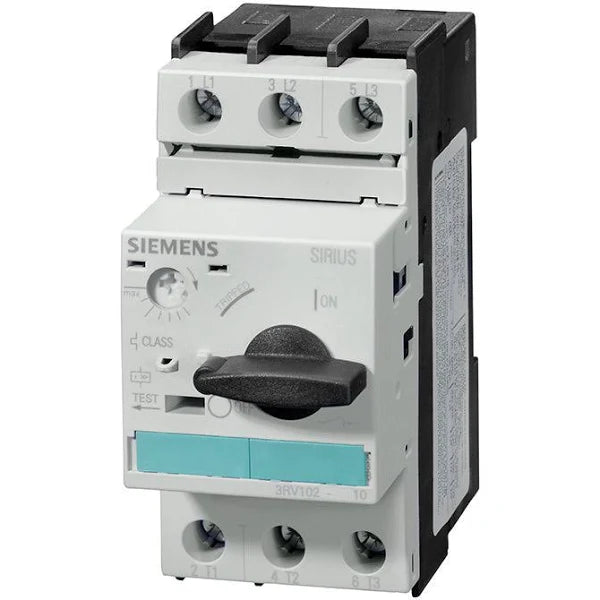

3RV1021-1JA10 | Siemens Circuit-Breaker, 7...10 A
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RV1021-1JA10
Description
The Siemens 3RV1021-1JA10 is a circuit breaker / motor protector, with an on/off rotary dial for setting motor FLA. It has built-in heater elements that provide overload protection and magnetic trip elements to protect the motor.
Technical Specifications
| Brand | Siemens |
| Part Number | 3RV1021-1JA10 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Power Loss | 7 Watt |
| Size | 45 mm Width x 96 mm Depth x 97 mm Height |
| Sub Brand | Sirius |
| Temperature Rating | -20 to 60 deg C Operating, -50 to 80 deg C Storage/Transport |
| Terminal Connection | Screw |
| Voltage Rating | 690 Volt AC |
| Trip Type | Thermal Magnetic |
| Phase | 1 or 3 |
| Number of Poles | 3 |
| Frame | S0 |
| Environmental Conditions | 10 - 95% Relative Humidity |
| Degree of Protection | IP20 (Front) |
| Conductor Size | (2) 1 - 2.5 Sq-mm, (2) 2.5 - 6 Sq-mm Solid/Stranded, (2) 14-10 AWG |
| Amperage Rating | 7 - 10 Amp |
| Interrupt Rating | 10 Kilo-Amp |
| Item Name | Motor Starter Protector |
| Maximum Load Capacity | 1-Phase: 1/2 hp at 115 Volt, 1-1/2 hp at 230 Volt, 3-Phase: 3 hp at 200/230 Volt, 7-1/2 hp at 460 Volt, 10 hp at 575 Volt |
| Mounting | Snap-On |
| Frequency Rating | 50/60 Hz |
Information About 3RV1021-1JA10
The Siemens 3RV1021-1JA10 circuit breaker is a reliable protection device suitable for various applications. With an amperage rating ranging from 7 to 10 amps, it ensures safe operation by interrupting circuits in case of overload or short circuit conditions. Its compact size of 45mm width, 96mm depth, and 97mm height allows for space-efficient installation.
Featuring a thermal magnetic trip type, it offers robust protection against both overloads and short circuits. It supports both single-phase and three-phase configurations, accommodating a wide range of electrical systems. The terminal connection is facilitated through screws, ensuring secure and stable connections.
Operating temperature ranges from -20°C to 60°C, with storage/transport temperature ranging from -50°C to 80°C, making it suitable for diverse environmental conditions. The 3RV1021-1JA10 boasts an IP20 degree of protection at the front, shielding it from solid objects.
With a voltage rating of 690V AC, it can handle various voltage requirements. Its interrupt rating of 10 kilo-amp ensures reliable protection against fault currents. Additionally, it supports conductor sizes ranging from 1 to 2.5 square millimeters, 2.5 to 6 square millimeters for solid/stranded conductors, and 14-10 AWG.
This motor starter protector can handle maximum load capacities, including 1-phase and 3-phase motor loads, ensuring efficient and safe operation of motors. Its snap-on mounting feature simplifies installation, while its frequency rating of 50/60 Hz ensures compatibility with standard power supplies. Overall, the Siemens 3RV1021-1JA10 circuit breaker offers robust protection and reliable performance for various electrical systems.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
