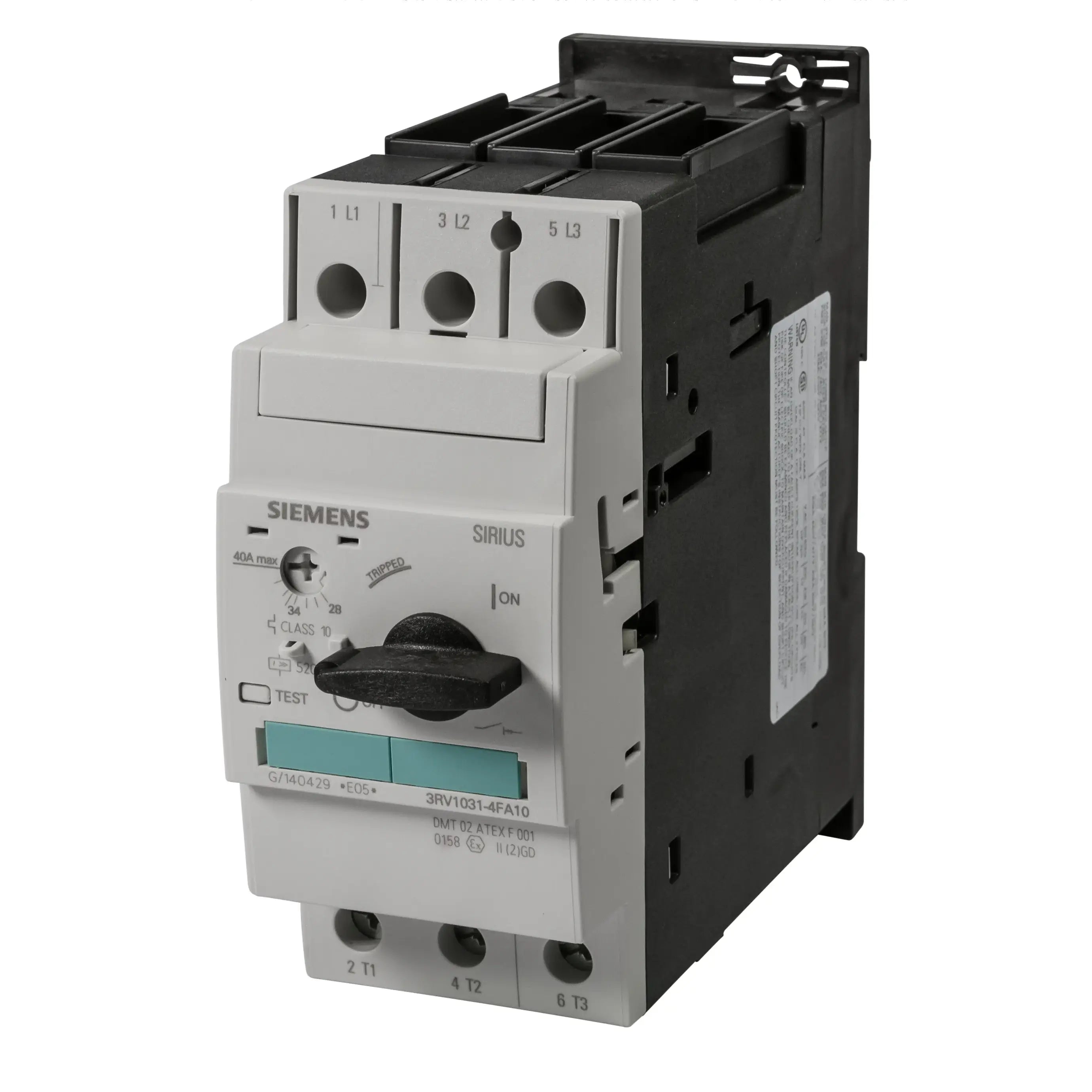

3RV1031-4FA10 | SIEMENS Circuit-Breaker 28...40 A

Description

The 3RV10314FA10 is part of the Siemens SIRIUS series of motor starter protectors, designed to provide comprehensive motor protection in industrial applications. This particular model, the 3RV10314FA10, offers a range of features and specifications that make it a versatile and reliable choice for safeguarding electric motors.

Technical Specifications

Information About 3RV1031-4FA10

Key Features

ON/OFF Rotary Handle with Lockout: The 3RV10314FA10 is equipped with an ON/OFF rotary handle that includes a lockout feature. This allows for easy manual control of the motor and ensures that the motor remains desired without the risk of accidental changes.

Visible Trip Indication: The motor starter protector includes a visible trip indication, which is crucial for quickly identifying when the protection system has detected an issue or fault. This feature aids in timely troubleshooting and maintenance.

Adjustment Dial for Motor FLA: The device includes an adjustment dial that allows users to set it to the Full Load Amperes (FLA) of the motor it is protecting. This customization ensures that the protector is calibrated to the specific motor it is connected to, optimizing motor protection.

Class 10 Overload Trip Characteristics: The 3RV10314FA10 operates with Class 10 overload trip characteristics. This means it responds rapidly to overcurrent conditions to prevent damage to the motor.

Short Circuit Trip: In the event of a short circuit, this motor starter protector can trip at 12 times the maximum setting of the FLA adjustment dial. This provides robust protection against short circuits, minimizing the risk of damage.

Short Circuit Current Rating: The protector is rated to handle short circuit currents effectively. It is designed to function reliably even in environments with fluctuating currents, upholding safety and motor integrity.

Ambient Compensated: The 3RV10314FA10 offers ambient compensation for temperatures up to 140°F (60°C). This feature ensures that the protector's performance remains consistent even in high-temperature environments, making it suitable for a wide range of industrial settings, especially where side-by-side mounting is required.

Phase Loss Sensitivity: The protector includes phase loss sensitivity, detecting situations where a phase is lost in the motor's power supply. This feature helps prevent motor damage due to phase imbalances.

Test Trip Function: For diagnostic and testing purposes, the protector features a test trip function, allowing users to verify its operation without the need for an actual fault occurrence.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
