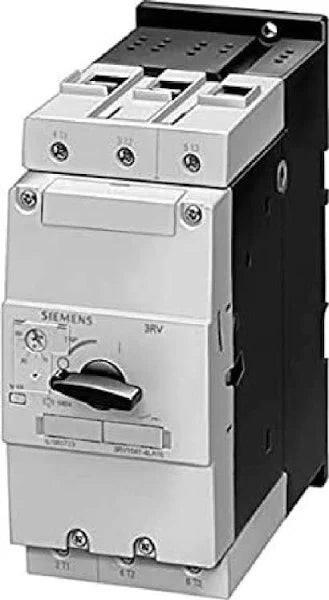

3RV1041-4JA10 | Siemens Circuit-Breaker Size S3
- Regular price
- $382.00
- Sale price
- $382.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 3RV1041-4JA10
Description
The Siemens 3RV1041-4JA10 is a circuit-breaker designed for motor protection, specifically categorized as size S3. It operates with a class 10 characteristic and is suitable for currents ranging from 45 to 63 amperes (a-rel.) and 8 to 19 amperes (n-rel.). The connection is facilitated through screw terminals, and it features standard switching capacity.
Technical Specifications
Part # |
3RV1041-4JA10 |
Manufacturer |
SIEMENS |
Brand |
FURNAS ELECTRIC CO |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Auxiliary switch |
Yes |
Power loss [W] total typical |
20 W |
Surge voltage resistance rated value |
6,000 V |
Protection class |
IP |
- on the front |
IP20 |
Shock resistance |
25g / 11 ms |
Mechanical service life (switching cycles) |
50,000 |
Continuous current rated value |
63 A |
Number of poles for main current circuit |
3 |
Adjustable pick-up value current of the current-dependent overload release |
45 ... 63 A |
- rated value |
690 V |
- at AC-3 rated value maximum |
690 V |
-- at 400 V rated value |
63 A |
-- at 400 V rated value |
30 kW |
- at AC-3 maximum |
15 1/h |
- at AC at 240 V rated value |
100 kA |
- at AC at 400 V rated value |
50 kA |
- at AC at 500 V rated value |
12 kA |
- at AC at 690 V rated value |
6 kA |
Information About 3RV1041-4JA10
The Siemens 3RV1041-4JA10 is a circuit-breaker specifically designed for motor protection, categorized as size S3. It operates with a class 10 characteristic, providing overload protection for motors. The circuit-breaker is rated for currents ranging from 45 to 63 amperes (a-rel.) and 8 to 19 amperes (n-rel.). Its connection is facilitated through screw terminals, ensuring secure and reliable electrical connections. The device offers standard switching capacity, enabling it to interrupt current flow in the event of an overload or short circuit efficiently.
This circuit-breaker serves a crucial role in protecting motors from damage caused by excessive current flow. The class 10 characteristic ensures rapid response to overload conditions, minimizing the risk of motor damage and downtime. The range of rated currents accommodates various motor sizes and applications, offering flexibility in motor protection.
With screw terminals, installation and maintenance of the circuit-breaker are straightforward, allowing for quick and efficient connection to the electrical system. The use of standard switching capacity ensures reliable operation and effective protection against electrical faults.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
