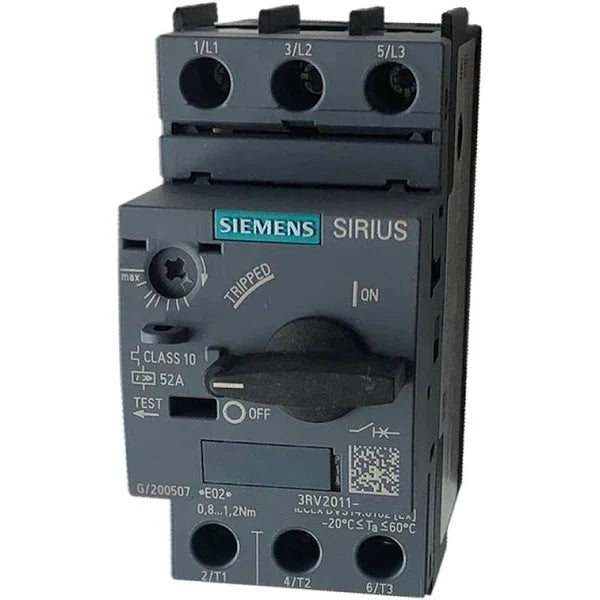

3RV2011-1DA10 | SIEMENS Circuit-Breaker Screw Connection 3.2A
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 3RV2011-1DA10
Description
SIRIUS Motor Protection Circuit Breaker, 690 VAC, 3.2 A, 2.2 kW Power, 50/60 Hz Frequency, 10 kA Interrupt, S00 Frame, Thermomagnetic Trip, 2.2 to 3.2/42 A Trip, 3 Pole, 3 ph, Screw Connection, 18 to 14 AWG, 12 AWG Wire, IP20 Enclosure, DIN Rail/Snap-On/Threaded Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 97 mm D Dimensions
Technical Specifications
Brand | SIEMENS |
Part Number | 3RV2011-1DA10 |
Category | Circuit Breaker |
Subcategory | Molded Case Circuit Breaker |
Amperage Rating | 2.2 to 3.2, 3.2 A |
Connection type | Screw |
Dimensions | 97 mm H x 45 mm W x 96 mm D, 97 mm H x 45 mm W x 97 mm D |
Enclosure Type | IP20 |
Frame | S00 |
Frequency Rating | 50/60, 50/60 Hz |
Interrupt Rating | 10, 10 kA |
Mounting type | DIN Rail, DIN Rail/Snap-On/Threaded |
Number of Poles | 3 |
Phase | 3 |
Power Rating | 2.2, 2.2 kW |
Temperature Rating (Degrees F) | -20 to 60, -20 to 60 deg C |
Trip Range | 2.2 to 3.2/42 A |
Trip Type | Thermal Magnetic, Thermomagnetic |
Type | Type 3RV2 |
Voltage Rating | 690, 690 VAC |
Wire Size | 18 to 14 AWG, 12 AWG |
Information About 3RV2011-1DA10
Siemens 3RV2011-1DA10 motor starter protector with an adjustable AMP range from 2.2 to 3.2 AMPS, a rotary ON/OFF handle and class 10 overload trip characteristics (trips in 10 seconds or less). This Sirius 3RV2011 motor protector has magnetic trip elements for short circuit protection, screw terminals and mounts on standard 35MM DIN rail for easy installation and removal. Optional 3RV2901 2 pole auxiliary contacts, in front or side mount, can be added for motor disconnection during a motor over amperage condition or for signalling via a pilot device.
This series of Siemens Sirius 3RV2011 manual motor starters are approved for Type E protection, otherwise known as a self-protected combination motor controller. With a UL approval, the 3RV2011-1DA10 can be used downstream of a fuse or circuit breaker to provide this level of protection up to 3.2 AMPS. The benefit is that all these protections are provided in one device: overload and short circuit protection, disconnect and motor control. When combined with a the appropriate sized Siemens 3RT2 contactor, full combination motor protection is achieved in one compact, fully functional unit.
FEATURES
Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Standard switch capacity
(2) 18 to 14 AWG, (2) 12 AWG wire
-50 to 80 deg C environmental conditions
Class 10 trip
100000 cycles switching
MSP™ are UL approved as self protected combination motor controllers
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
