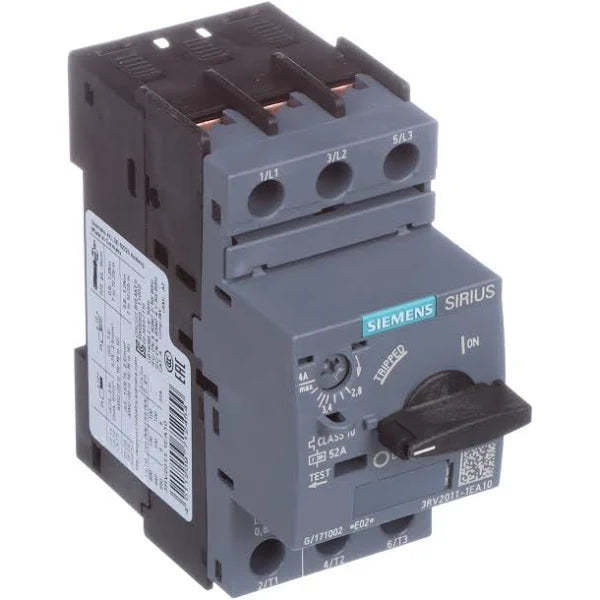

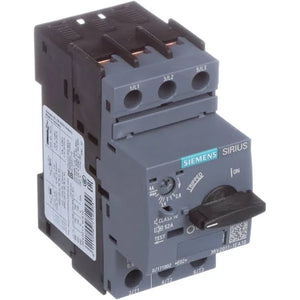

3RV2011-1EA10 | Siemens SIRIUS 3RV2 Motor Protection Circuit Breaker 4 A, Thermomagnetic, S00 Frame
- Regular price
- $117.00
- Sale price
- $117.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RV2011-1EA10
Description
The Siemens 3RV2011-1EA10 is a SIRIUS motor protection circuit breaker designed to provide overload, short-circuit, and manual motor control for three-phase motors. Featuring an adjustable rotary dial for motor full-load current settings, it incorporates thermomagnetic trip elements and built-in heaters to deliver dependable and precise motor protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3RV2011-1EA10 |
| Subcategory | Molded Case Circuit Breaker / Motor Protector |
| Amperage Rating | 4 A |
| Trip Range | 2.8–4 A Thermal / 52 A Instantaneous |
| Trip Type | Thermomagnetic |
| Number of Poles | 3 |
| Phase | 3-Phase |
| Voltage Rating | 690 VAC |
| Power Rating | 3 kW |
| Interrupt Rating | 6 kA |
| Frequency Rating | 50/60 Hz |
| Frame Size | S00 |
| Connection Type | Screw Terminals |
| Mounting Type | DIN Rail / Snap-On / Threaded |
| Enclosure Type | IP20 |
| Dimensions | 97 mm H × 45 mm W × 97 mm D |
| Temperature Rating | −20…60 °C |
| Wire Size Compatibility | 18–14 AWG, 12 AWG |
| Application | Motor Protection / Circuit Isolation |
| Function | Overload, Short-Circuit, and Manual Switching |
Information About 3RV2011-1EA10
The 3RV2011-1EA10 belongs to the Siemens SIRIUS 3RV2 family of compact, current-limiting motor protection circuit breakers designed for use in load feeders. This model, built on the S00 frame size, protects motors up to 3 kW and features an adjustable overload dial for precise motor FLA settings. Its thermomagnetic trip mechanism combines bimetal overload protection with instantaneous short-circuit response, making it suitable for a wide variety of industrial applications. Engineered for DIN rail or panel mounting, the breaker provides simplified installation, reduced heat dissipation, and optimized energy efficiency in control cabinets.
Key Features:
- Thermomagnetic Motor Protection: Integrates thermal overload elements and instantaneous magnetic trip to safeguard motors from both sustained overloads and abrupt short-circuit conditions.
- Adjustable FLA Dial: Allows precise setting of motor full-load current between 2.8 and 4 A, helping ensure correct protection across varying motor types and operating conditions.
- Current-Limiting Design: Reduces fault energy during short-circuit events, helping protect downstream wiring and minimizing thermal stress on control cabinet components.
- Compact S00 Frame: Provides a small footprint for space-constrained environments, enabling high-density feeder assemblies within control panels.
- Flexible Mounting and Wiring: Supports DIN rail, snap-on, or threaded mounting styles and utilizes screw terminals compatible with 18–14 AWG and 12 AWG wiring.
- Wide Operational Temperature Range: Performs reliably from −20 °C to 60 °C, making it suitable for use in harsh industrial and process environments.
- Optimized Thermal Trip Unit: Reduces internal power loss and heat generation, lowering cooling demands and improving overall cabinet efficiency.
- High Fault Withstand Capability: Supports up to 6 kA at 690 VAC and up to 100 kA at lower voltages within the series specifications, offering robust protection performance.
The 3RV2011-1EA10 delivers the reliability and precision required for dependable motor protection, overload control, and circuit isolation in Siemens SIRIUS industrial automation systems.
