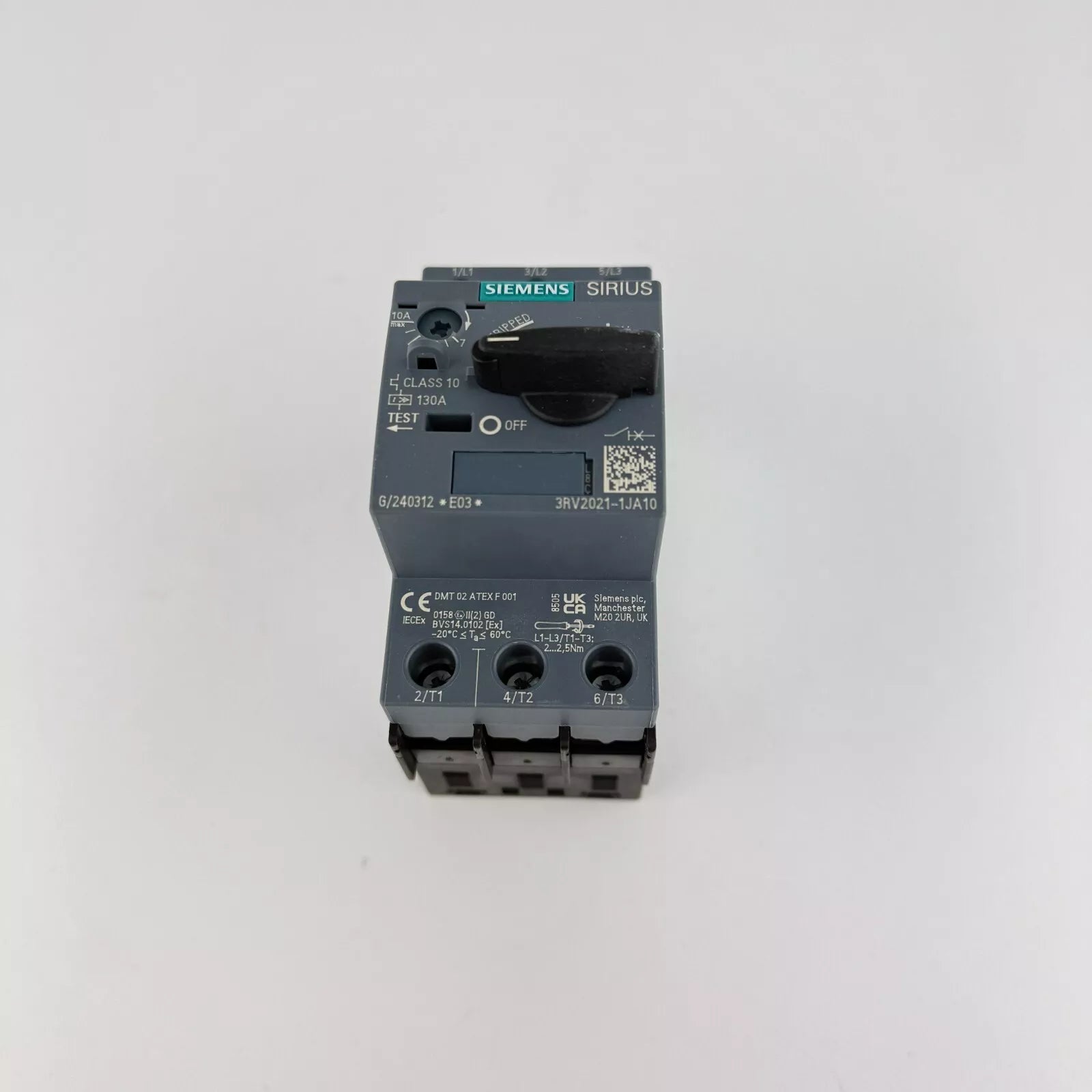

3RV2021-1JA10 | Siemens Circuit Breaker
- Regular price
- $177.00
- Sale price
- $177.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3RV2021-1JA10
Description
The Siemens 3RV2021-1JA10 is a compact motor protection circuit breaker designed for safeguarding motors up to 4 kW (at 400V). It provides reliable protection against overload, short-circuit, and phase failure, making it ideal for use in industrial control panels and motor starter assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category | Contactors and Starters |
| Part Number | 3RV2021-1JA10 |
| Subcategory |
Contactor & Starter Accessories & Parts
|
|
Degree of protection (IP)
|
IP20 |
| Depth | 97mm |
| Number of Poles | 3 |
| Overload Release Current Setting | 7 - 10A |
| Rated Operating Voltage | 690 - 690V |
| Rated Operation Power at AC-3, 230 V |
2.2kW
|
| Rated Operation Power at AC-3, 400 V |
4kW
|
| Rated Permanent Current Iu | 10A |
| Rated Short-Circuit Breaking Capacity lcu at 400 V, AC | 100kA |
| Switch Off Technique | Magnetic |
| Type of Electrical Connection of Main Circuit | Screw connection |
| Width | 45mm |
| Weight | 0.36 kgs |
Information About 3RV2021-1JA10
The Siemens 3RV2021-1JA10 is a motor protection circuit breaker from the SIRIUS series, designed to safeguard motors against overload, short-circuit, and phase failure conditions.
Key Features:
-
Adjustable Current Range: The breaker supports an adjustable current setting between 7 to 10 A, allowing for flexibility in various motor applications.
-
Operating Voltage: It operates within a voltage range of 220 to 690 V AC, accommodating different power systems.
-
Breaking Capacity: The device offers a breaking capacity of up to 100 kA at 400 V AC, ensuring reliable interruption of fault currents.
-
Trip Class: Class 10 trip characteristics provide rapid response to overload conditions, typically tripping within 10 seconds at six times the rated current.
-
Mounting and Connections: Designed for DIN rail mounting, it features screw-type terminals for secure electrical connections.
This circuit breaker is suitable for protecting motors in industrial settings, including manufacturing plants, conveyor systems, and HVAC equipment, where reliable motor protection is essential.
Description
The Siemens 3RV2021-1JA10 is a compact motor protection circuit breaker designed for safeguarding motors up to 4 kW (at 400V). It provides reliable protection against overload, short-circuit, and phase failure, making it ideal for use in industrial control panels and motor starter assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category | Contactors and Starters |
| Part Number | 3RV2021-1JA10 |
| Subcategory |
Contactor & Starter Accessories & Parts
|
|
Degree of protection (IP)
|
IP20 |
| Depth | 97mm |
| Number of Poles | 3 |
| Overload Release Current Setting | 7 - 10A |
| Rated Operating Voltage | 690 - 690V |
| Rated Operation Power at AC-3, 230 V |
2.2kW
|
| Rated Operation Power at AC-3, 400 V |
4kW
|
| Rated Permanent Current Iu | 10A |
| Rated Short-Circuit Breaking Capacity lcu at 400 V, AC | 100kA |
| Switch Off Technique | Magnetic |
| Type of Electrical Connection of Main Circuit | Screw connection |
| Width | 45mm |
| Weight | 0.36 kgs |
Information About 3RV2021-1JA10
The Siemens 3RV2021-1JA10 is a motor protection circuit breaker from the SIRIUS series, designed to safeguard motors against overload, short-circuit, and phase failure conditions.
Key Features:
-
Adjustable Current Range: The breaker supports an adjustable current setting between 7 to 10 A, allowing for flexibility in various motor applications.
-
Operating Voltage: It operates within a voltage range of 220 to 690 V AC, accommodating different power systems.
-
Breaking Capacity: The device offers a breaking capacity of up to 100 kA at 400 V AC, ensuring reliable interruption of fault currents.
-
Trip Class: Class 10 trip characteristics provide rapid response to overload conditions, typically tripping within 10 seconds at six times the rated current.
-
Mounting and Connections: Designed for DIN rail mounting, it features screw-type terminals for secure electrical connections.
This circuit breaker is suitable for protecting motors in industrial settings, including manufacturing plants, conveyor systems, and HVAC equipment, where reliable motor protection is essential.
