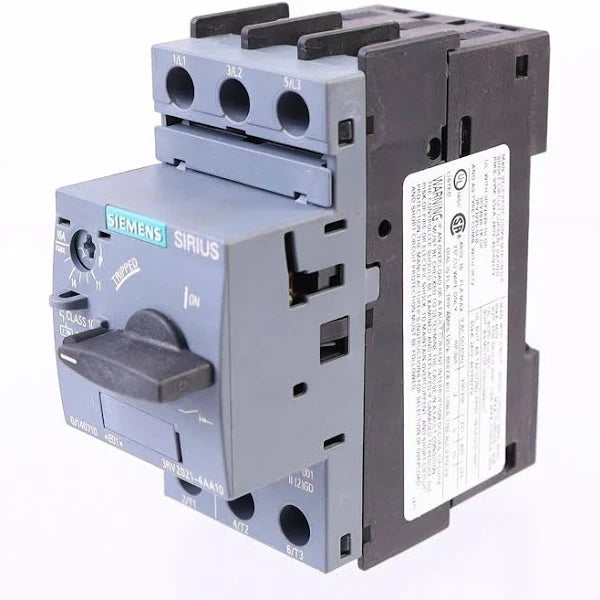

3RV2021-4AA10 | Siemens | Circuit-Breaker Screw Connection
3RV2021-4AA10 | Siemens | Circuit-Breaker Screw Connection

3RV2021-4AA10 | Siemens | Circuit-Breaker Screw Connection

Part #: 3RV2021-4AA10 Manufactured by: Siemens
Regular price
$124.00
Sale price
$124.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens 3RV2021-4AA10 circuit breaker is a motor protection device designed with a screw connection rated at 16A. It b...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 3RV2021-4AA10
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
3RV2021-4AA10 | Siemens | Circuit-Breaker Screw Connection
    3RV2021-4AA10 | Siemens | Circuit-Breaker Screw Connection
3RV2021-4AA10 | Siemens | Circuit-Breaker Screw Connection

Product Description P/N: 3RV2021-4AA10

Description / Specifications

Description

The Siemens 3RV2021-4AA10 is a circuit breaker designed for motor protection with a designated size of S0. Operating within the CLASS 10 classification, it features an A-release range of 10 to 16 amperes and an N-release rating of 208 amperes. The circuit breaker is equipped with screw terminals for secure connections. It exhibits standard switching capacity, ensuring reliable performance in motor protection applications.



Technical Specifications





Part #

3RV2021-4AA10

Manufacturer

SIEMENS

Brand

FURNAS ELECTRIC CO

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker size of the circuit-breaker S0

Product Extension Auxiliary Switch

Yes

Power Loss [W]

- at AC in hot operating state: 9.25 W

Insulation Voltage

- With degree of pollution 3 at AC rated value: 690 V

Surge Voltage Resistance

Rated value: 6 kV

Shock Resistance

According to IEC 60068-2-27: 25g / 11 ms Sinus

Mechanical Service Life (Operating Cycles)

- Of the main contacts: Typical 100,000

Electrical Endurance (Operating Cycles)

Typical 100,000

Reference Code

According to IEC 81346-2: Q

Substance Prohibitance (Date)

10/01/2009

SVHC Substance Name

Blei - 7439-92-1

Installation Altitude

Maximum 2,000 m

Ambient Temperature

- During operation: -20 ... +60 °C

Relative Humidity During Operation

10 ... 95 %

Number of Poles for Main Current Circuit

3

Adjustable Current Response Value

Current of the current-dependent overload release: 10 ... 16 A

Operating Voltage

- Rated value: 20 ... 690 V

Operating Frequency

Rated value: 50 ... 60 Hz

Operational Current

Rated value: 16 A

Proportion of Dangerous Failures

- With low demand rate according to SN 31920: 50 %

Failure Rate [FIT]

- With low demand rate according to SN 31920: 50 FIT

T1 Value for Proof Test Interval or Service Life

According to IEC 61508: 10 a

Protection Class IP on the Front

According to IEC 60529: IP20

Touch Protection on the Front

Finger-safe, for vertical contact from the front

Display Version for Switching Status

Handle





Information About 3RV2021-4AA10




The Siemens 3RV2021-4AA10 circuit breaker is designed with a screw connection rated for 16A. It belongs to the S0 size category, specifically engineered for motor protection purposes. The circuit breaker is classified under CLASS 10, indicating its performance characteristics.

Its A-release range spans from 10A to 16A, suitable for various motor applications. The N-release, on the other hand, is rated at 208A, providing additional protection against abnormal electrical conditions.

Featuring a screw terminal configuration, the circuit breaker offers standard switching capacity, ensuring reliable operation within its specified parameters. The screw connection design facilitates secure and efficient installation, contributing to the overall safety and stability of electrical systems.

As part of its technical specifications, the circuit breaker conforms to industry standards for motor protection and electrical safety. It offers a robust solution for safeguarding motors against overcurrent and short-circuit faults, enhancing the operational integrity of machinery and equipment.

The 3RV2021-4AA10 circuit breaker is engineered to meet the demands of industrial applications where reliable motor protection is essential. Its design emphasizes durability, efficiency, and compliance with relevant safety standards, making it a suitable choice for a wide range of electrical installations.

With its 16A rating and S0 size classification, the circuit breaker provides precise protection tailored to the requirements of motors and associated electrical systems. The incorporation of standard switching capacity ensures seamless integration into various control and power distribution setups, promoting operational efficiency and system reliability.



Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Siemens 3RV2021-4AA10 is a circuit breaker designed for motor protection with a designated size of S0. Operating within the CLASS 10 classification, it features an A-release range of 10 to 16 amperes and an N-release rating of 208 amperes. The circuit breaker is equipped with screw terminals for secure connections. It exhibits standard switching capacity, ensuring reliable performance in motor protection applications.



Technical Specifications





Part #

3RV2021-4AA10

Manufacturer

SIEMENS

Brand

FURNAS ELECTRIC CO

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker size of the circuit-breaker S0

Product Extension Auxiliary Switch

Yes

Power Loss [W]

- at AC in hot operating state: 9.25 W

Insulation Voltage

- With degree of pollution 3 at AC rated value: 690 V

Surge Voltage Resistance

Rated value: 6 kV

Shock Resistance

According to IEC 60068-2-27: 25g / 11 ms Sinus

Mechanical Service Life (Operating Cycles)

- Of the main contacts: Typical 100,000

Electrical Endurance (Operating Cycles)

Typical 100,000

Reference Code

According to IEC 81346-2: Q

Substance Prohibitance (Date)

10/01/2009

SVHC Substance Name

Blei - 7439-92-1

Installation Altitude

Maximum 2,000 m

Ambient Temperature

- During operation: -20 ... +60 °C

Relative Humidity During Operation

10 ... 95 %

Number of Poles for Main Current Circuit

3

Adjustable Current Response Value

Current of the current-dependent overload release: 10 ... 16 A

Operating Voltage

- Rated value: 20 ... 690 V

Operating Frequency

Rated value: 50 ... 60 Hz

Operational Current

Rated value: 16 A

Proportion of Dangerous Failures

- With low demand rate according to SN 31920: 50 %

Failure Rate [FIT]

- With low demand rate according to SN 31920: 50 FIT

T1 Value for Proof Test Interval or Service Life

According to IEC 61508: 10 a

Protection Class IP on the Front

According to IEC 60529: IP20

Touch Protection on the Front

Finger-safe, for vertical contact from the front

Display Version for Switching Status

Handle





Information About 3RV2021-4AA10




The Siemens 3RV2021-4AA10 circuit breaker is designed with a screw connection rated for 16A. It belongs to the S0 size category, specifically engineered for motor protection purposes. The circuit breaker is classified under CLASS 10, indicating its performance characteristics.

Its A-release range spans from 10A to 16A, suitable for various motor applications. The N-release, on the other hand, is rated at 208A, providing additional protection against abnormal electrical conditions.

Featuring a screw terminal configuration, the circuit breaker offers standard switching capacity, ensuring reliable operation within its specified parameters. The screw connection design facilitates secure and efficient installation, contributing to the overall safety and stability of electrical systems.

As part of its technical specifications, the circuit breaker conforms to industry standards for motor protection and electrical safety. It offers a robust solution for safeguarding motors against overcurrent and short-circuit faults, enhancing the operational integrity of machinery and equipment.

The 3RV2021-4AA10 circuit breaker is engineered to meet the demands of industrial applications where reliable motor protection is essential. Its design emphasizes durability, efficiency, and compliance with relevant safety standards, making it a suitable choice for a wide range of electrical installations.

With its 16A rating and S0 size classification, the circuit breaker provides precise protection tailored to the requirements of motors and associated electrical systems. The incorporation of standard switching capacity ensures seamless integration into various control and power distribution setups, promoting operational efficiency and system reliability.



Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
