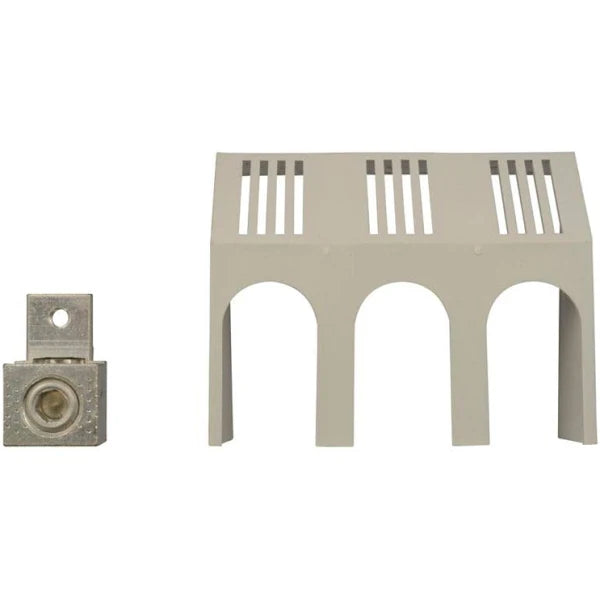

3TA225FDK | Eaton 225A Aluminum Single-Barrel Lug Kit For Series C Breaker Frames
- Regular price
- $194.00
- Sale price
- $194.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3TA225FDK
Description
The Eaton 3TA225FDK is a field-installable aluminum lug terminal kit designed for secure high-current connections on Series C molded case circuit breakers. It supports conductor sizes up to 300 kcmil and provides a durable single-barrel design suitable for demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Electrical Products |
| Part Number | 3TA225FDK |
| Subcategory | Lug / Connector |
| Family | Series C |
| Type | 3TA |
| Ampacity | 225 A |
| MCM Size | Up to 300 kcmil |
| Barrels | 1 |
| Metal Type | Aluminum |
| Suitable Frame Types | FB, FD, HFD, FDC, FG, HFDDC, E2F, E2FM |
| Installation | Field-Installable |
| Package Quantity | Three Terminals per Kit |
| Application | Molded Case Circuit Breaker Line/Load Lugs |
Information About 3TA225FDK
The 3TA225FDK is part of Eaton’s Series C accessory lineup, engineered to provide secure and reliable termination for high-capacity molded case circuit breakers. Its aluminum construction offers strong conductivity and resistance to corrosion, making it well suited for industrial and commercial power distribution environments. With support for up to 300 kcmil conductors and compatibility with multiple breaker frames, the kit ensures broad installation flexibility across new construction and retrofit projects. The single-barrel configuration provides a stable clamping surface for larger conductors, improving connection integrity and long-term performance.
Key Features
- 225A single-barrel lug kit: Designed for high-capacity breaker terminations.
- Supports up to 300 kcmil conductors: Suitable for large copper or aluminum wiring.
- Field-installable design: Enables quick and efficient installation on site.
- Aluminum construction: Offers strength, conductivity, and corrosion resistance.
- Compatible with multiple Series C frames: Fits FB, FD, HFD, FDC, FG, HFDDC, E2F, and E2FM breakers.
- Three-lug package: Provides complete termination capability for three-phase breakers.
- Secure mechanical clamping: Ensures reliable long-term conductor retention.
- Ideal for industrial power systems: Supports heavy-duty distribution and equipment feeds.
The 3TA225FDK delivers the reliability and precision required for secure high-ampacity terminations on Eaton Series C molded case circuit breakers.
